- Product type: Wood stove with thermoplate
- Fuel: Wood
- Nominal output: 5.5 kW
- Heat output to room: 5.7 kW
- Efficiency: 80%
- Energy class: A
- Product dimensions (H × W × D): 890 × 378 × 316 mm
- Net weight: 74 kg
- Safety distances side/rear/front: 200 / 200 / 800 mm
- Flue connection: Rear Ø120 mm
- External air supply: No
- Colour: Black
- Seasonal efficiency: 70%
- Gross weight: 79 kg
- Packaging dimensions (H × W × D): 942 × 400 × 400 mm
- VillaHome SKU: KAM-1002-02
- EAN/GTIN: 8586019582055
- CE marking: Yes, according to the manufacturer's declaration of performance (DoP)

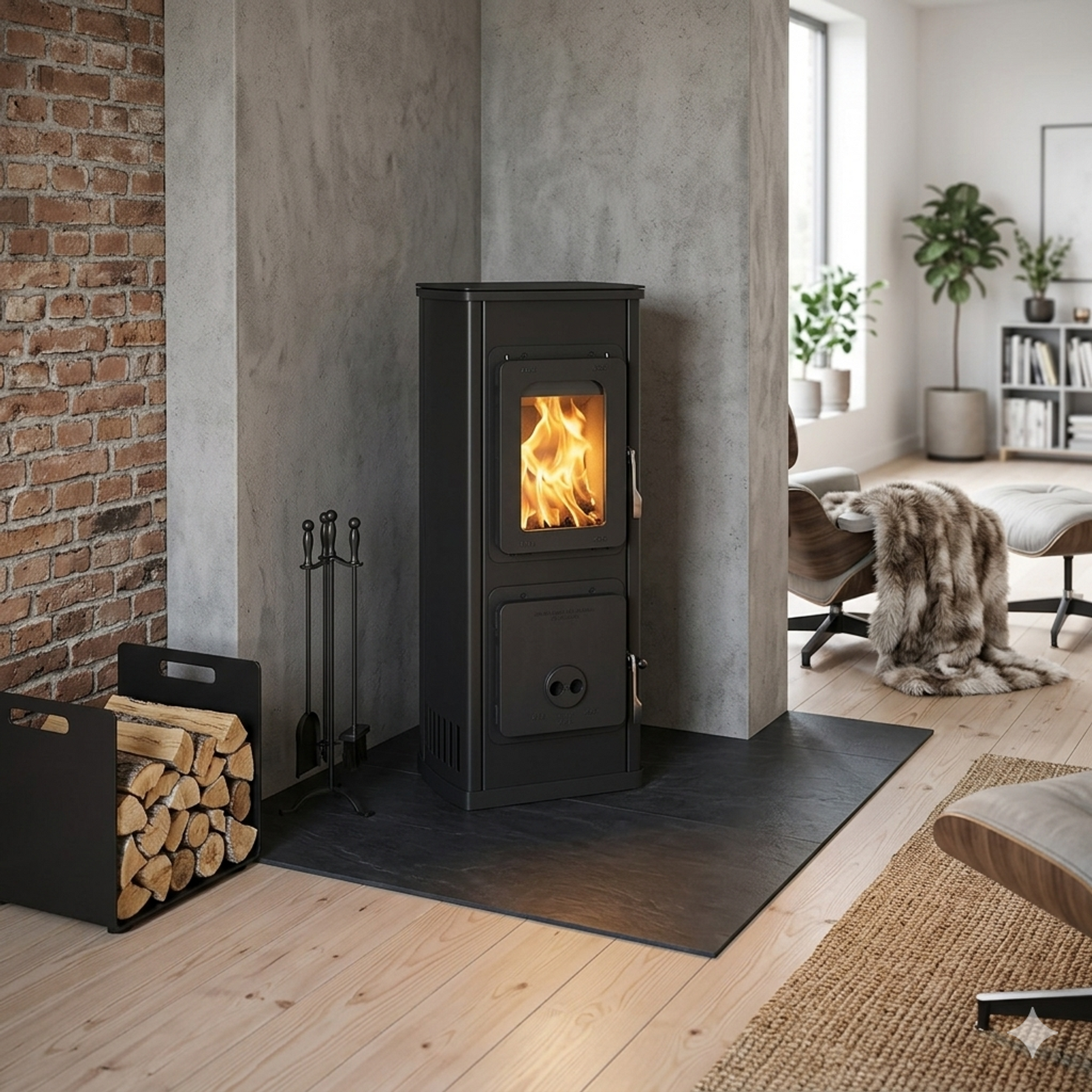

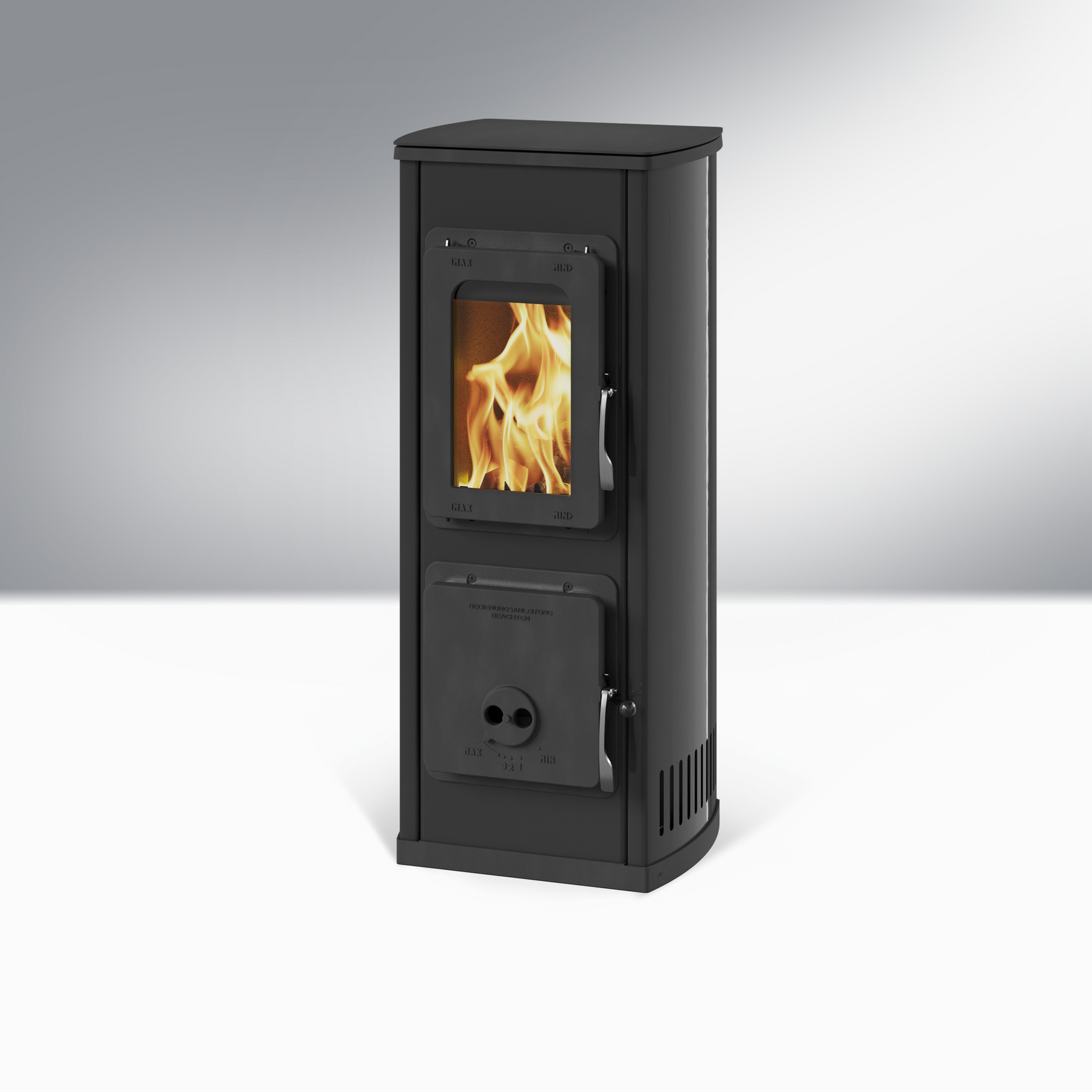

The Thorma Milano II AT is a slim black wood stove with an integrated hot plate on top. The width of 378 mm keeps the front compact, while the top plate gives the stove a practical function beyond heating the room itself.
The hot plate can be used for simple warming or for heating water in a heat-resistant vessel. The Milano II AT has a nominal output of 5.5 kW, 80% efficiency, and a rear flue connection Ø120 mm.
The model lacks external air supply according to the supplier's current product data. This makes the room's air supply and the interaction with the ventilation extra important when planning the installation, especially in airtight houses.
Installation
Install the Milano II AT according to THORMA's manual and applicable Swedish regulations. The stove has a rear connection Ø120 mm and lacks external air supply according to the verified product data. Follow the safety distances: 200 mm on the sides, 200 mm at the rear, and 800 mm in front of the glass.
Combustion air and flue
Plan the installation so that the room has sufficient combustion air and that the flue is airtight, clean, and correctly sized. Mechanical exhaust ventilation can affect the draft and must be considered in the installation assessment.
First firing
Start with smaller amounts of wood and gradually increase the temperature. Ventilate the room if the surface treatment gives off an odor during the first firings.
Firing and hot plate
Use dry, untreated wood and follow the manual's air control instructions. The hot plate can be used for simple food warming or heating water in a suitable container. The plate and other metal parts become very hot during operation.
Care and safety
Let the stove cool before cleaning. Keep the hot plate clean and dry, check the glass, seals, and flue paths, and have the chimney swept according to local requirements. Use heat-resistant gloves when handling items near hot surfaces.
