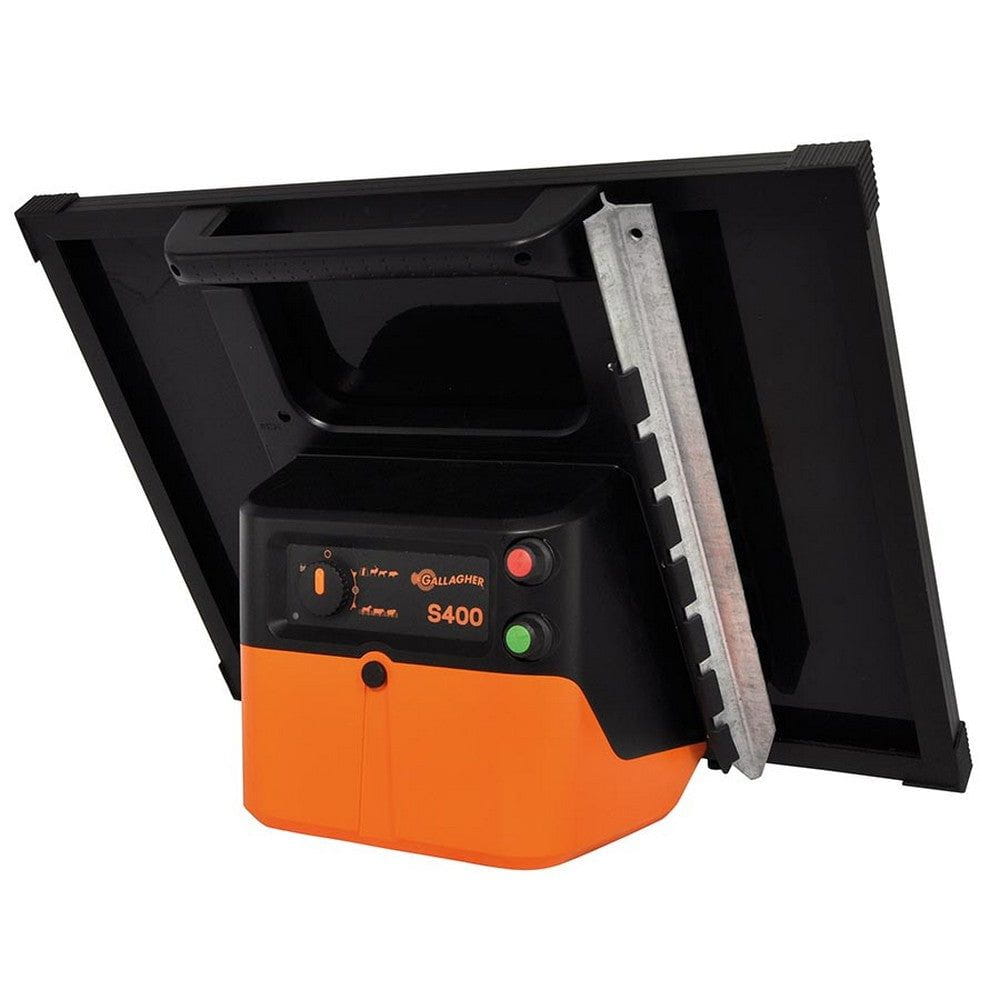

Gallagher S400 Solar Panel Energizer including battery (2x 12 V - 7.2 Ah) for Electric Fences.

The S400 is the most powerful solar energizer on the market. With its 40 W solar panel, the S400 can power fences up to 30 km. Even after a week without direct sunlight, the electric fence energizer has enough power to electrify the fence. The S400 is perfect for temporary fences with a rather large area. This ensures the fence is sufficiently energized everywhere, without the need for a power outlet nearby!

Advantages:

Works for 3 weeks without sun
Super strong, impact-resistant, waterproof casing
Quick and easy to install
Built-in lightning protection
7-year warranty on all electric fence energizers

Specifications:

Animals: Horse, Cattle, Sheep, Wild animals, Goats
Max. output voltage (V): 9800
Charging energy (J): 4.0
Maximum impulse energy (J): 3.0
Solar panel (Watt): 40
Number of earth stakes required: 4 x 1 m
Without vegetation (km) (recommendation): 30
Light vegetation (km) (recommendation): 16
Heavy vegetation (km) (recommendation): 7
Fence area (ha) (recommendation): 16
Maximum output voltage (V): 9600
Voltage at 500 Ohm load (V): 6000
Load voltage 100 Ohm (V): 2400
Charging energy (J): 4
Maximum pulse energy (J): 3.1
Single wire - ideal conditions (km): 65
Distance with multiple wires (2) - ideal conditions (km): 30
Distance with multiple wires (2) - Light vegetation (km): 16
Distance with multiple wires (3) - Recommended (km): 7
Grid boundary (Ha/Acre): 16/40
Average power consumption Battery (V/mA): 12/321
Operating days without daylight: ^10
Unit on/off indicator: Yes
Battery warning light (indicator): Yes
Battery saving mode: Yes
Automatic protection when battery is discharged: Yes
Half power mode: No
Wild mode: Yes
Night saving mode: Yes
Normal - slow pulse mode: No
Mains connection set included: No
Solar panel (Watt): 40
Rechargeable battery included: 2
Recommended battery (minimum advice): VRLA 12V-7.2Ah
Recommended replacement battery (art.no.): GAL-000442 / GAL-033931
Recommended number of earth stakes (not included): 4x1m
Suitable stand (height): GAL-730003 (50 cm) / GAL-007509 (88 cm)
European standard: EN60335- 2-76-A11
IPX rating: IPX4
Warranty: 3 years
Dimensions (lxwxh mm): 660x305x472
Weight (kg): 14.4
Color: Black/Orange
Display (LED/LCD): No
Vegetation: Normal
Voltage: 12
Recommended without vegetation (km): 21-30
