- Product type: Cast iron stove
- Model: Tara
- Fuel: Wood
- Nominal heat output: 6 kW
- Maximum heat output: 8 kW
- Efficiency: 84 %
- Seasonal efficiency: 74 %
- Energy class: A+
- Dimensions (W × H × D): 383 × 858 × 377 mm
- Weight: 85 kg
- Heating volume: 120 m³
- Flue connection: Ø120 mm
- Firebox opening (W × H): 200 × 304 mm
- Firebox (W × H × D): 355 × 300 × 260 mm
- Maximum log length: 33 cm
- External air supply: Ø80 mm
- Clearance to combustible materials – rear / side / front: 400 / 400 / 1000 mm
- CO: 1093 mg/m³ at 13 % O₂
- NOx: 106 mg/m³
- COV: 70 mg/m³
- Particulate matter: 37 mg/m³
- Flue gas temperature: 281 °C
- Minimum flue draft: 11 Pa
- Flue gas flow: 4.8 g/s
- Material: Cast iron
- Surface treatment: Heat-resistant paint
- Standard: EN 16510-2-1:2022
- SKU: KAM-031331
- EAN: 3859892186869
- CE marking: Yes. Documentation: declaration of performance (DoP)

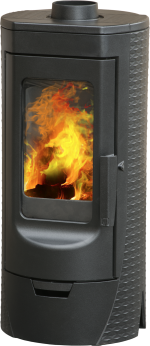

The Plamen Tara is a narrow cast iron stove with a rounded front, textured sides and a tall glass door that lets the fire be clearly seen despite the compact format. The dark, heat-resistant painted surface gives a different look than Plamen's enameled models and makes Tara an option where there is limited space along the wall.
The firebox is adapted for wood logs up to 33 cm. Under the glass door is the ash management, and the combustion air can be supplied from the outside via a separate connection. The nominal output is 6 kW, but how much heat is needed depends on the size of the room, insulation and ventilation. Therefore, choose Tara for the combination of narrow shape and clear fire view, not solely based on the stated heating volume.
The painted surfaces of the cast iron should be handled carefully according to the manual. Before installation, the chimney connection, floor protection and safety distances need to be checked against the placement in the room. Product dimensions and connections are gathered under specifications.
Installation
Install the stove according to the current Plamen manual and applicable Swedish regulations. Kaminexperten specifies a minimum distance of 400 mm behind, 400 mm to the side, and 1000 mm in front of combustible material. The base must be level and stable, and a prescribed hearth plate must be used on combustible flooring. The flue connection is Ø120 mm and must be installed tightly.
Combustion air and chimney
External air supply can be connected via Ø80 mm. Keep the air passage clear and ensure that the ventilation does not counteract the chimney draft. Check that the chimney is clean, tight, and correctly sized. Mechanical exhaust ventilation can create negative pressure and must be taken into account when assessing the installation.
First firing
Start with smaller amounts of wood and heat the cast iron gradually to avoid unnecessary thermal stress. Ventilate the room, as paint, seals, and other materials may emit odors when the stove is heated for the first time.
Fuel and combustion
Use dry, untreated wood and follow the manual's recommended wood amounts and air control settings. Damp wood results in poorer combustion and more soot. Keep the door closed during normal operation and avoid overfiring.
Care and safety
Allow the stove to cool completely before cleaning. Empty the ash regularly and check the glass, door seals, grates, firebox parts, and flue passages. The chimney must be swept at the prescribed intervals, and spare parts must be original or verified compatible.
