- Product type: Fireplace insert
- Series/model: Baltic 700
- Fuel: Wood
- Nominal output: 10.5 kW
- Output range: 7–14 kW
- Efficiency: 78%
- CO emissions: 0.06%
- NOx: 128 mg
- OGC: 47 mg
- Particulates: 27 mg
- Heating volume: 229 m³
- Heating area: 92 m²
- Dimensions (W × H × D): 700 × 620 × 450 mm
- Firebox (W × H × D): 596 × 393 × 337 mm
- Weight: 97 kg
- Max log length: 65 cm
- Flue connection: Ø150 mm
- Features: Ventilation, Eolo, Perfect Combustion, double combustion, glass cleaning system, cleaning access
- Supplier part number: 3046300000
- VillaHome SKU: KAM-3046300000
- CE marking: Yes

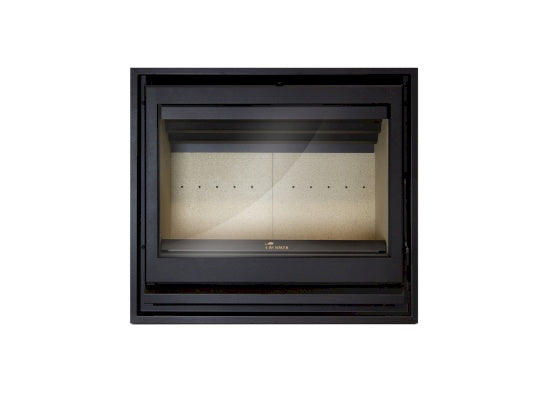

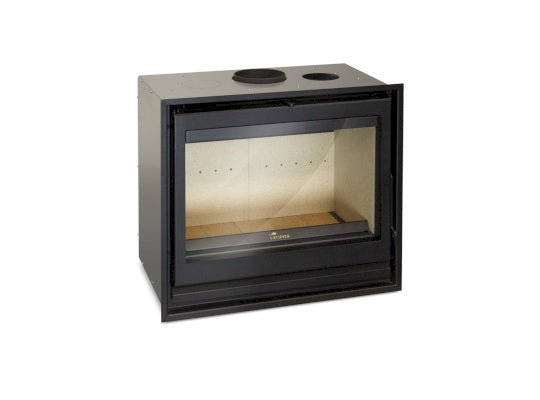

The Lacunza Baltic 700 is a fireplace insert with a taller glass front and a more vertical appearance than many of Lacunza's low, wide models. The black front keeps the design clean and allows the fire to dominate within a built-in surround.
The model combines Eolo ventilation with double combustion, a glass cleaning system, and service access to the flue channels. The firebox accommodates logs up to 65 cm, and the nominal heat output is 10.5 kW.
The taller glass surface makes the Baltic 700 an ideal choice when the fire needs a more vertical presence in the wall than a classic low insert. Eolo ventilation means that the air ducts and service access must be built in from the start, ensuring that heat distribution and maintenance remain effective even after the surround is completed.
Installation and Built-in Installation
Install Baltic 700 according to Lacunza's manual and applicable regulations. The surround must provide the correct safety clearance, functional convection openings, and access to the flue passages for sweeping and servicing.
Burning and Ventilation
Use dry wood and follow the manual's instructions for fuel quantity and air control. The Eolo ventilation air passages must be kept clear so that heat can be distributed throughout the room.
Care and Servicing
Allow the insert to cool completely before cleaning. Clean the glass, ash compartment, and flue passages regularly, and handle the fireplace trim with care. Inspect the chimney and connections according to the applicable service and sweeping intervals.
First Burn
Start with smaller amounts of wood and gradually increase the temperature so that the fireplace, seals, and surface finish are gradually seasoned in a controlled manner. Ventilate the room if materials or paint emit odors during the first burns.
Combustion Air and Chimney
Size the chimney according to the model's flue connection and check whether the specific variant has external air supply. Air ducts and any ducted hot air must be planned before the surround is closed and must remain accessible for inspection.
