- Product type: Cast iron insert with ventilation
- Model: IF 800
- Fuel: Wood
- Nominal output: 9 kW
- Output range: 6–12 kW
- Efficiency: 76 %
- CO emissions: 0.09 %
- NOx: 97 mg
- OGC: 108 mg
- Particulates: 25 mg
- Heating volume: 200 m³
- Heating area: 80 m²
- Dimensions: approximately 826 × 518/584 × 495 mm
- Firebox (W × H × D): 580 × 290 × 350 mm
- Weight: 155 kg
- Max log length: 55 cm
- Flue connection: Ø200 mm
- Exterior material: Cast iron
- Firebox lining: Cast iron and refractory material
- Ventilation: Centrifugal fan
- Features: Speed control, Perfect Combustion, double combustion, glass cleaning system, cleaning access
- VillaHome SKU: KAM-304420000000
- CE marking: Yes. Documentation: declaration of performance (DoP)
- EAN: 3000000123966

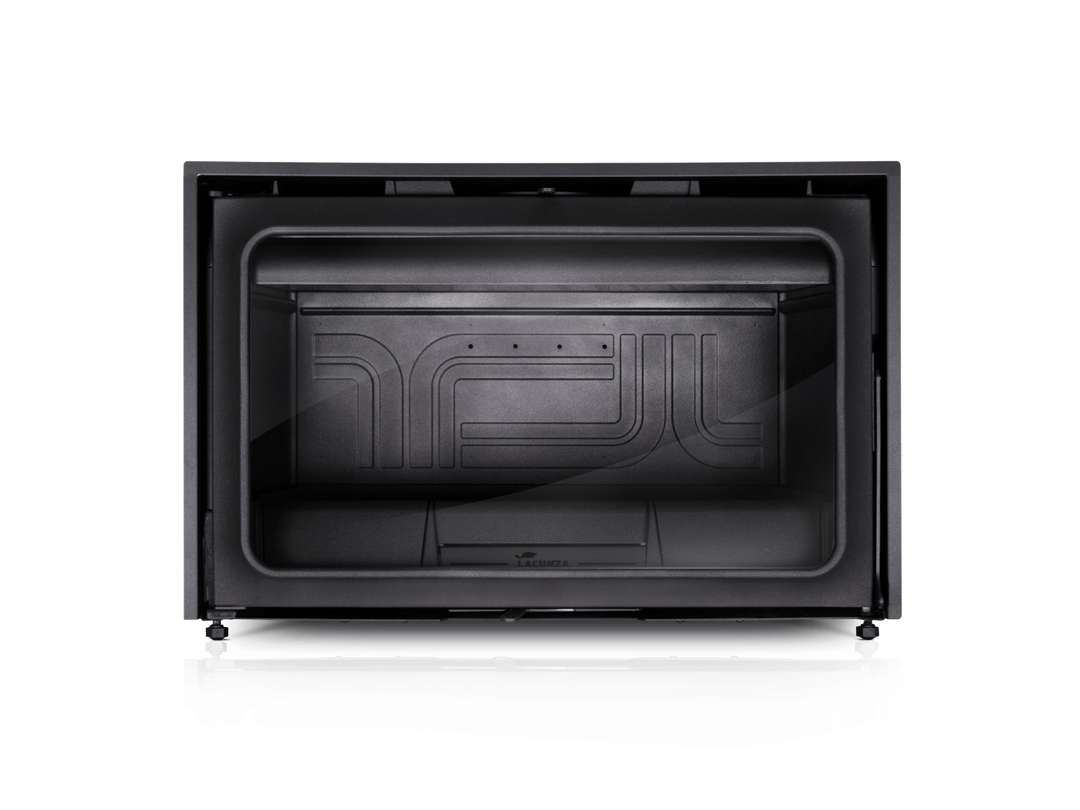

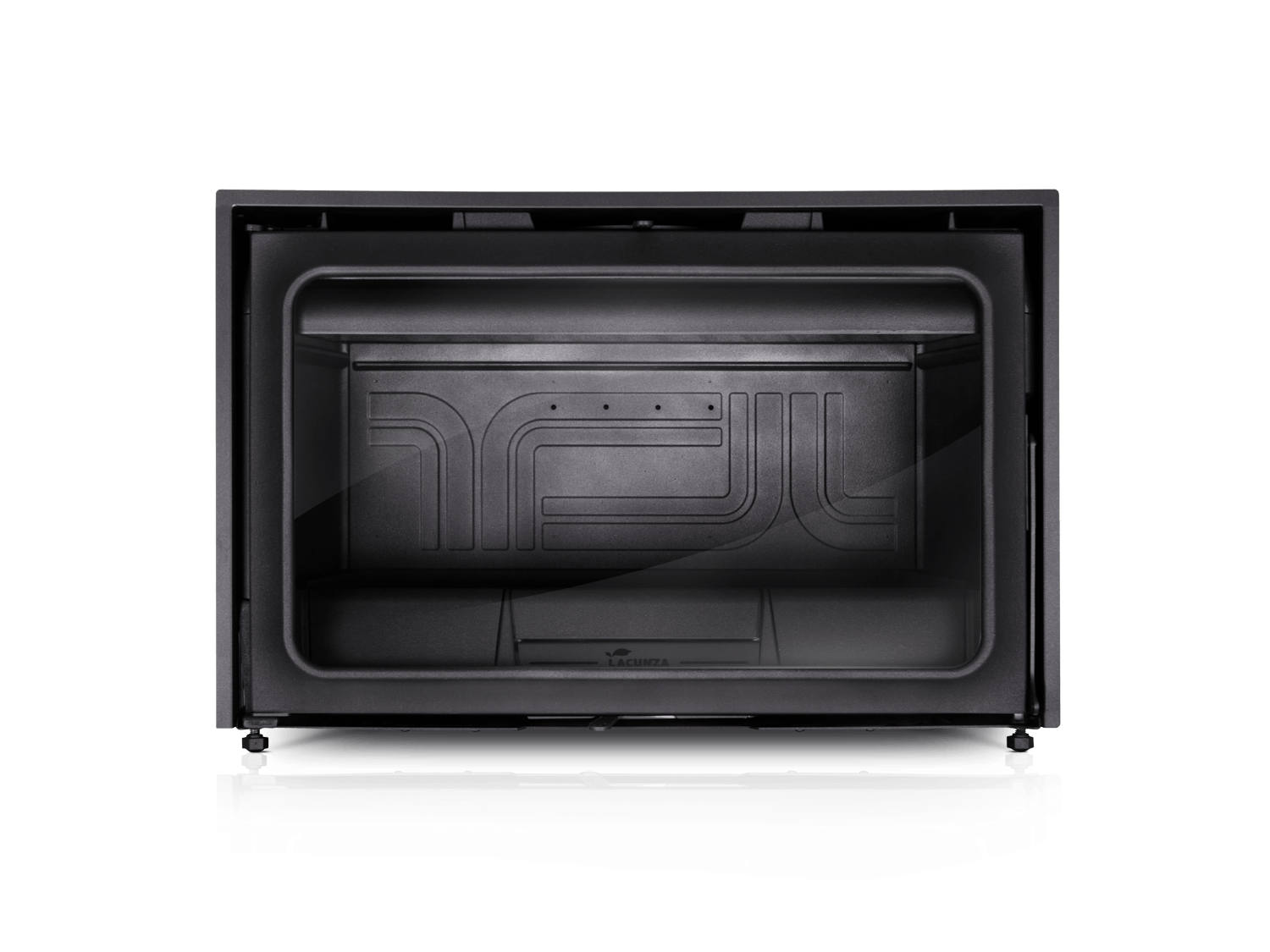

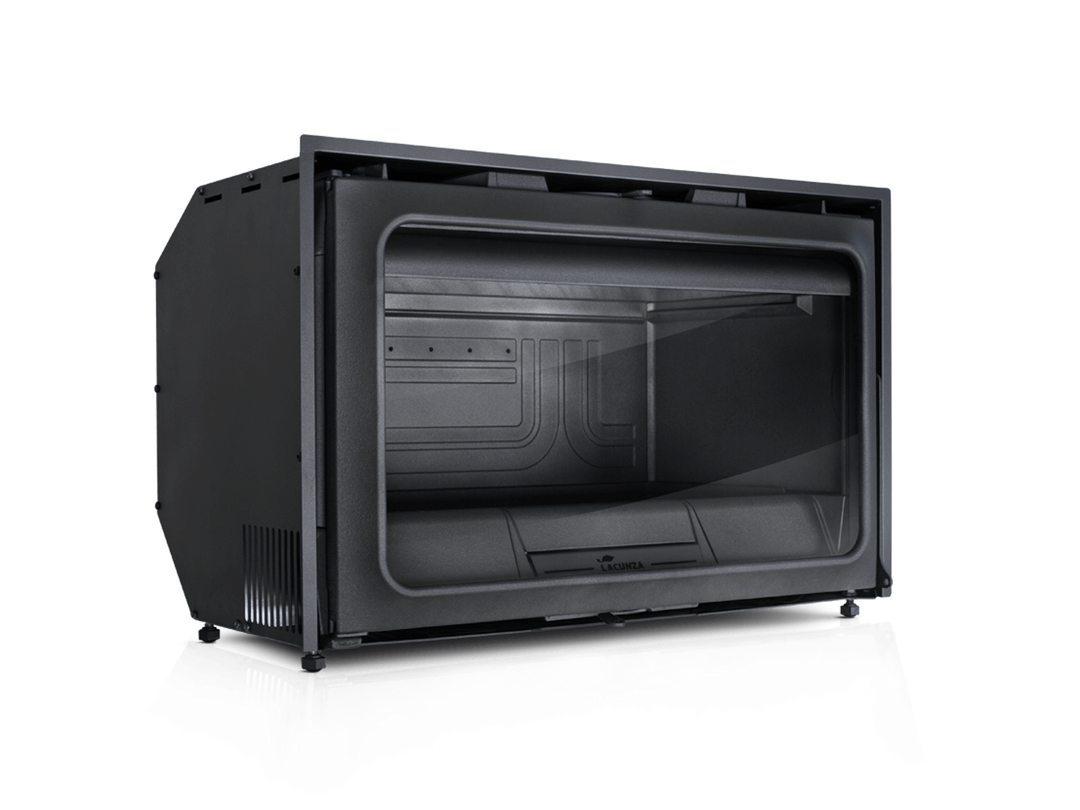

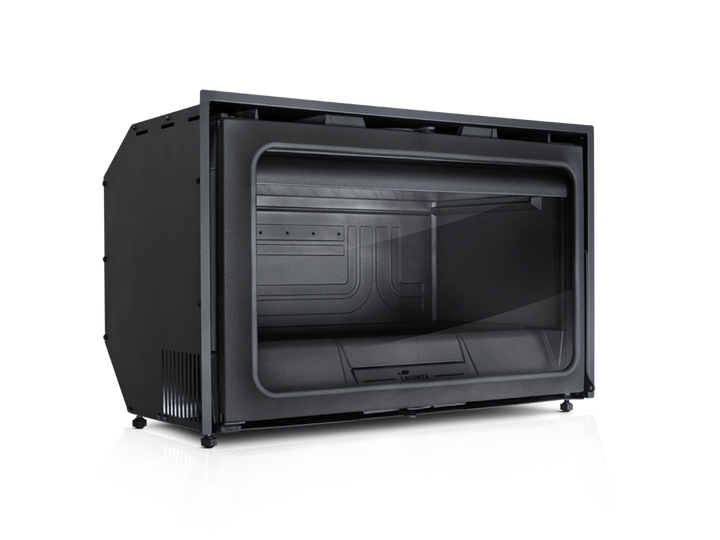

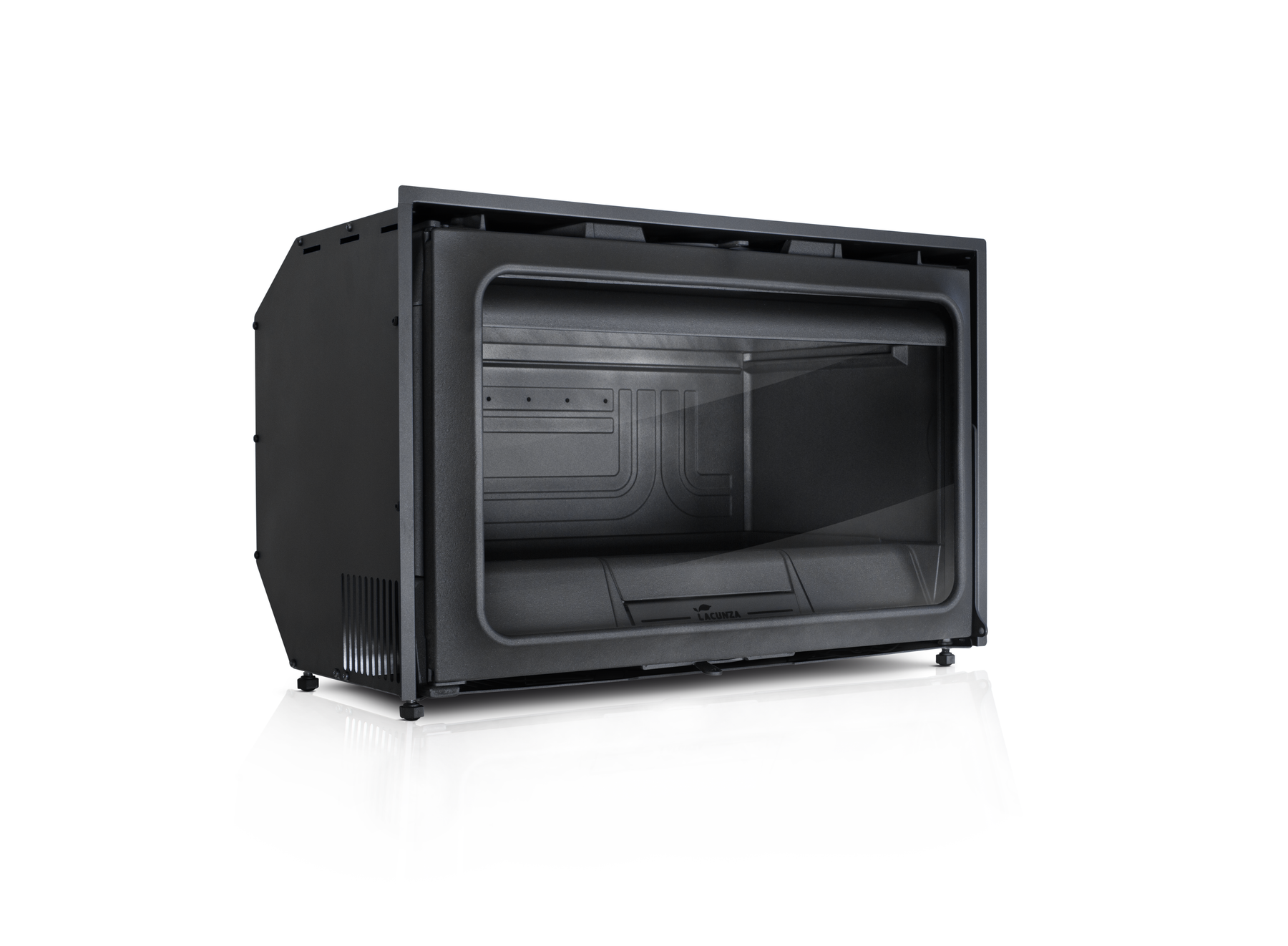

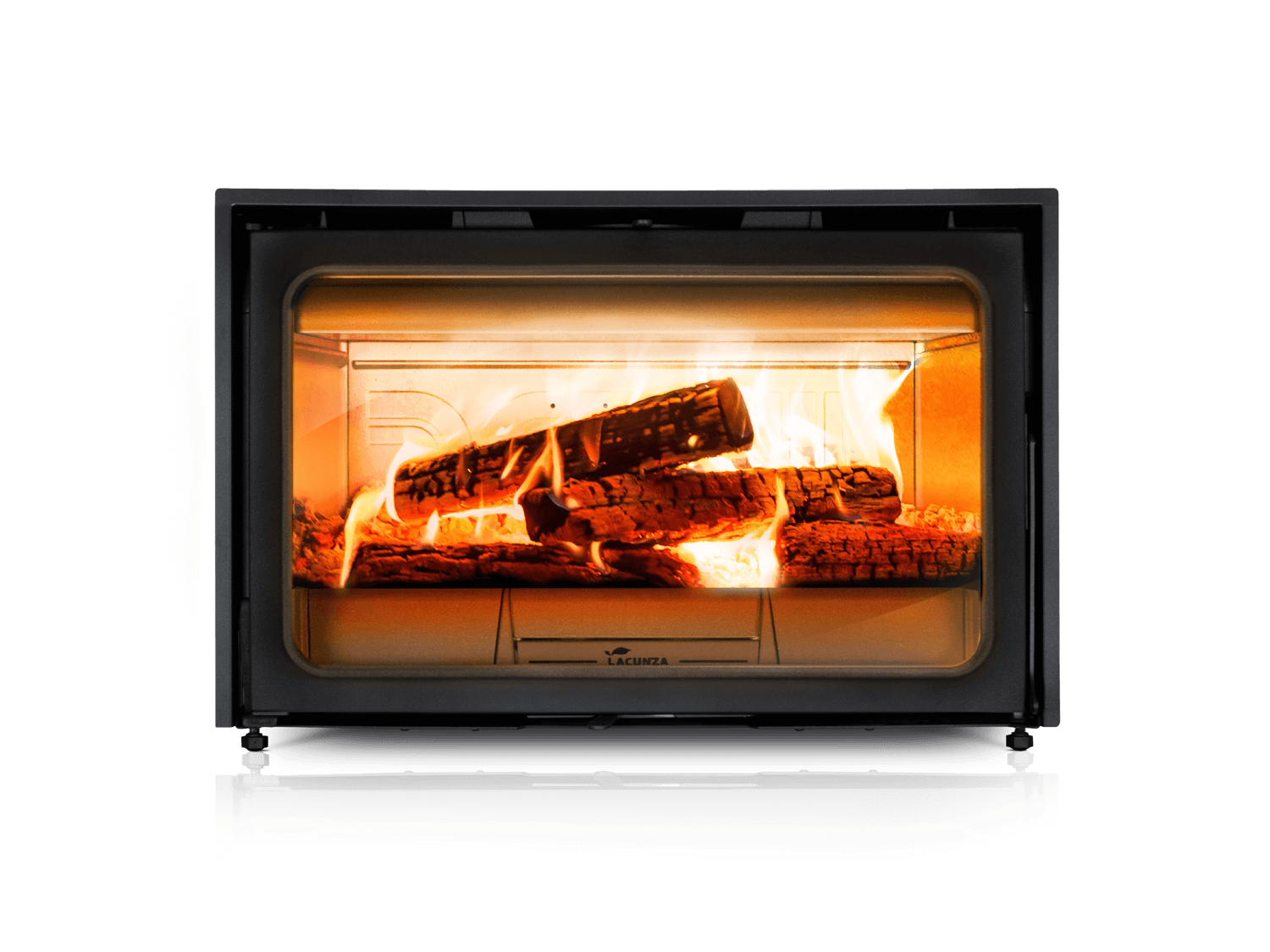

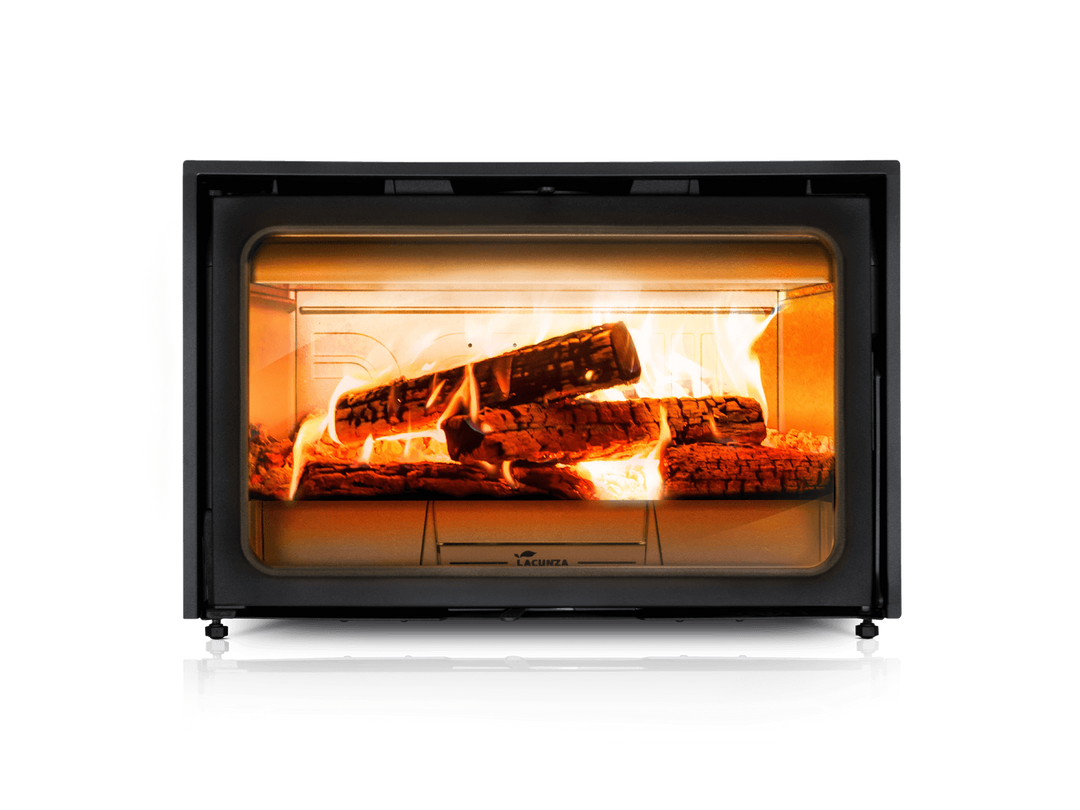

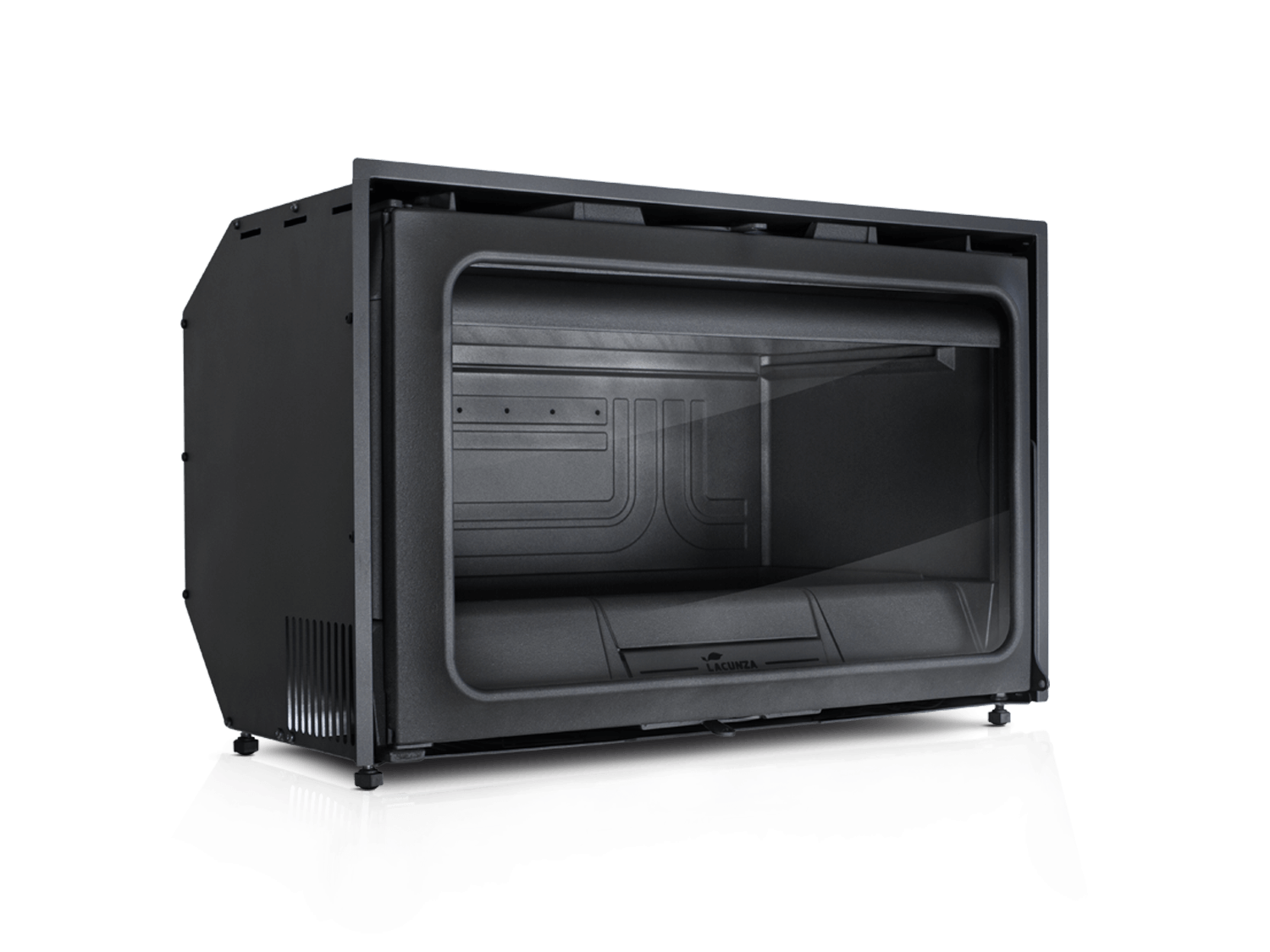

The Lacunza IF 800 is a wide cast iron insert with a large glass front and a firebox lined with cast iron and refractory material. Its solid cast iron body and more traditional material finish distinguish it from the steel inserts in the Adour and Loire series.
The model features fan-assisted air circulation to distribute heat from the insert. Dual combustion and glass air wash contribute to a continuous burn, while access to the flue passages is important when the insert needs to be swept. Compared to the K2 800, the IF 800 has a different internal firebox design; therefore, a grill grate and external remote control should not be assumed to be included simply because the models have similar dimensions.
The IF 800 is supplied as a built-in insert without a finished frame. Check the flue connection, convection openings, safety clearances, and space for cleaning and servicing before installation. Choose the IF 800 if you want a cast iron insert with a wide viewing area and active air distribution.
Installation and Built-in Installation
The insert must be installed according to Lacunza's manual and applicable Swedish regulations. The surround must provide the correct safety clearances, convection openings, and access to the flue connection, fans/turbines, and service points. The built-in installation must not block the air circulation required by the model.
Combustion Air and Chimney
Size the chimney according to the model's flue connection and check whether the specific model has external air supply. Air ducts and any ducted hot air must be planned before the surround is closed and must remain accessible for inspection.
First Burn
Start with smaller amounts of wood and gradually increase the temperature so that the firebox, seals, and surface finish are gradually heated in a controlled manner. Ventilate the room if materials or paint emit odors during the first burns.
Burning and Air Control
Use dry, untreated wood and follow Lacunza's manual for wood quantity and air control. Double combustion and glass cleaning work best when the airways are kept clear and the firebox is not overloaded. Open the door slowly when adding wood and avoid overfiring.
Care and Service
Allow the insert to cool completely before cleaning. Keep the glass, ash compartment, firebox lining, and flue passages clean. On models with a turbine or fan, the air intakes must also be kept clear. Check the seals and flue connection regularly and have the chimney swept according to the applicable intervals.
