- Product type: Cast iron insert with ventilation
- Model: IN 700
- Fuel: Wood
- Nominal heat output: 11 kW
- Heat output range: 8–14 kW
- Efficiency: 75%
- CO emissions: 0.10%
- NOx: 97 mg
- OGC: 67 mg
- Particulate matter: 31 mg
- Heating volume: 244 m³
- Heating area: 98 m²
- Dimensions (W × H × D): 700 × 522 × 502 mm
- Firebox (W × H × D): 560 × 250 × 400 mm
- Weight: 135 kg
- Max. log length: 55 cm
- Flue connection: Ø200 mm
- Exterior material: Cast iron
- Firebox material: Cast iron
- Ventilation: Axial fan with speed control
- Features: Perfect Combustion, glass cleaning system, cleaning access
- VillaHome SKU: KAM-304110000000
- CE marking: Yes. Documentation: declaration of performance (DoP)

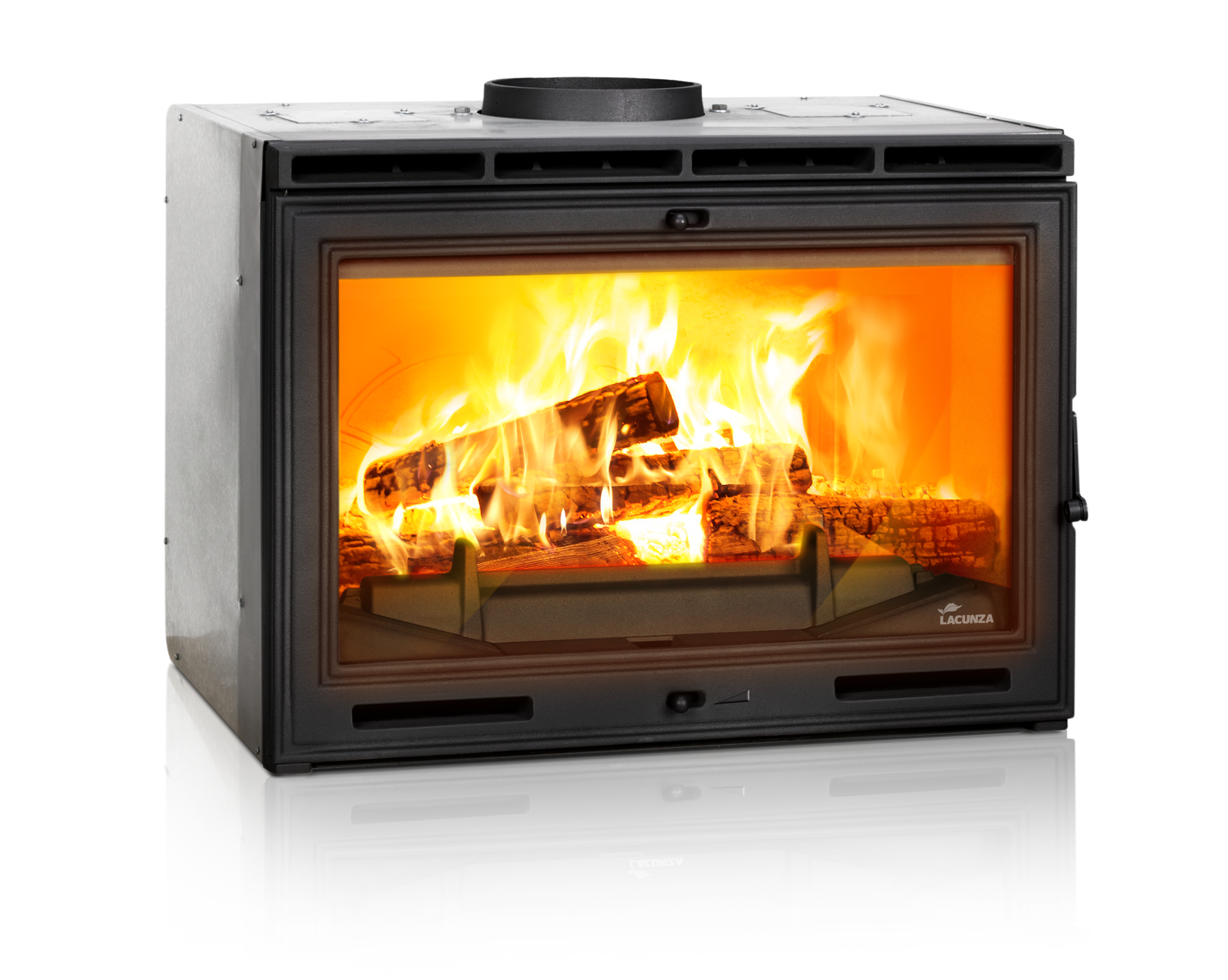

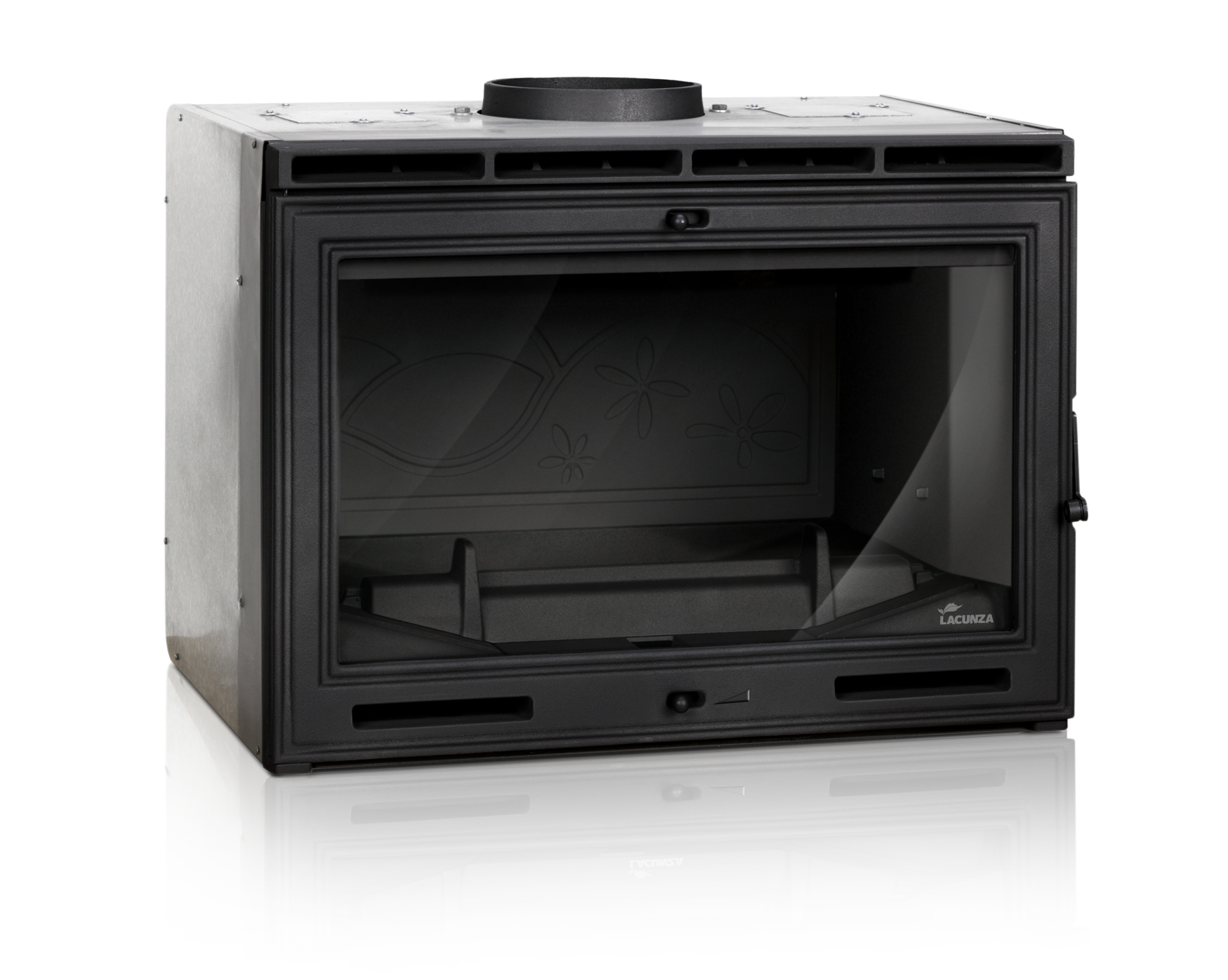

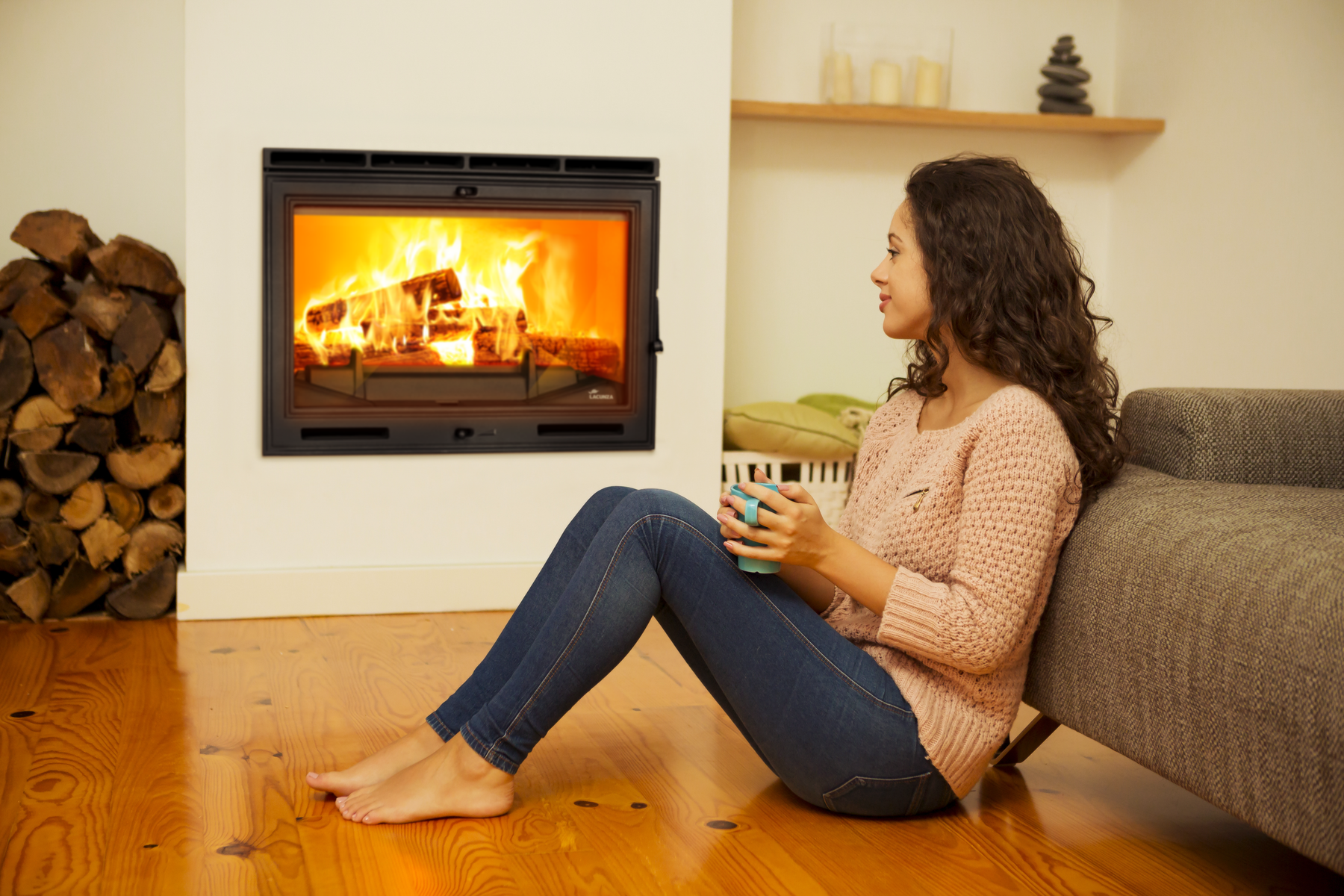

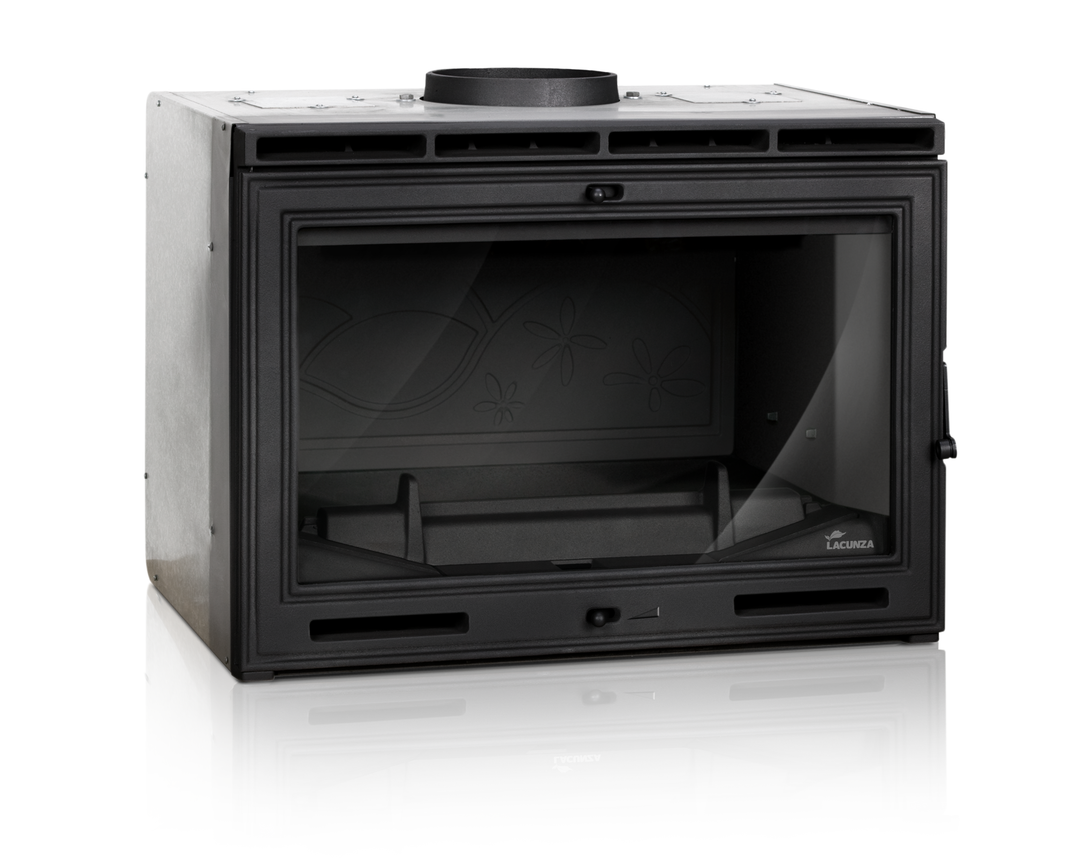

The Lacunza IN 700 is a wood-burning insert with a cast iron body and firebox. The straight glass front fits both an older open fireplace being converted and a new surround, when you want a clear view of the fire without an excessively wide insert.
The IN 700 has an adjustable axial fan that helps distribute heated air from the firebox further into the room. The ash drawer facilitates ash management, and glass air washing helps keep the view of the fire clearer. Compared to larger and more panoramic steel cassettes, it is primarily the cast iron construction and the compact built-in format that distinguish the model.
The insert is not a freestanding fireplace with a finished mantel. Check the chimney, the dimensions of the opening, the air ducts, the fan's electrical connection, and access for sweeping before completing the installation. Choose the IN 700 when cast iron and fan-assisted heat distribution are important for the installation.
Installation and Built-in Installation
The IN 700 is a wood-burning cast iron insert that must be built in according to Lacunza's instructions. Check that the base can support the weight and that the framing provides the correct clearance, unobstructed air openings, and access to the flue and fan for servicing.
Fan and Ventilation
The model has an axial fan with adjustable airflow. Leave the necessary openings unobstructed and plan the electrical connection so that the fan can be cleaned and maintained after installation. Also check that the combustion air and chimney are compatible with the building's ventilation.
Burning
Burn dry, untreated wood and stick to the wood quantity recommended in the manual. Place the logs carefully in the cast iron firebox and avoid overloading it. The glass air wash can reduce soot buildup but does not replace cleaning.
Cleaning and Inspection
Allow the insert to cool completely before emptying the ash drawer or cleaning the glass and firebox. Keep the fan's airways free from dust, check the seals and for rust, and ensure that the flue passages can be swept at the required intervals. During the first firing, the surface treatment may emit an odor; ventilate and gradually increase the firing according to the manual.
