- Product type: Cast iron insert with ventilation
- Model: K2 800
- Fuel: Wood
- Nominal output: 8.5 kW
- Output range: 6–11 kW
- Efficiency: 78%
- CO emissions: 0.07%
- NOx: 108 mg
- OGC: 50 mg
- Particulates: 18 mg
- Heating volume: 189 m³
- Heating area: 76 m²
- Dimensions: approximately 794 × 518/584 × 463 mm
- Firebox (W × H × D): 600 × 295 × 220 mm
- Weight: 150 kg
- Max wood length: 55 cm
- Flue connection: Ø200 mm
- Exterior material: Cast iron
- Firebox lining: Vermiculite
- External air supply: Yes
- Ventilation: Two centrifugal fans
- Features: Double combustion, glass cleaning system, cleaning access
- Included according to the supplier: Grill grate and external speed control
- VillaHome SKU: KAM-304430000000
- CE marking: Yes. Documentation: declaration of performance (DoP)
- EAN: 3000000123973

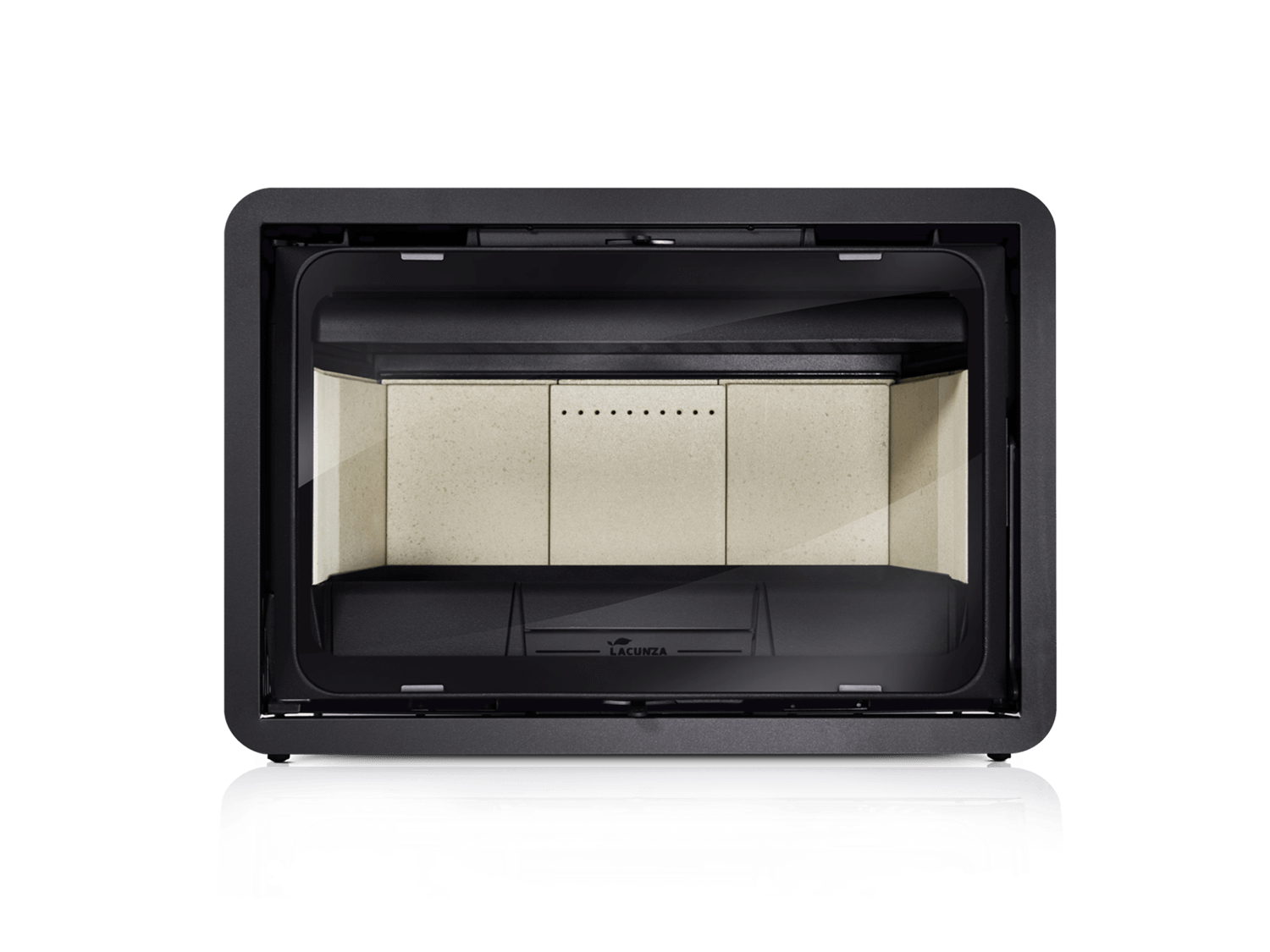

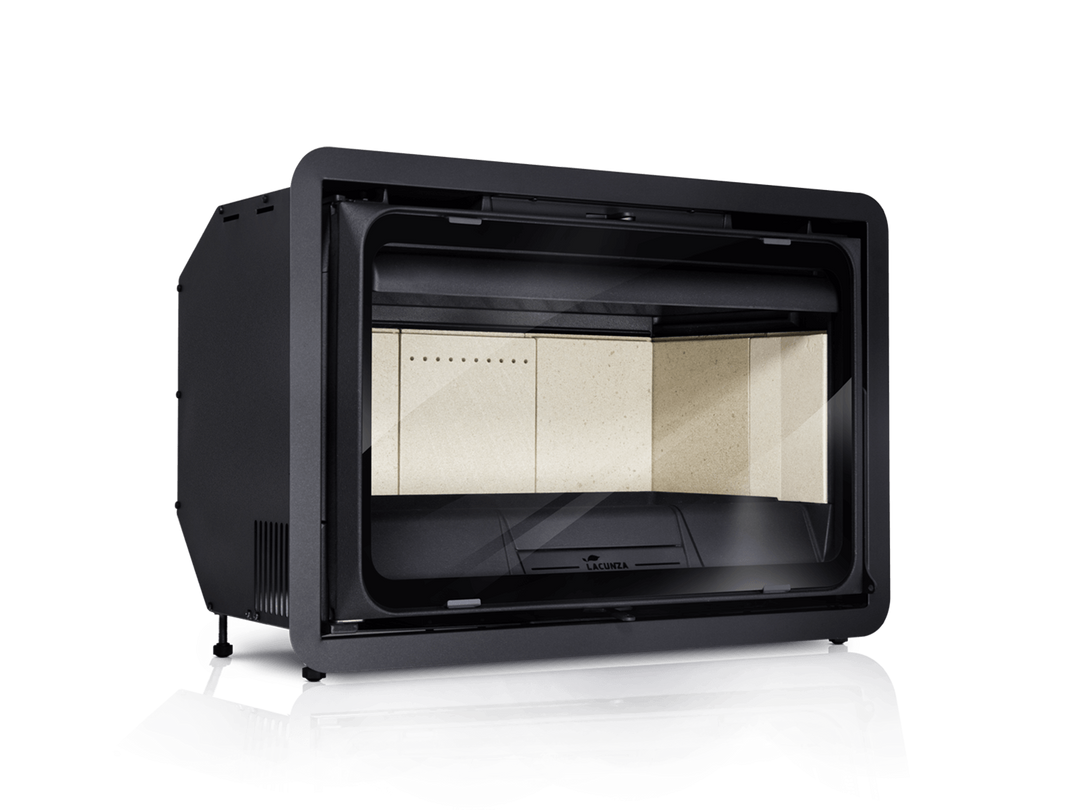

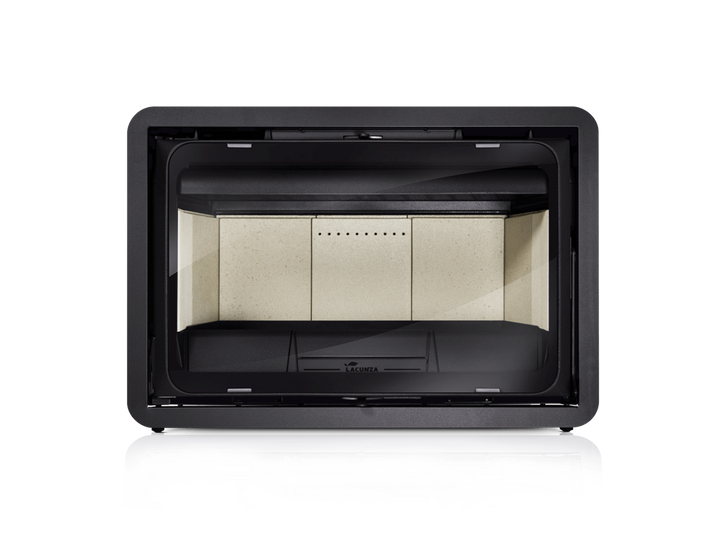

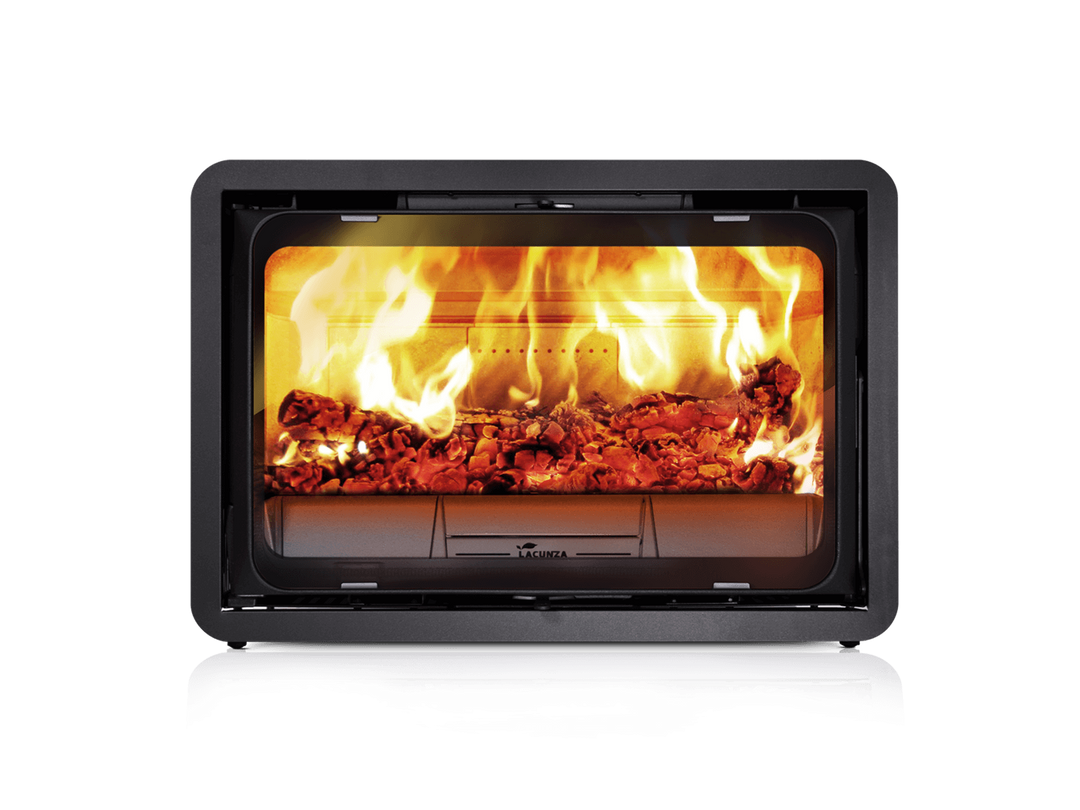

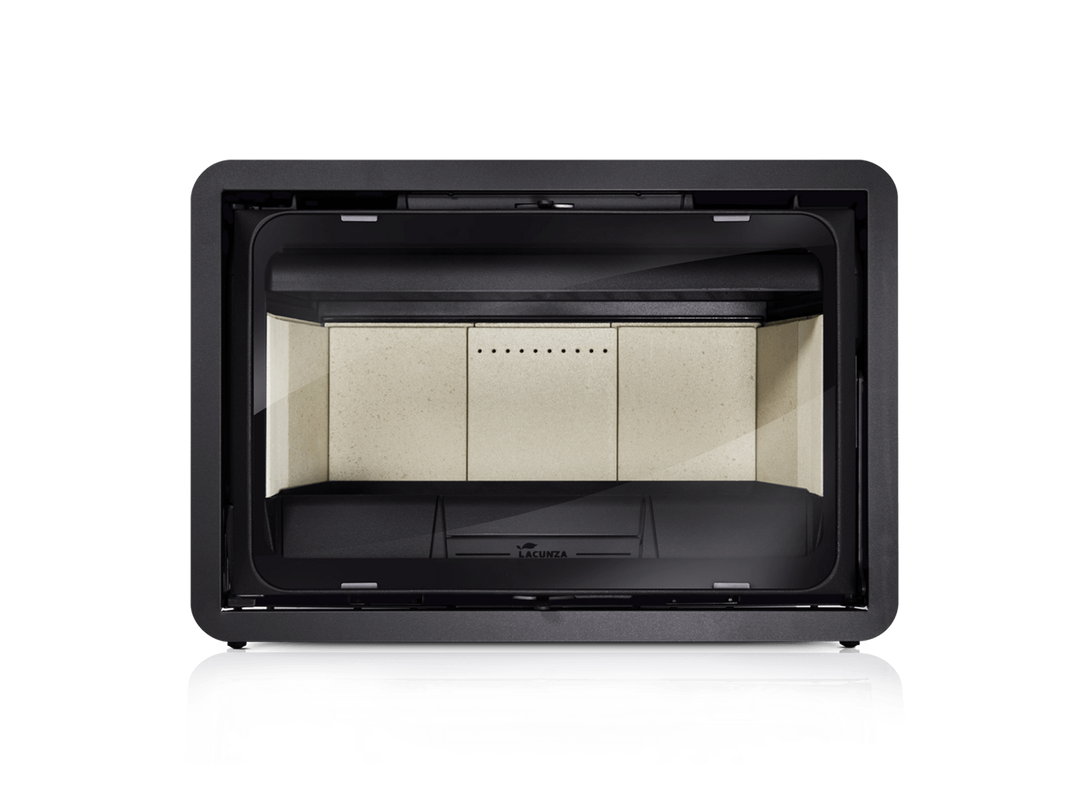

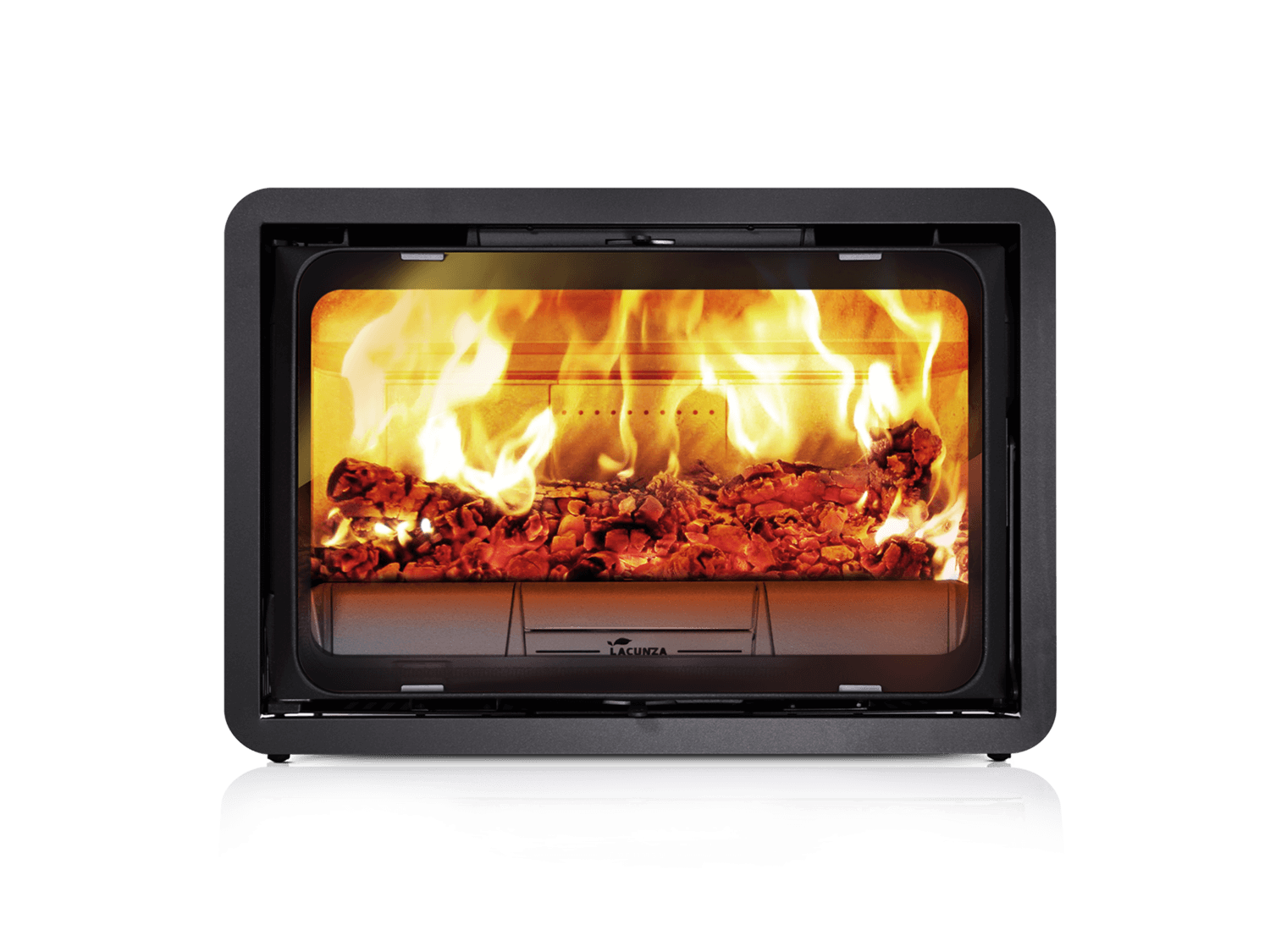

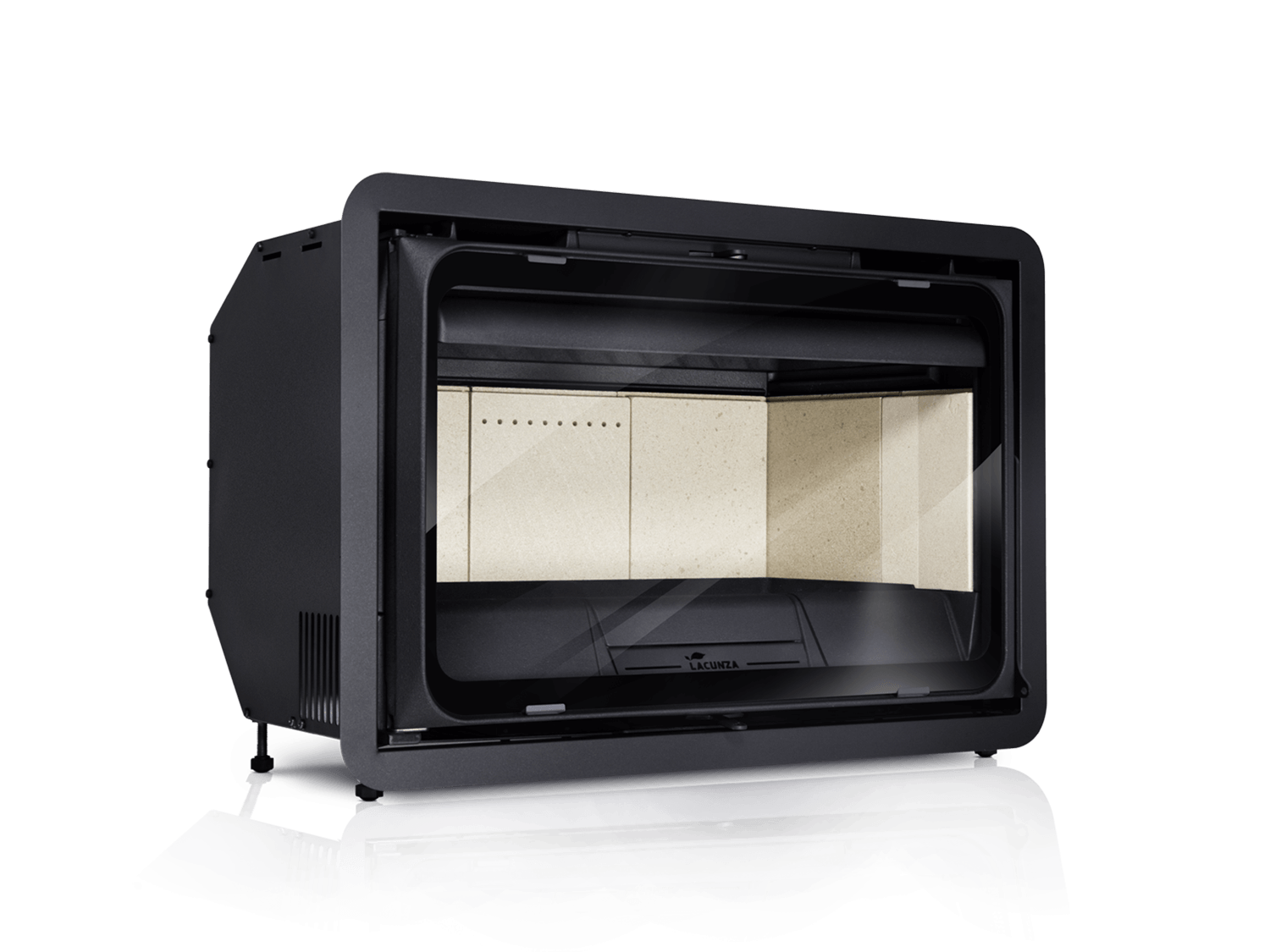

The Lacunza K2 800 is a wide wood-burning insert with a cast iron body and light vermiculite lining in the firebox. The distinct shape of the cast iron gives a classic and robust impression, while the large glass front lets the flames take center stage when the insert is built in.
Two centrifugal fans help to distribute the heat from the firebox. The K2 800 also has a special feature compared to many other stove inserts: a grill grate and an external speed control with remote control are included according to Lacunza. The grill grate is designed for the model's construction and should be used according to the manufacturer's instructions.

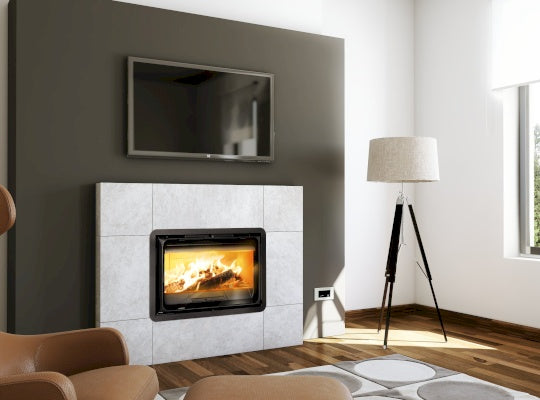

The K2 800 is delivered as a built-in insert, not as a finished mantel. Placement, convection openings, external combustion air, and access to fans and smoke paths need to be planned before installation. Choose the K2 800 if you prefer cast iron, active heat distribution, and want to use the model-specific grill function.
Installation and Built-in Installation
The insert must be installed according to Lacunza's manual and applicable Swedish regulations. The framing must provide the correct safety clearances, convection openings, and access to the flue connection, fans/turbines, and service points. The built-in installation must not block the air circulation required by the model.
Combustion Air and Chimney
Size the chimney according to the model's flue connection and check whether the specific model has external air supply. Air ducts and any ducted hot air must be planned before the framing is closed and must remain accessible for inspection.
First Burn
Start with smaller amounts of wood and gradually increase the temperature so that the firebox, seals, and surface finish are gradually heated in a controlled manner. Ventilate the room if materials or paint emit odors during the first burns.
Burning and Air Control
Use dry, untreated wood and follow Lacunza's manual for wood quantity and air control. Double combustion and glass air wash work best when the airways are kept clear and the firebox is not overloaded. Open the door slowly when adding wood and avoid overfiring.
Care and Service
Allow the insert to cool completely before cleaning. Keep the glass, ash compartment, firebox lining, and flue passages clean. On models with a turbine or fan, the air intakes must also be kept clear. Check the seals and flue connection regularly and have the chimney swept at the required intervals.
