- Product type: Cast iron insert with ventilation
- Model: Midi 700
- Fuel: Wood
- Nominal output: 11 kW
- Output range: 8–14 kW
- Efficiency: 75%
- CO emissions: 0.10%
- NOx: 97 mg
- OGC: 67 mg
- Particulates: 31 mg
- Heating volume: 244 m³
- Heating area: 98 m²
- Dimensions (W × H × D): 700 × 522 × 502 mm
- Firebox (W × H × D): 560 × 250 × 400 mm
- Weight: 135 kg
- Max log length: 55 cm
- Flue connection: Ø200 mm
- Exterior material: Cast iron
- Firebox material: Cast iron
- Ventilation: Axial fan with speed control
- Features: Perfect Combustion, glass cleaning system, cleaning access
- VillaHome SKU: KAM-304170000000
- CE marking: Yes. Documentation: declaration of performance (DoP)

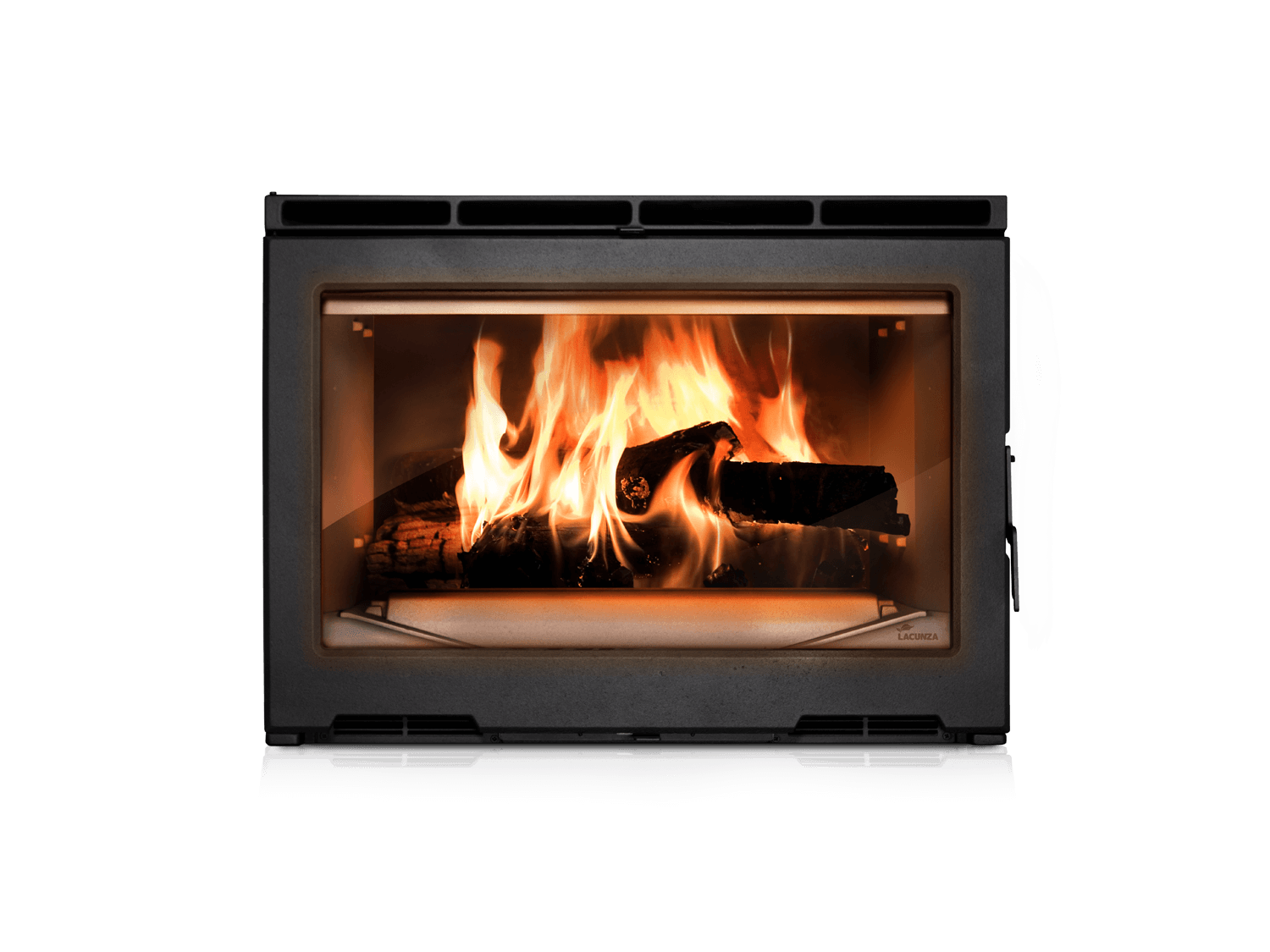

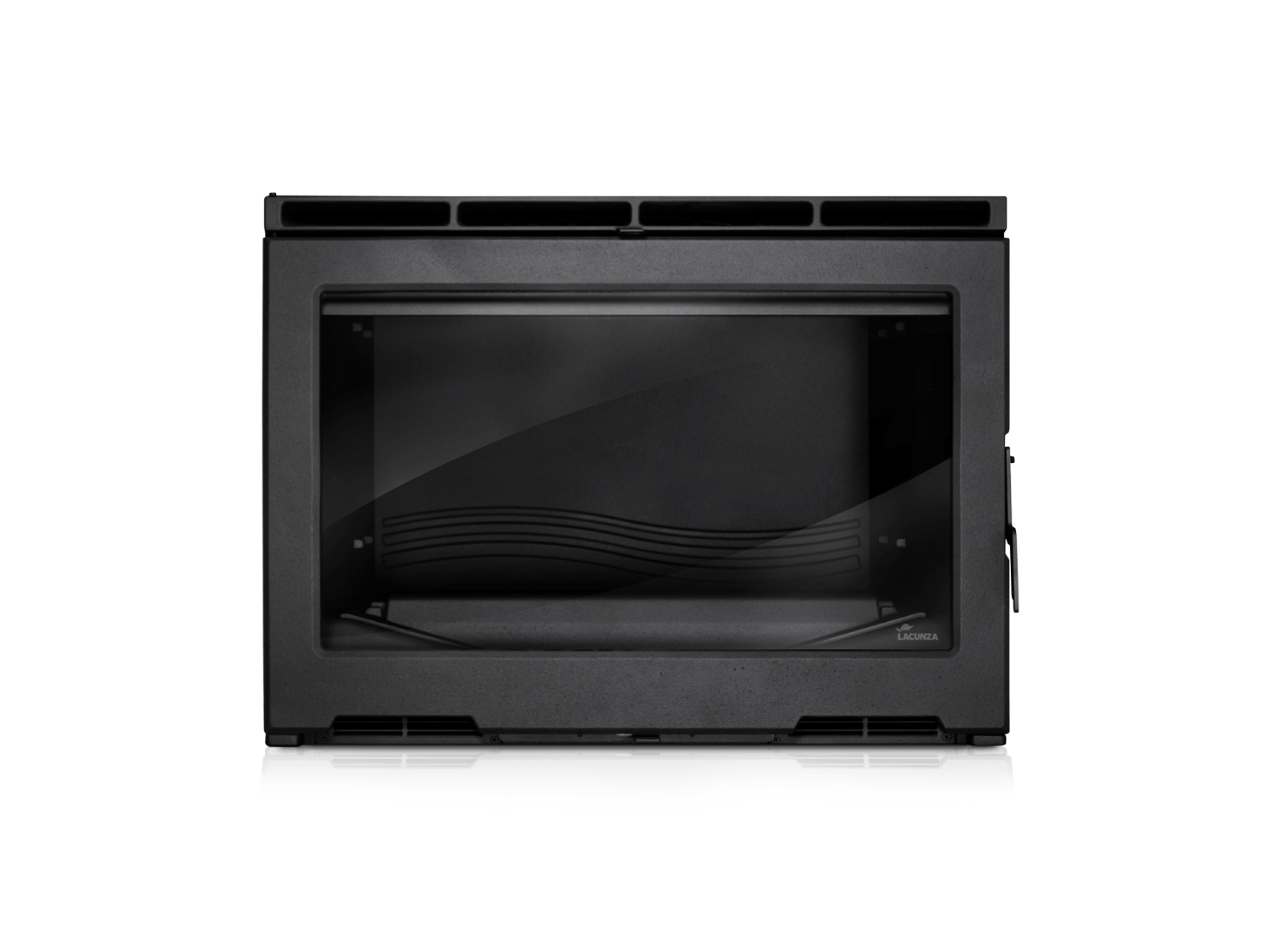

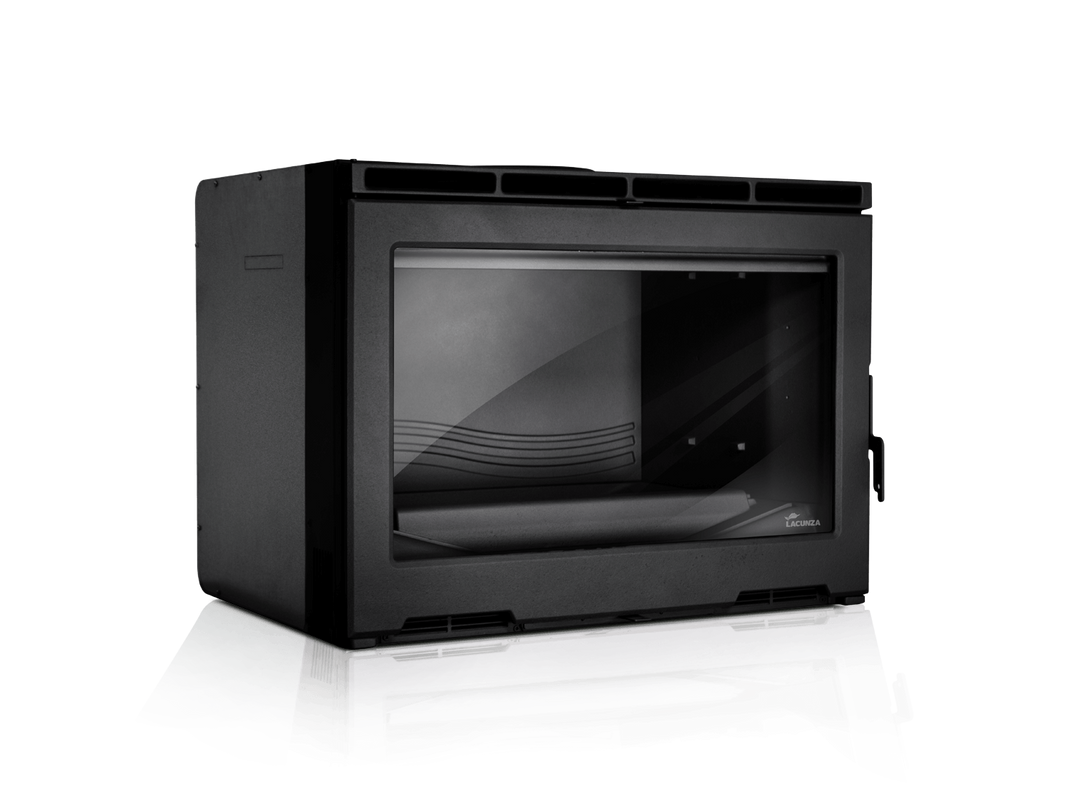

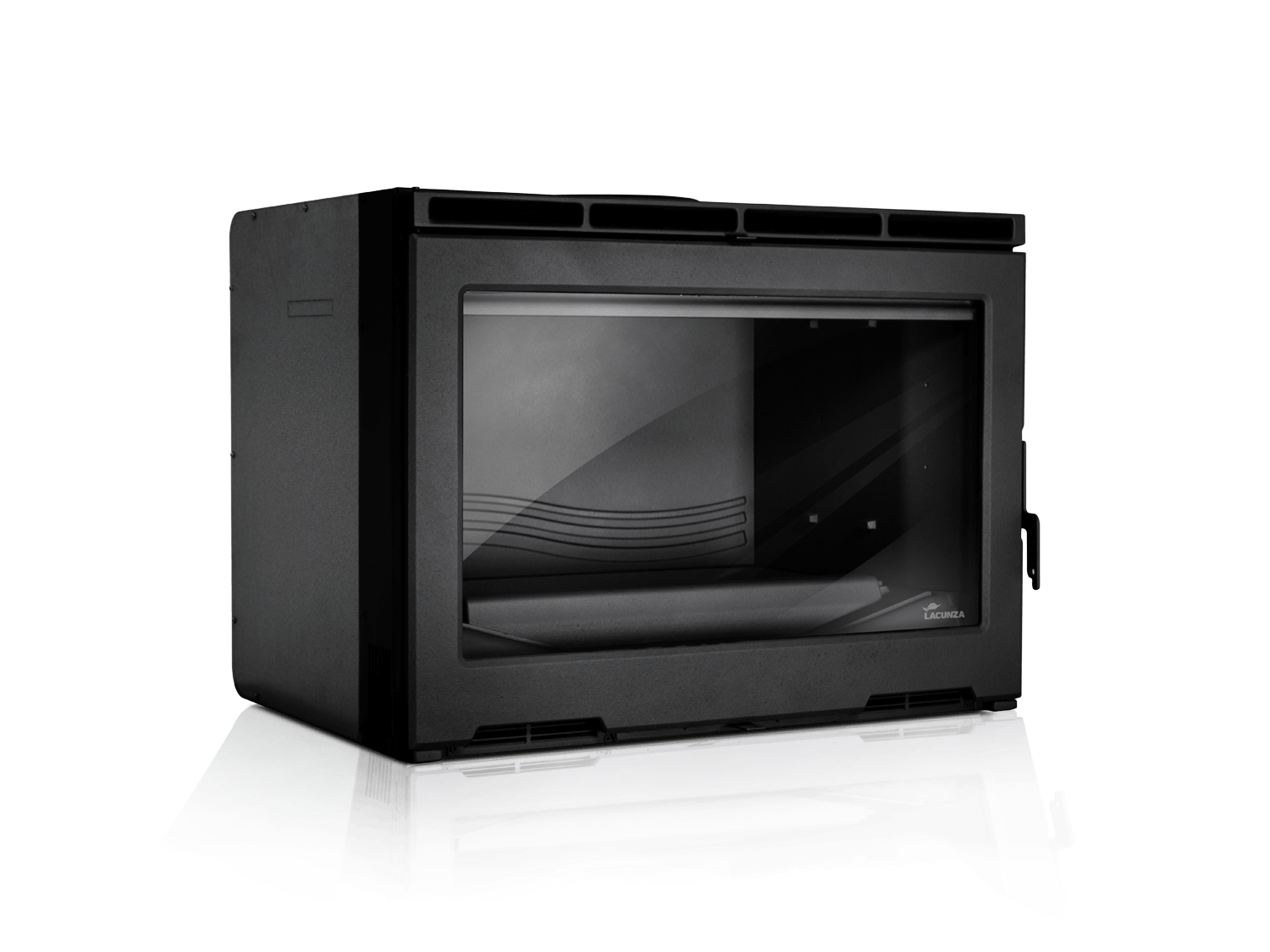

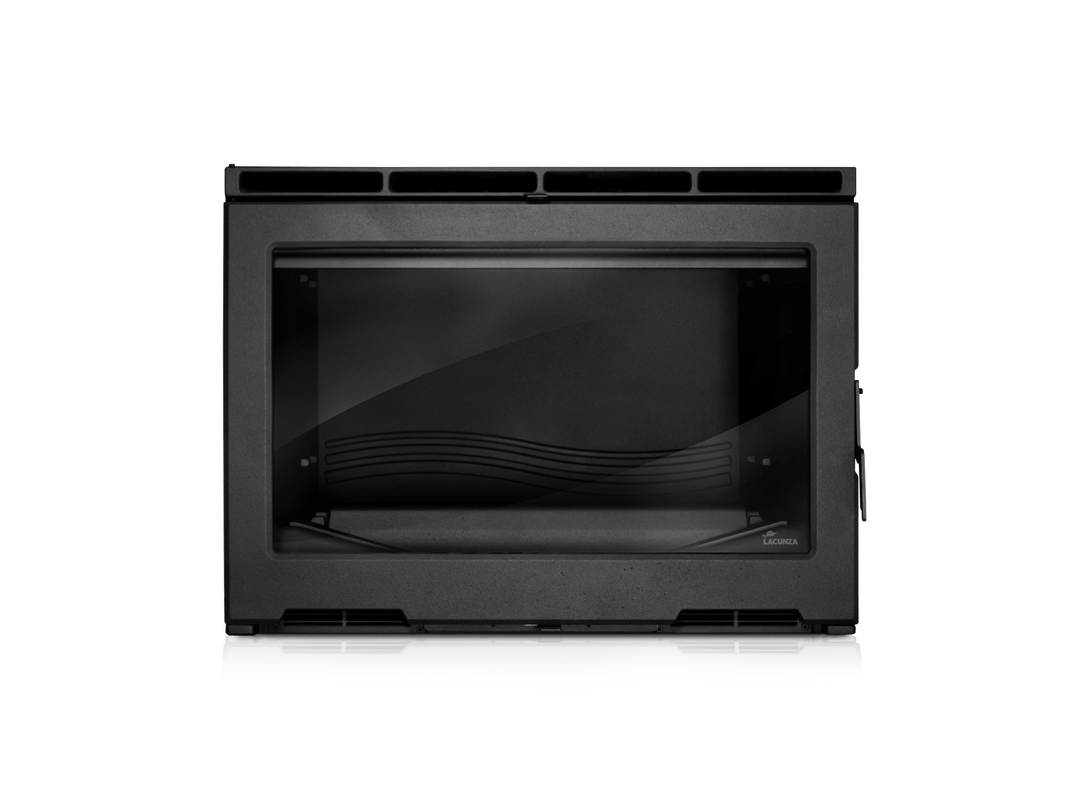

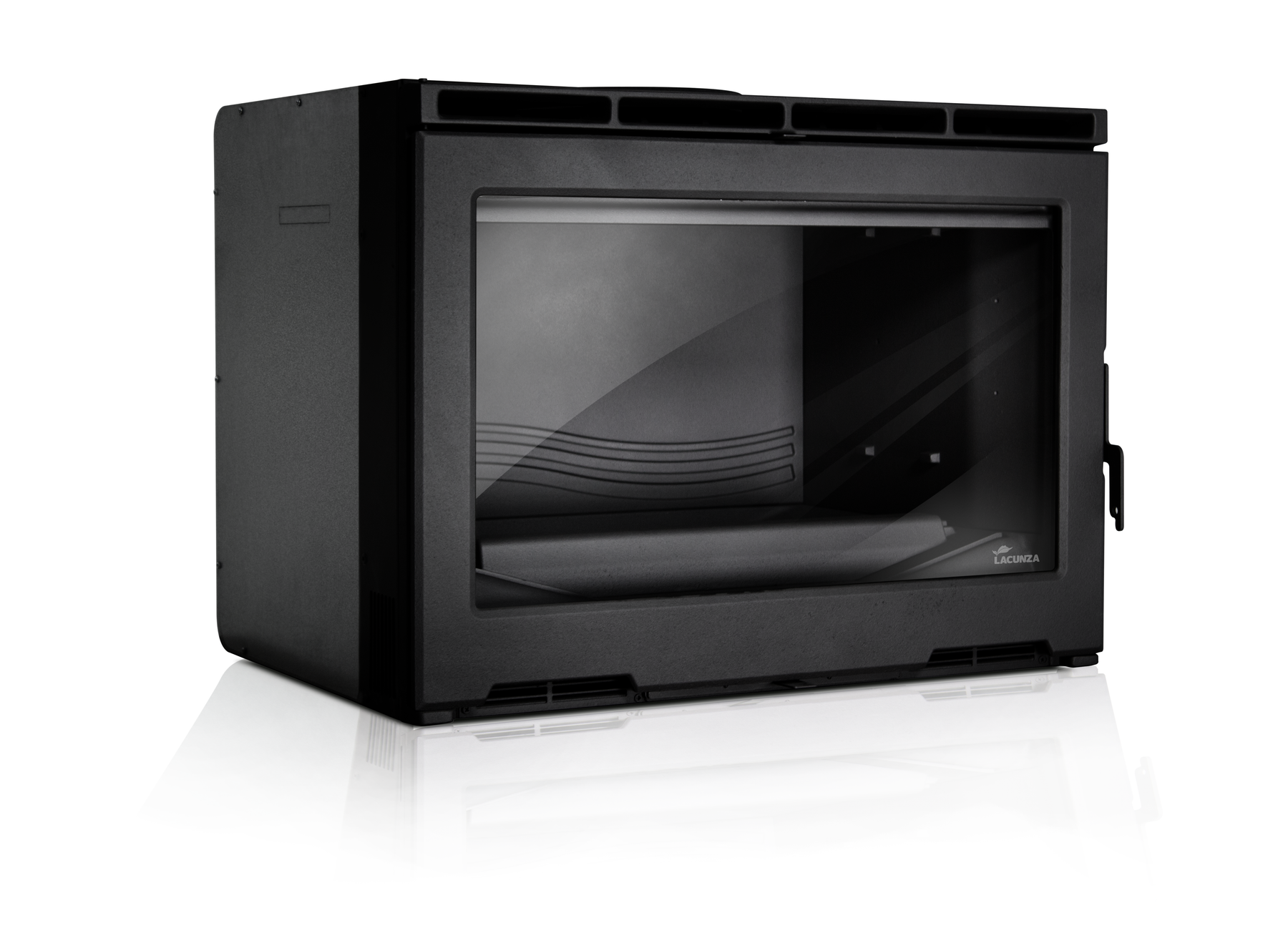

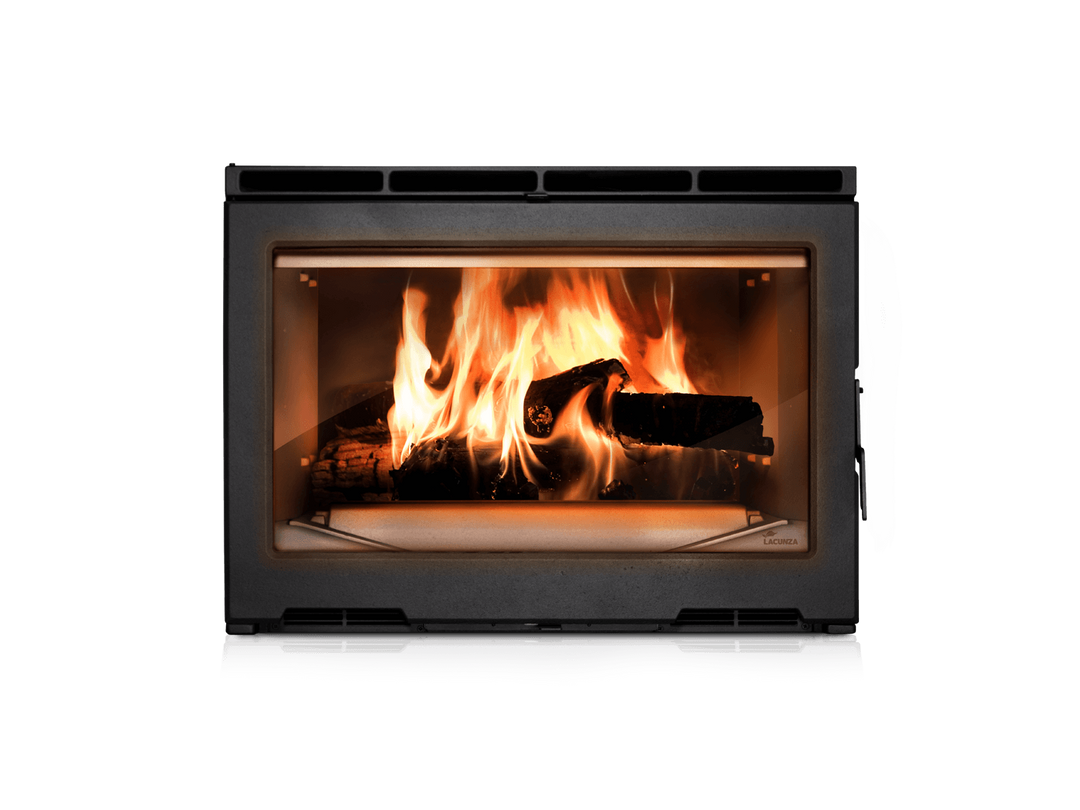

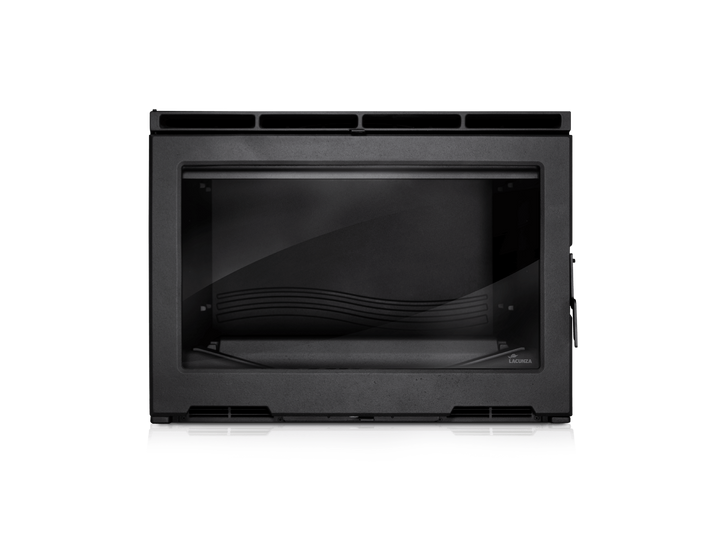

Lacunza Midi 700 is a compact wood-burning insert where both the outer body and the firebox are made of cast iron. The large glass front provides a clear view of the fire, while the more traditional material finish is well-suited for installing a closed firebox in an existing open fireplace.
An adjustable axial fan helps distribute heat from the insert into the room. The cast iron grate and ash drawer simplify ongoing ash management, while the glass air wash system and access for chimney sweeping are features to consider for operation and maintenance. Compared to wide steel inserts such as the Aroa 800, the Midi 700 is primarily a choice for those who prioritize cast iron and a more compact built-in format.

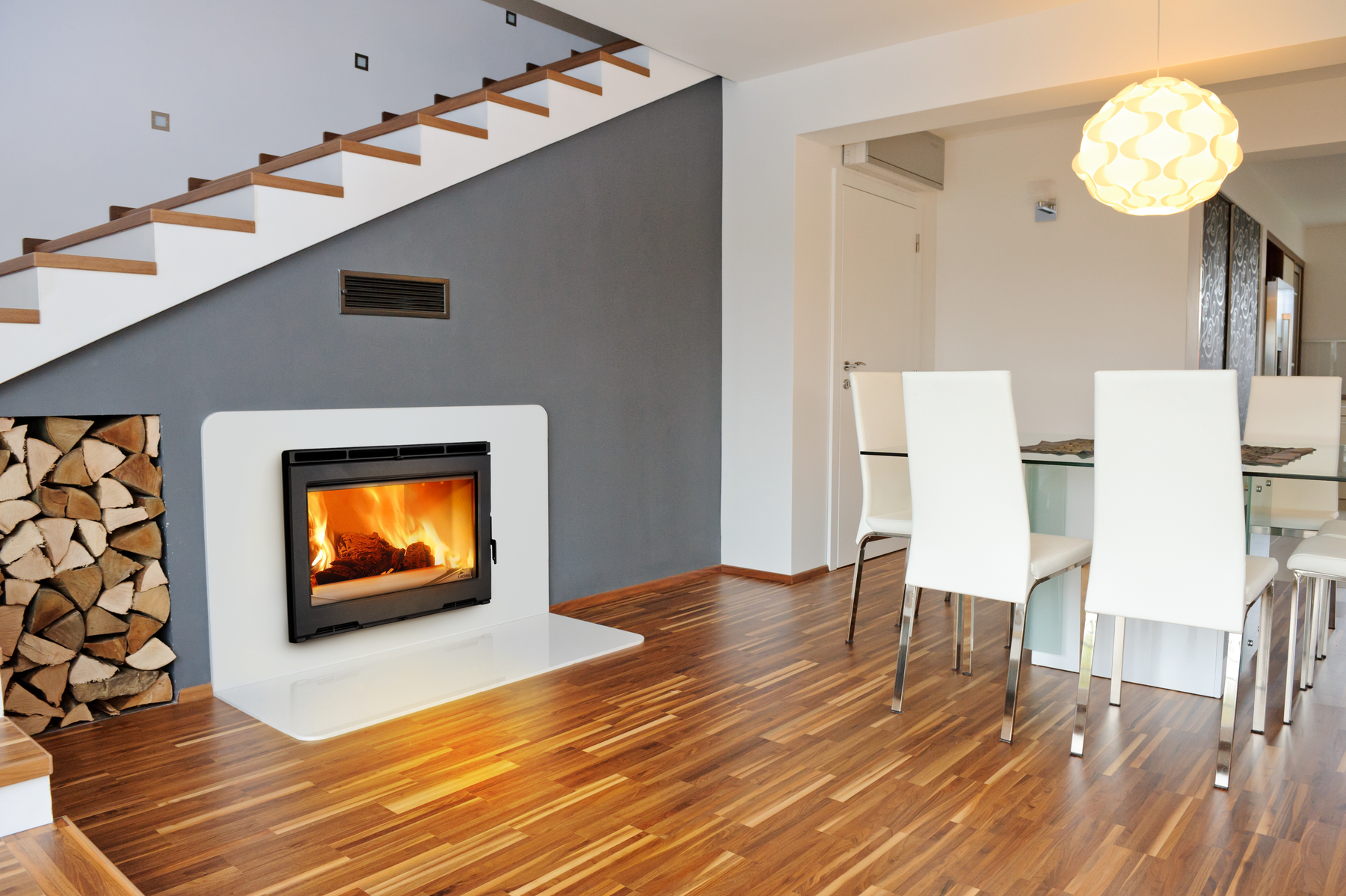

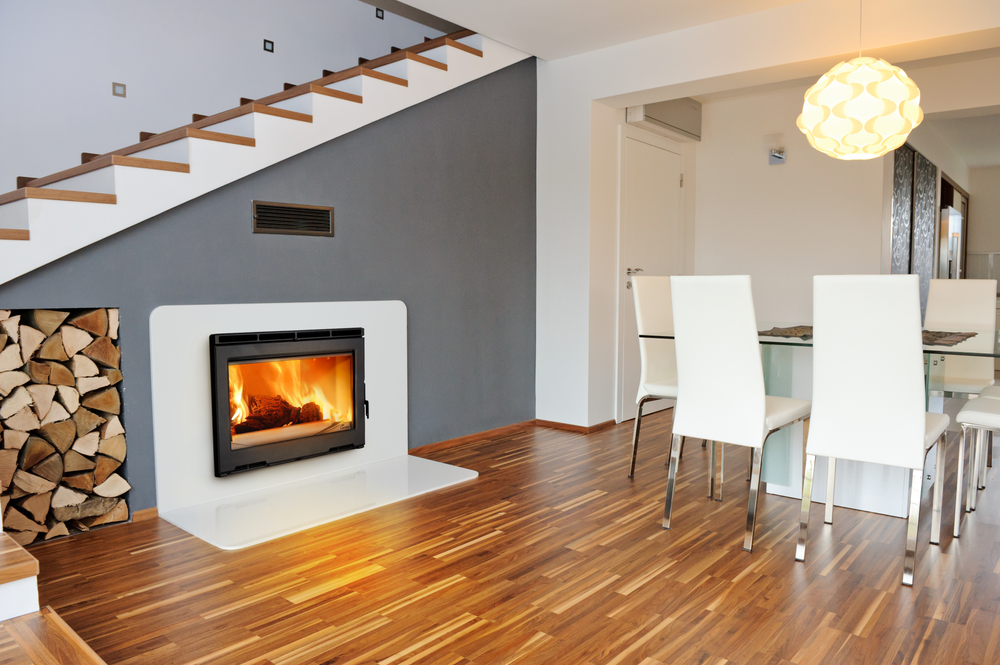

The Midi 700 is sold as the insert itself, not as a freestanding stove with a finished mantel. Check the dimensions of the firebox opening, flue connection, fan power supply, and service access before building it in. The permanent installation must also provide correct safety clearances and adequate convection airflow.
Installation and Built-in Installation
The insert must be installed according to Lacunza's manual and applicable Swedish regulations. The framing must provide the correct safety clearances, convection openings, and access to the flue connection, fans/turbines, and service points. The built-in installation must not block the air circulation required by the model.
Combustion Air and Chimney
Size the chimney according to the model's flue connection and check whether the specific model has external air supply. Air ducts and any ducted hot air must be planned before the framing is closed and must remain accessible for inspection.
First Burn
Start with smaller amounts of wood and gradually increase the temperature so that the firebox, seals, and surface finish are gradually heated in a controlled manner. Ventilate the room if materials or paint emit odors during the first burns.
Burning and Air Control
Use dry, untreated wood and follow Lacunza's manual for wood quantity and air control. The glass air wash and fan air circulation work best when the airways are kept clear and the firebox is not overloaded. Open the door slowly when adding wood and avoid overfiring.
Care and Service
Allow the insert to cool completely before cleaning. Keep the glass, ash compartment, firebox lining, and flue passages clean. On models with a turbine or fan, the air intakes must also be kept clear. Check the seals and flue connection regularly and have the chimney swept at the prescribed intervals.
