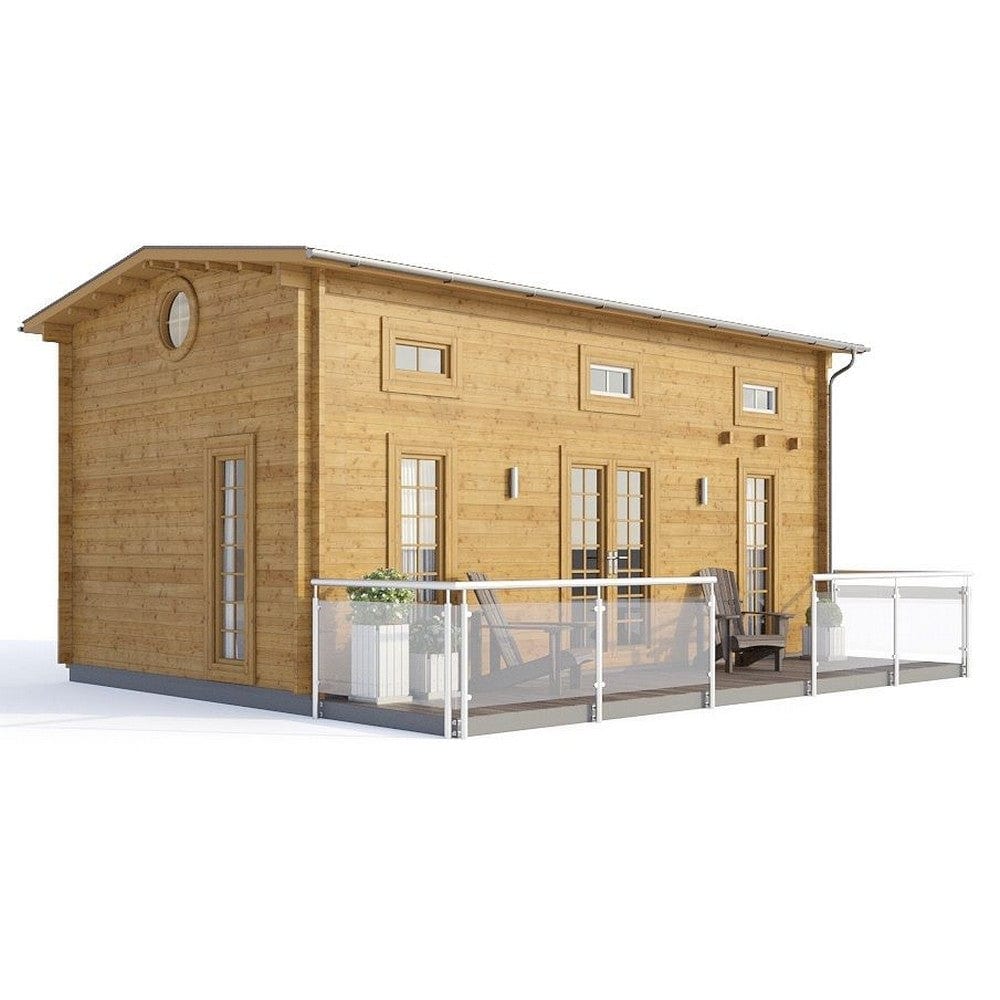

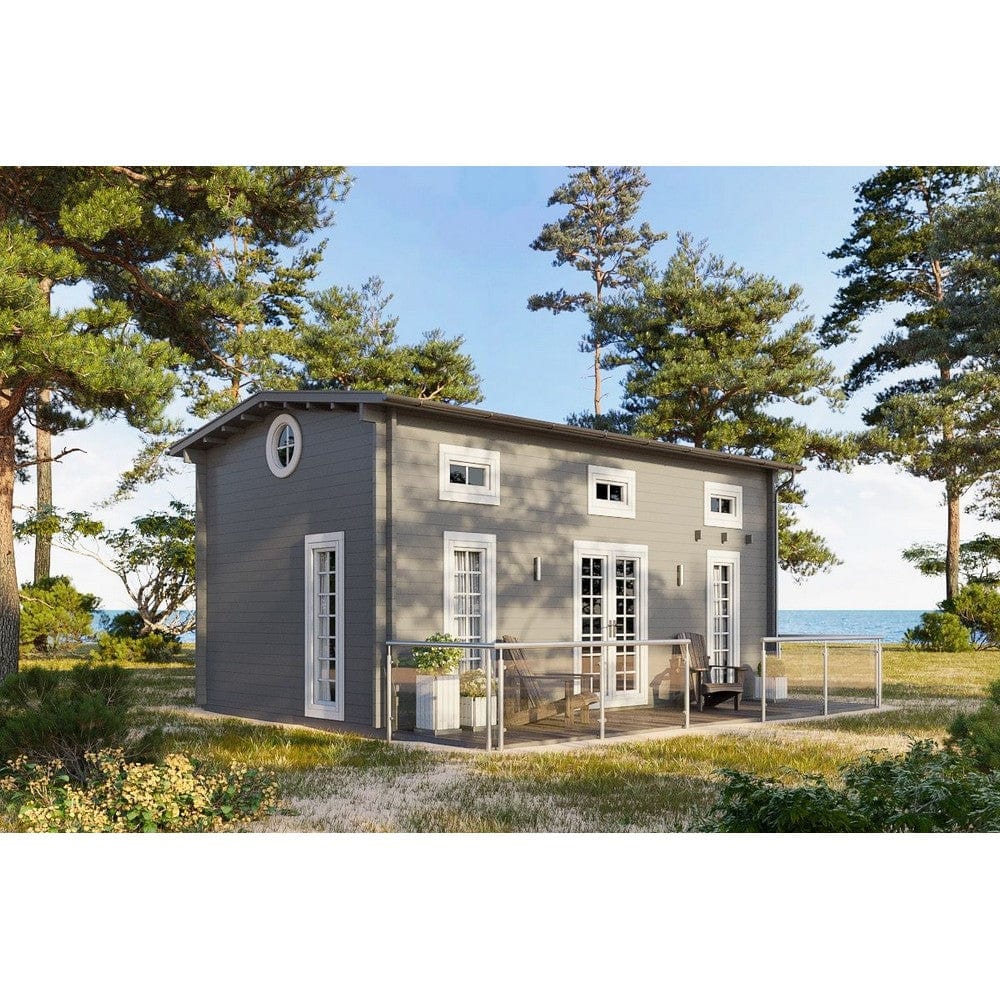

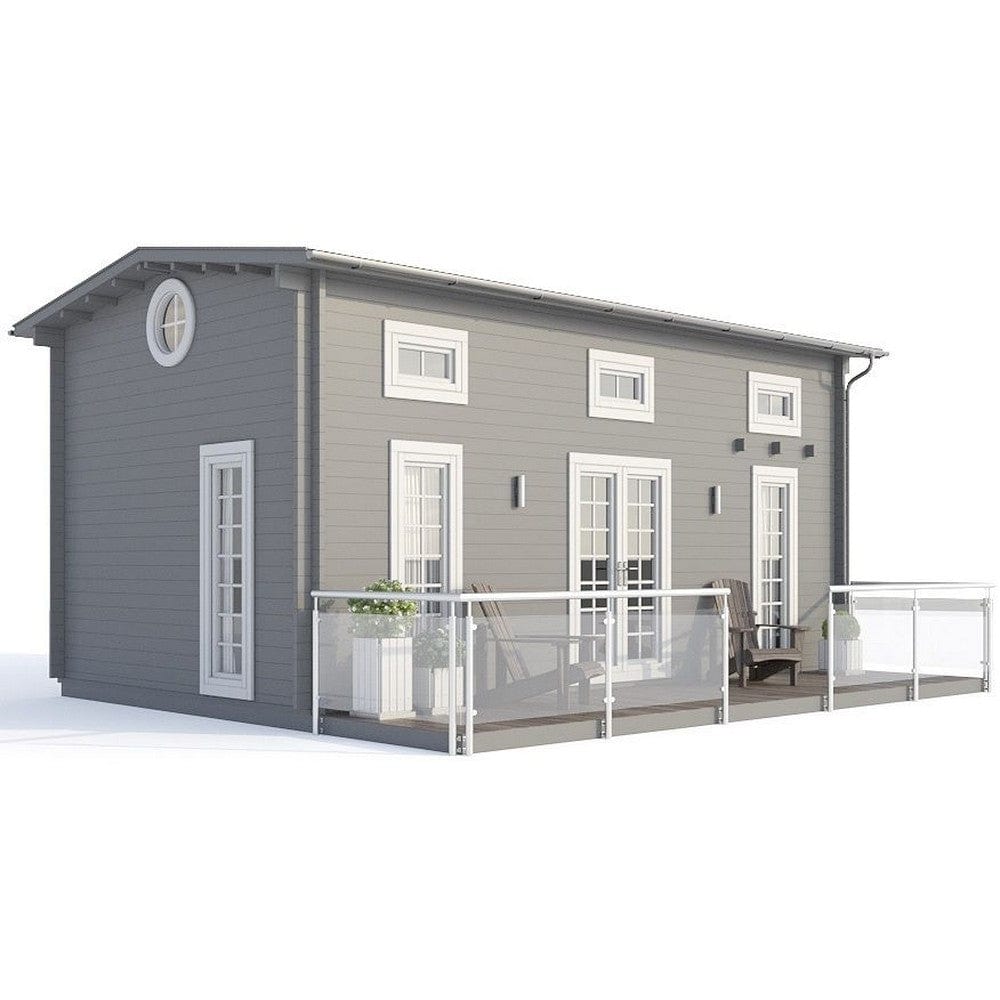

A very beautiful cabin that resembles a real house in its design.
Lisa is a luxurious "Attefall" secondary dwelling of 25 sqm + approx. 10 sqm sleeping loft. Also available as a "Bolundare" flexible dwelling of 30 sqm. Like a traditional small house with a front porch and a sleeping loft, very attractive with windows in all directions. Optimal floor plan, with a living room/main room and two smaller rooms, which provides space for both a WC and a kitchenette/kitchen, if desired.
- approx. 25 sqm on the ground floor and approx. 10 sqm loft
- Floor and ceiling boards are finely planed and tongued and grooved for good dimensional stability
- The timber is made of durable, slow-grown Nordic spruce
- Double glazing/ISO as standard in windows and doors
Frame/timber thickness:

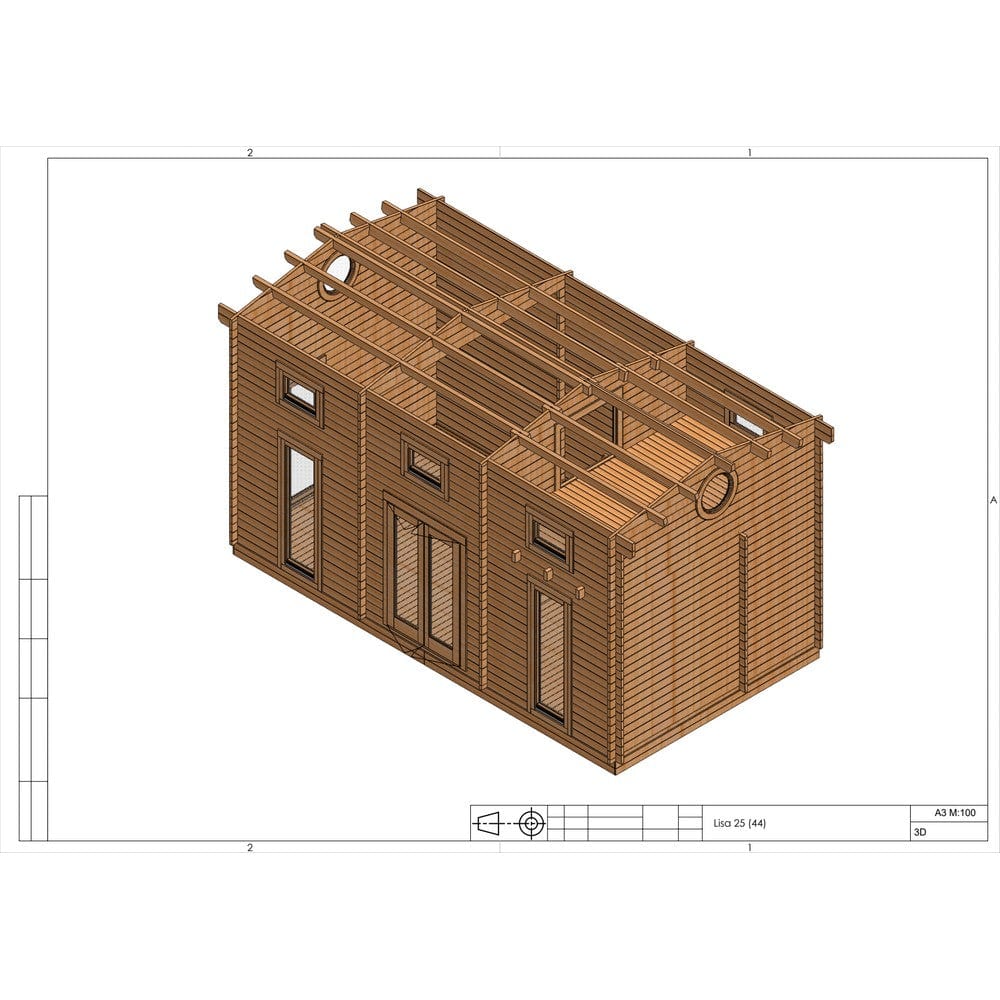

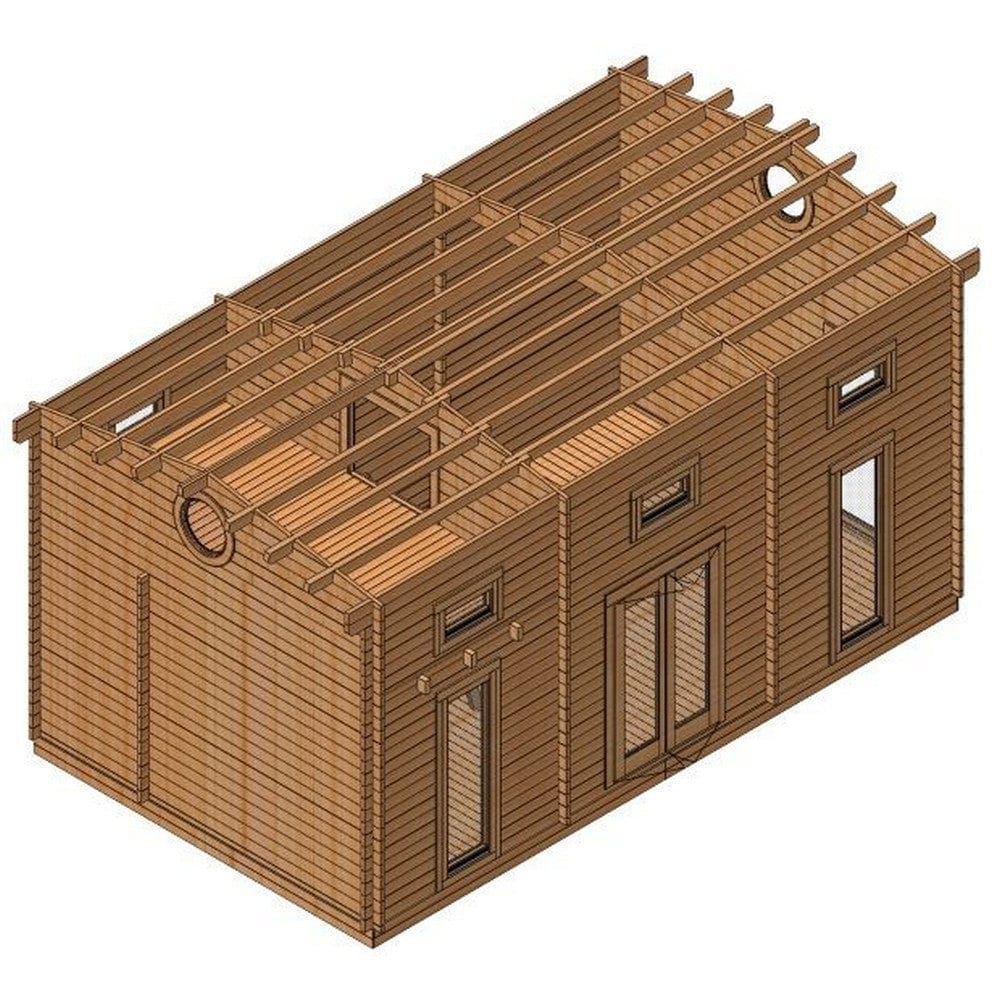

- Log cabin construction 44 x 130 mm, 60 x 130 mm or 90 x 130 mm timber thickness.
Roof:
- 19x100 mm planed tongue and groove, finely planed and good fit for good stability
- Roof purlins pre-cut in 60 x 140 mm (std). Available as an option 60x180/200 mm
- Barge boards rough-sawn
- Eave boards
Windows:
- Architraves inside and out (untreated)
- Opening windows: Double-glazed insulating glass windows including external removable glazing bars.
- Option: white painted, triple glazing etc
- Handles/knobs/pulls and fittings
- Opening in 2 directions (tilt & turn)
Doors:
- Architraves inside and out included with double glazing (std) untreated
- Entrance door with window and external removable glazing bars
- Interior wooden doors
- Handle+cylinder lock+keys for interior doors.
- Adjustable door hinges
Floor:

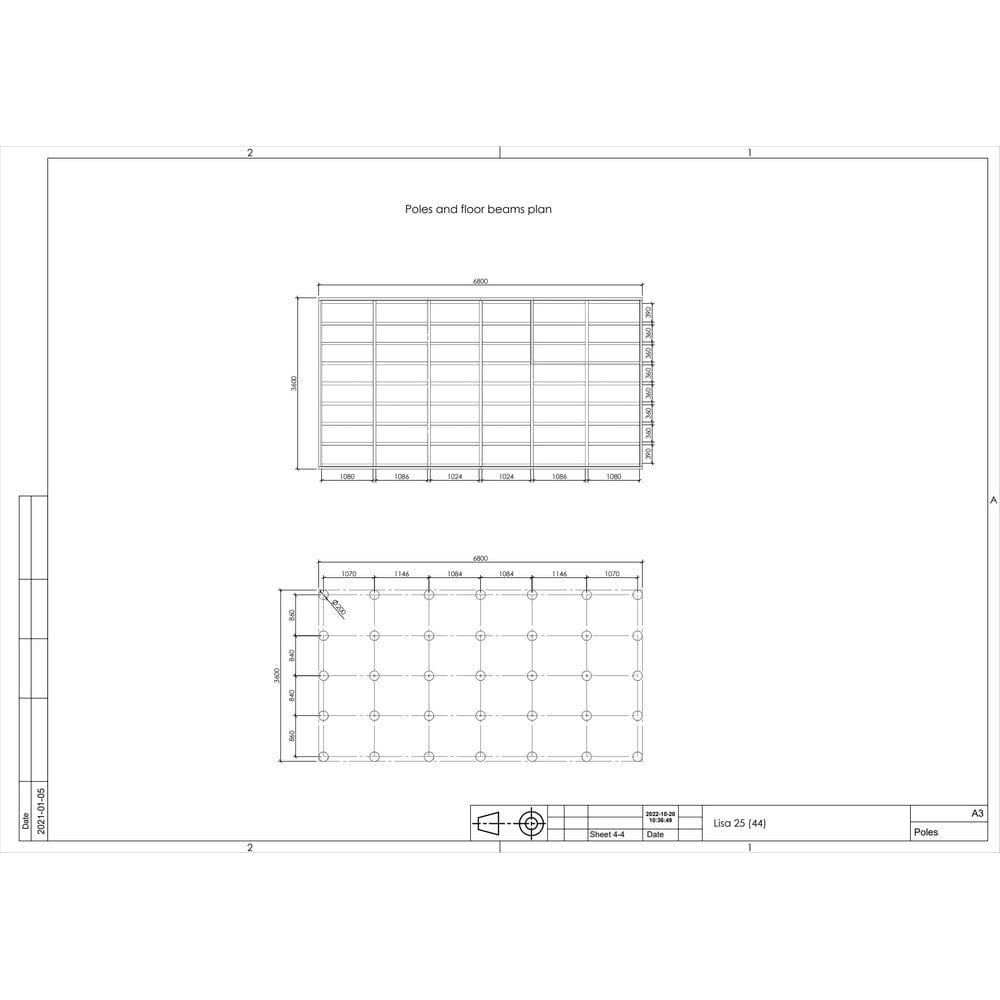

- Floor joists 60 x 140 mm, pre-cut
- Floor in finely planed wood, 28 mm thickness
- Skirting boards
- Loft floor, finely planed wooden floor in 28 mm
Windows & doors:
- Opening windows: Double-glazed insulating glass windows. Options: glazing bars, white painted, triple glazing.
- 4 pcs. windows 760 x 480 mm.
- 3 pcs. windows 680 x 1980 mm,
- 2 pcs. round D600 mm (one fixed+one opening, optional gable side, un-cut)
- 1 pc. Double patio/entrance door (full glass): 1380x1980 mm, insulating glass, untreated including handle & lock,
- 1 pc. interior door 880x1980 mm solid wood including lock & handle.
Packaging (approx. dimensions):
- Package 1: Dimensions L 6200 mm x W 1200 mm x H 250-900 mm,
- Package 2: Dimensions L 6000 mm x W 1200 mm x H 300-900 mm,
- Package 3: (depending on timber thickness).
- Total weight (approx. kg) 44 mm: 2800 kg, 60 mm: 3600 kg, 90 mm: 4500 kg.
Advantages:
- 1 year warranty
- Tongue and grooved roof & floorboards
- Strongly dimensioned roof purlins
- Strong floor structure
- Finely planed floor and ceiling boards
- Very good fit on all parts
- Simple and quick assembly
- Marked, numbered and pre-cut parts
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Log cabin walls with double interlocking joints/tongue and groove
- Parts delivered untreated
- Top- & side-hung windows
- Window & door architraves (inside & out included, std untreated)
- Adjustable door hinges
Specifications:

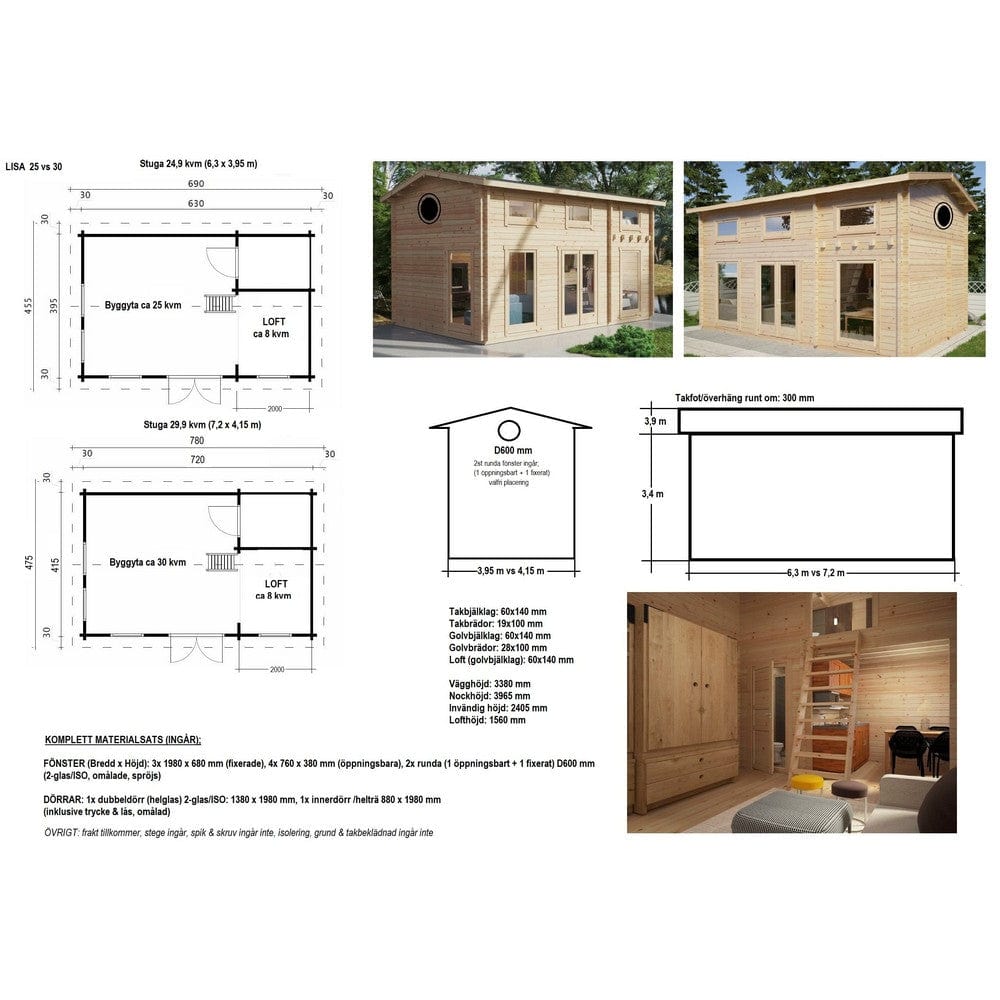

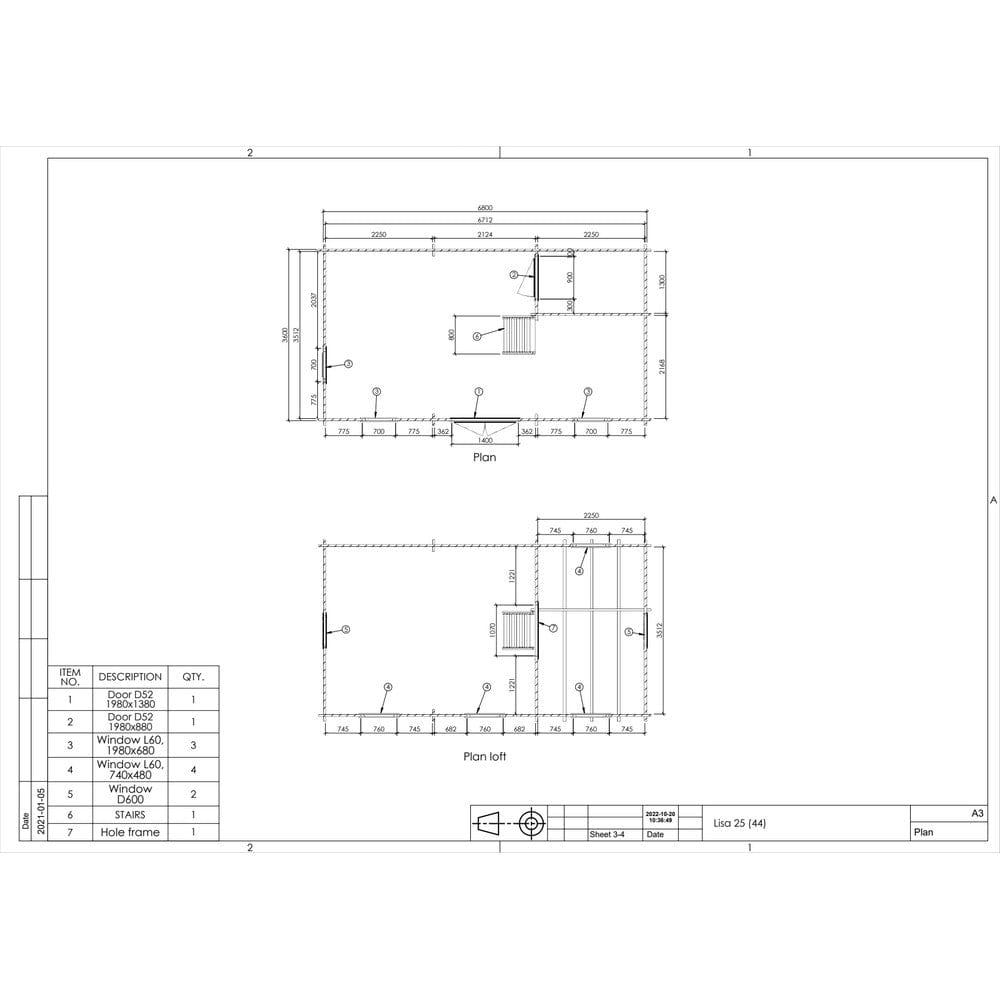

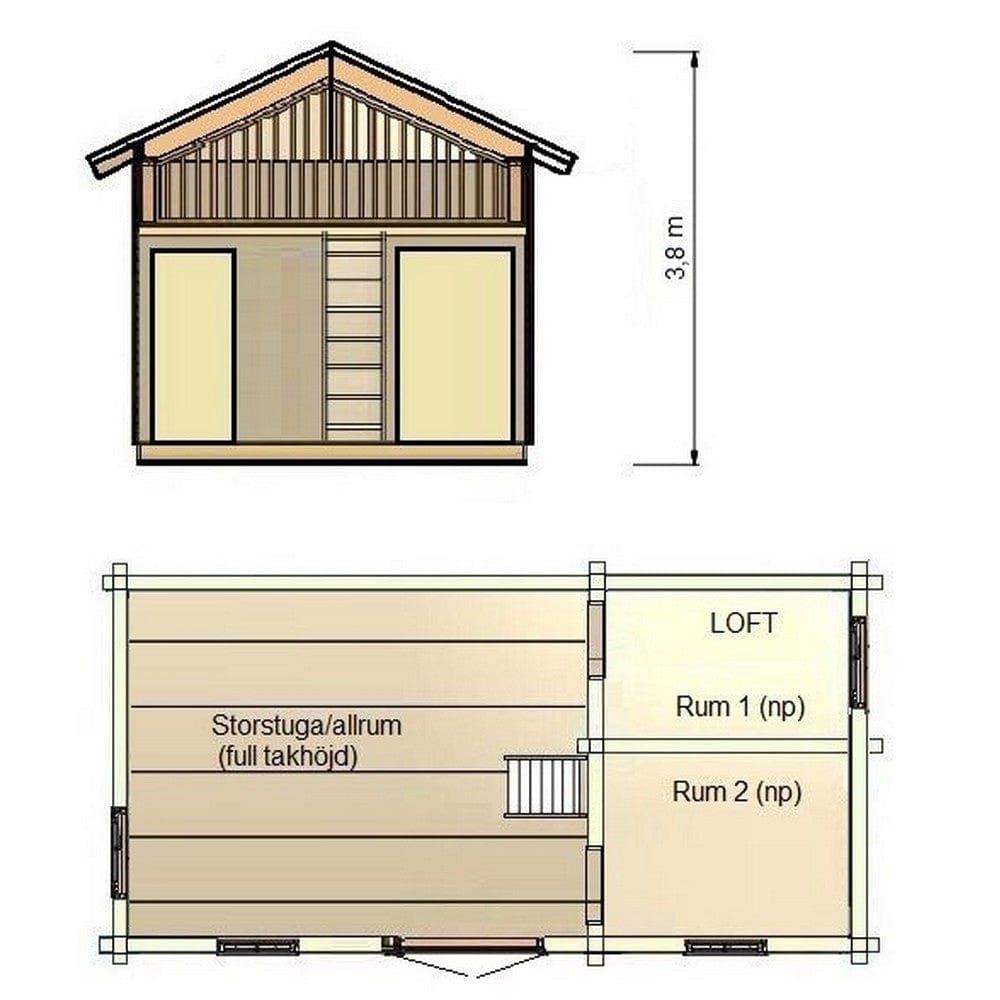

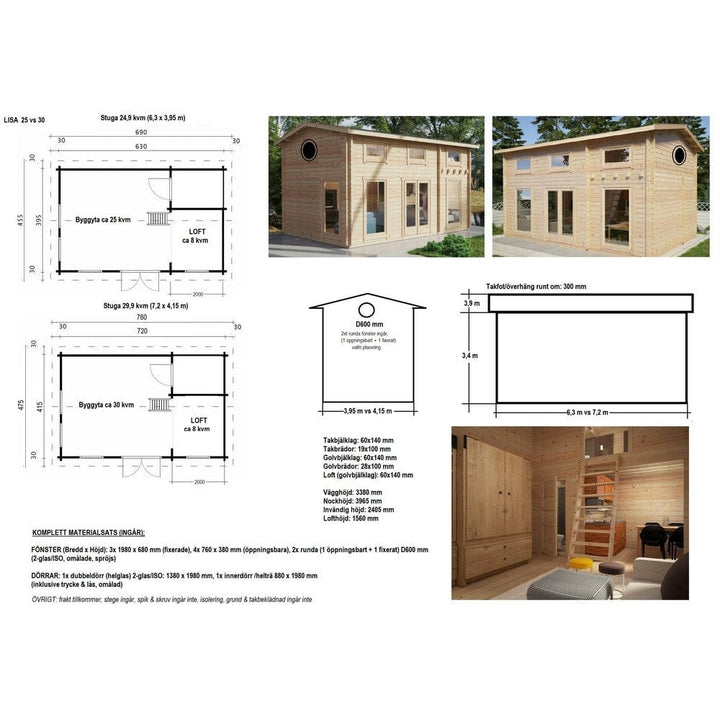

Floor plan: See example drawing
Building area: 25 sqm
Living area: approx. 24.5 sqm + sleeping loft approx. 9 sqm
House type: Log cabin with loft, optional timber thickness 44, 60 or 90 mm (walls)

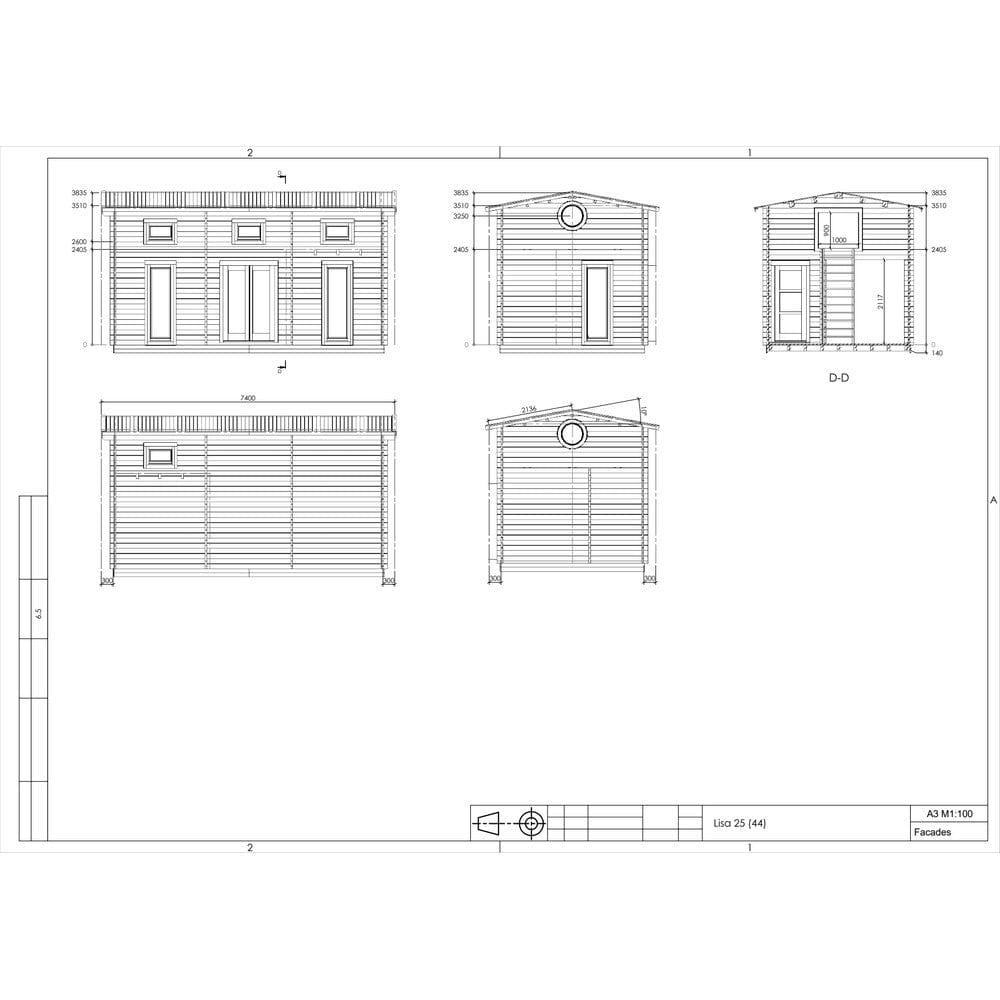

Length: approx. 6.8 m
Width: approx. 3.6 m
Height: approx. 3.8 m
Building area: 25 sqm
Roof pitch: 9/10° (gable roof)
Roof load capacity: 240 kg/sqm
Frame: Planed and log cabin wall profiles 90 x 130 mm
Floor: 28 mm finely planed on floor joists 60 x 140 mm. Available as "Option" 60x180/200 mm.
Roof: 19 mm x 100 mm planed rough boarding on roof purlins 60 x 140mm
Material (wood): Slow-grown Nordic spruce, untreated and unpainted timber
Not included: Roof covering, insulation, screws and nails
