JM Cabins & Leisure Cabin Lisa 30sqm

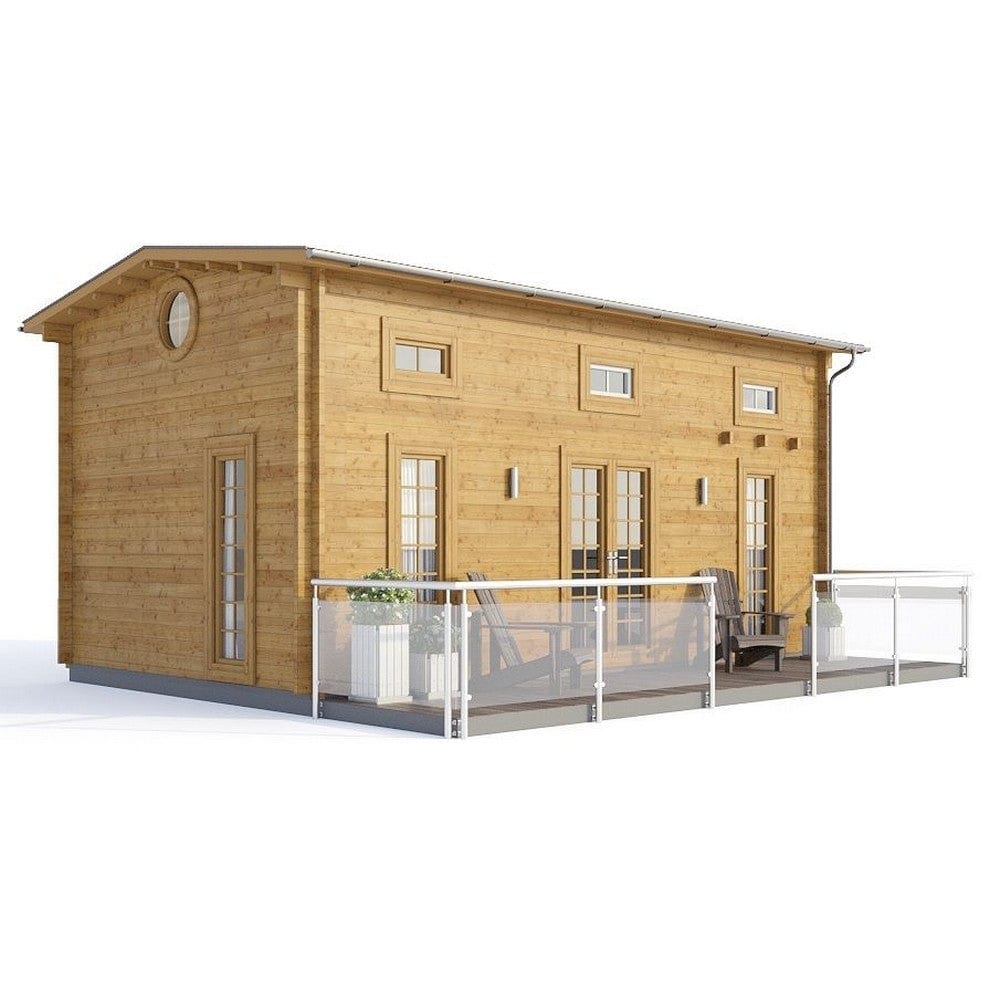

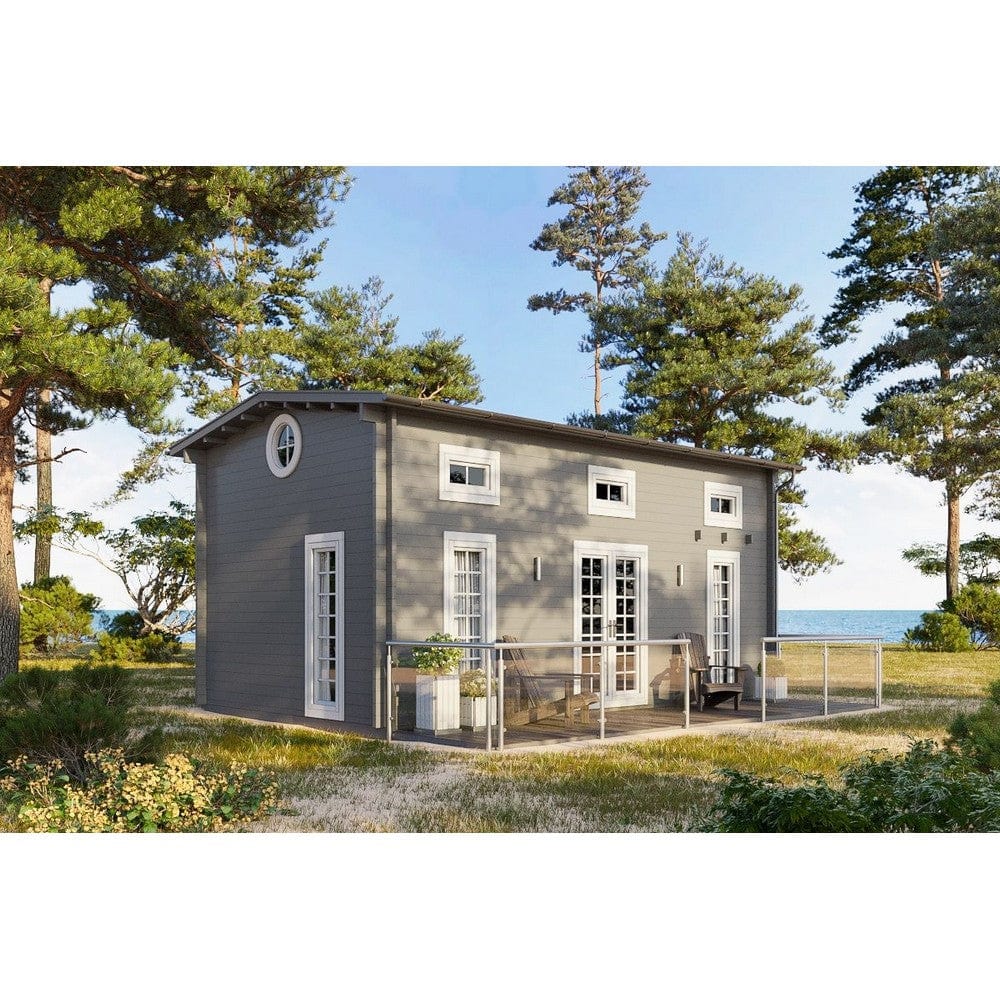

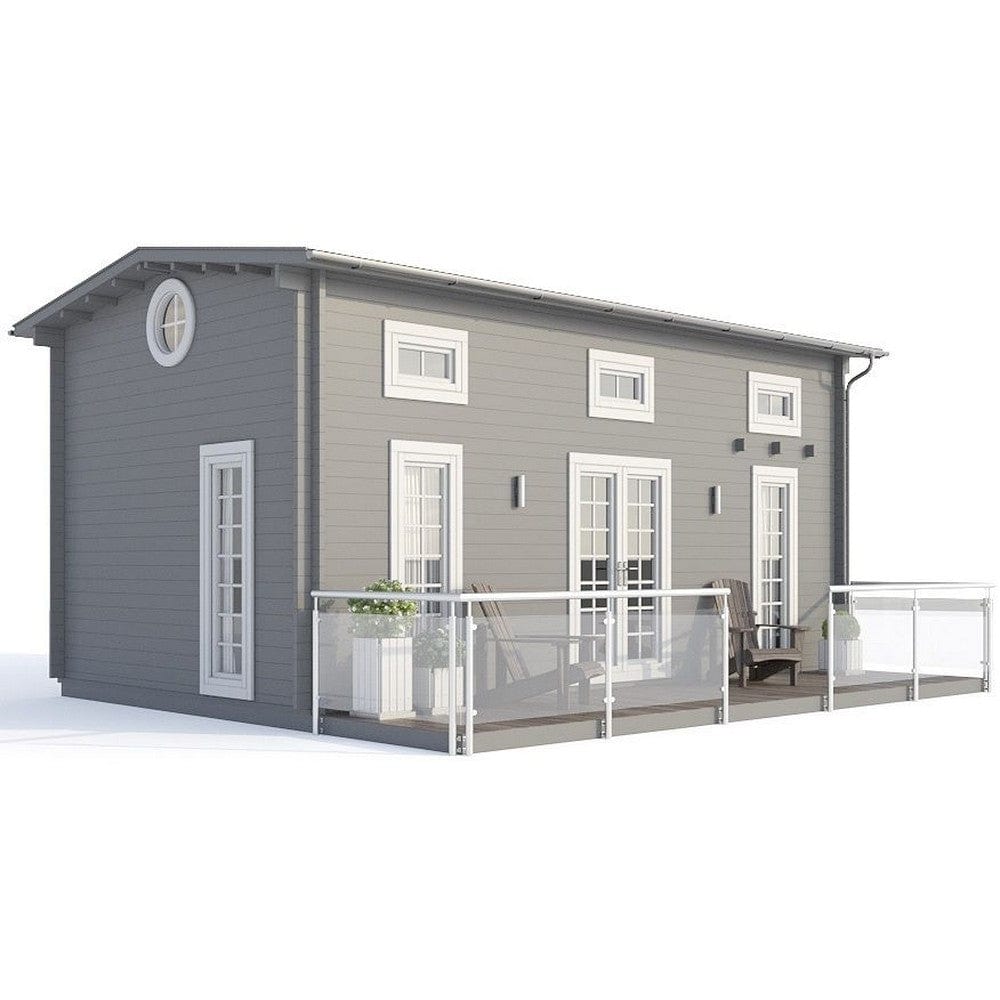

A very beautiful cabin that resembles a real house in its design.

Lisa is a luxurious "Attefall" house of approximately 30 sqm + approximately 10 sqm sleeping loft. Like a traditional small house with a sleeping loft, very nice and with windows in all directions. Optimal floor plan, with a living room/main room of approx. 19 sqm and two smaller rooms which can accommodate both a WC and a kitchenette/kitchen, if desired.

• Approx. 30 sqm on the ground floor and approx. 10 sqm loft

• Floor and ceiling boards are finely planed and tongue-and-grooved for good dimensional stability

• The timber is made of durable, slow-grown Nordic spruce

• Double-glazed/ISO as standard in windows and doors

Frame/timber thickness:

• Log timber 44 x 130 mm, 60 x 130 mm or 90 x 130 mm timber thickness.

Roof:

• 19x100 mm smooth tongue-and-groove, finely planed and good fit for stability

• Roof purlins pre-cut to 60 x 140 mm (std). Available as an option in 60x180/200 mm

• Rough-sawn wind boards

• Eaves boards

Windows:

• Architraves inside and out (untreated)

• Openable windows: Double-glazed insulating windows including external removable muntin bars.
• Option: white painted, triple-glazed etc.

• Handles/knobs and fittings

• Openable in 2 ways (tilt & turn)

Doors:

• Architraves inside and out included with double-glazing (std) untreated

• Entrance door with window and external removable muntin bars

• Interior wooden doors

• Handle+cylinder lock+keys for interior doors.

• Adjustable door hinges

Floor:

• Floor joists 60 x 140 mm, pre-cut

• Floor in finely planed wood 28 mm thick

• Skirting boards

• Loft floor, finely planed wooden floor 28 mm

Windows & doors:

• Openable windows: double-glazed insulating windows. Options: muntin bars, white painted, triple-glazed.

• 4 pcs. windows 760 x 480 mm.
• 3 pcs windows 680 x 1980 mm,
• 2 pcs round D600 mm (one fixed + one openable, optional gable side, undrilled)
  1 pc. Double patio/entrance door (full glass): 1380x1980 mm, insulating glass, untreated including handle & lock,
• 1 pc. interior door 880x1980 mm solid wood including lock & handle.

Packaging (approximate dimensions):

• Package 1: Dimensions L 6200 mm x W 1200 mm x H 250-900 mm,
• Package 2: Dimensions L 6100 mm x W 1200 mm x H 300-900 mm,
• Package 3: (depending on timber thickness)

Advantages:

• 1-year warranty

• Tongue-and-grooved roof & floorboards

• Heavily dimensioned roof purlins

• Strong floor joists

• Finely planed floor and ceiling boards

• Very good fit for all parts

• Easy and quick assembly

• Marked, numbered and pre-cut parts

• Wood type: Nordic spruce

• Genuine double-glazing/ISO

• Log-profiled walls with double grooves/tongue-and-groove

• Parts delivered untreated

• Top- and side-hung windows

• Window & door architraves (inside & outside included, std untreated)

• Adjustable door hinges

Specifications:

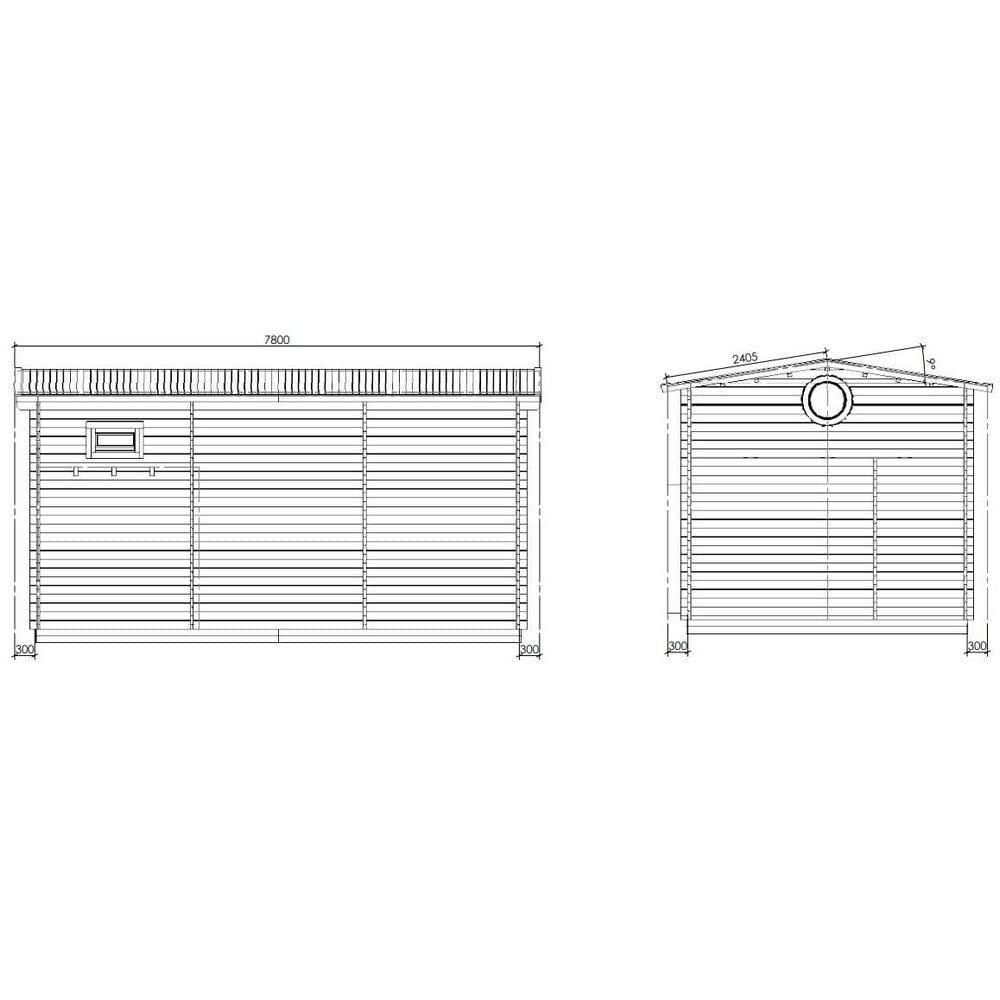

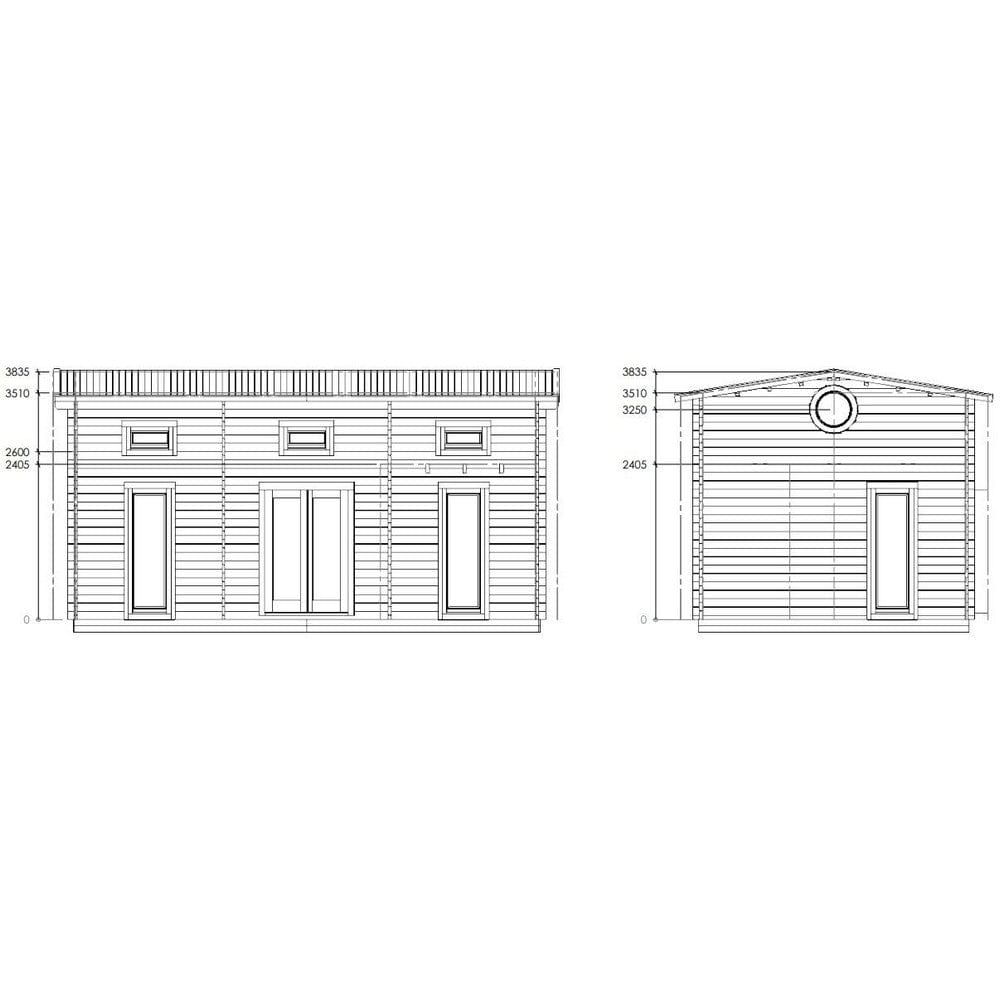

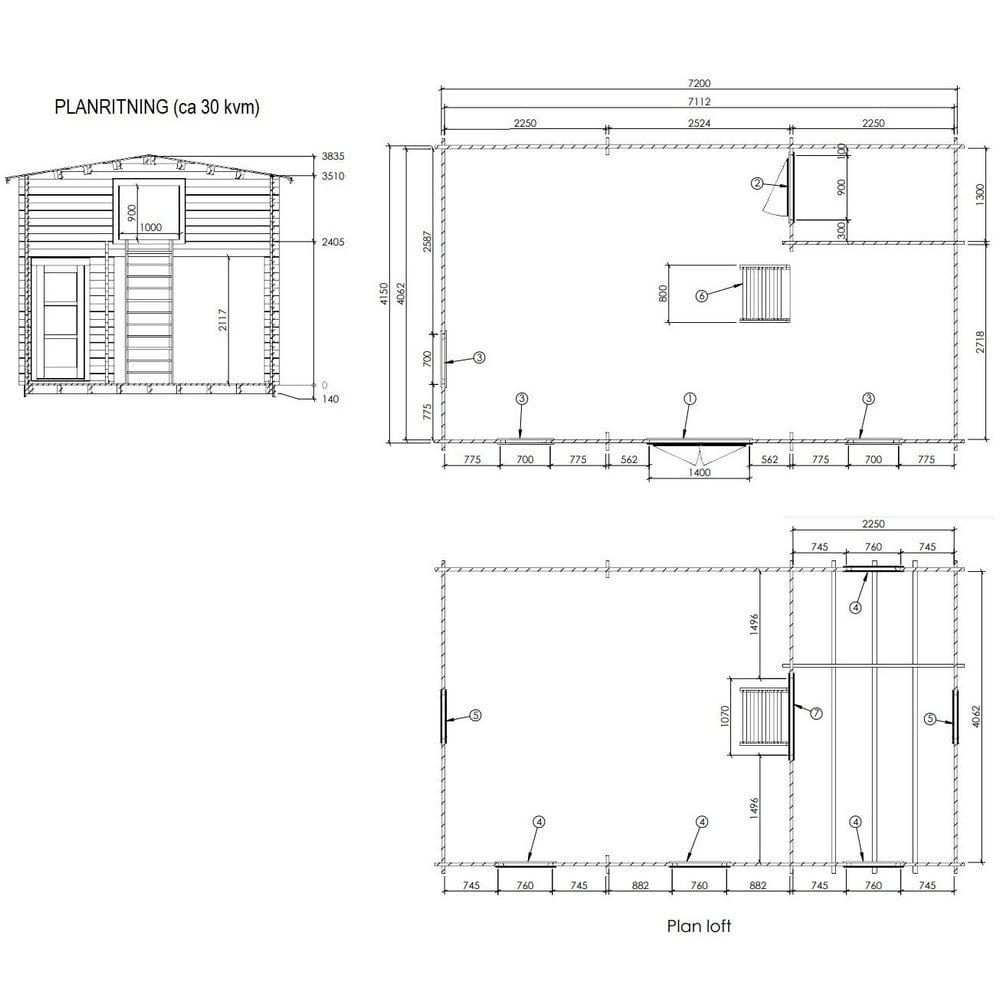

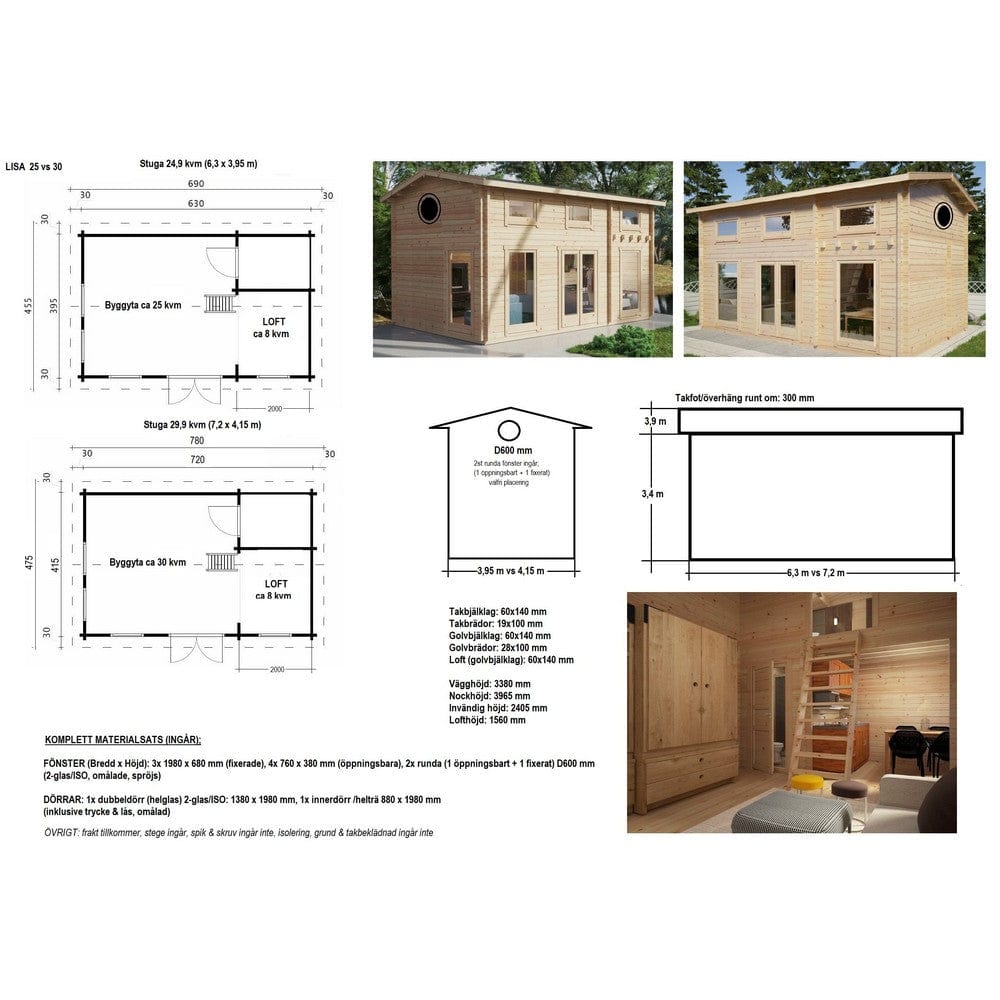

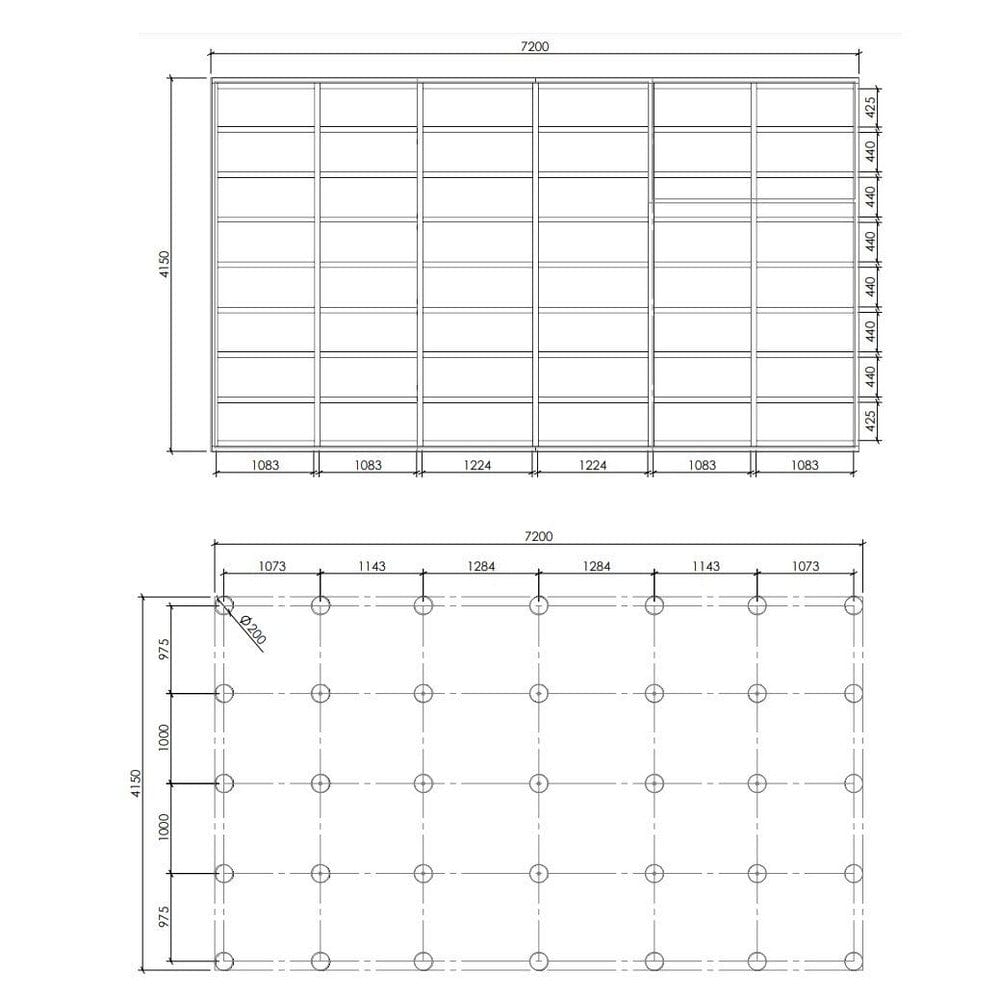

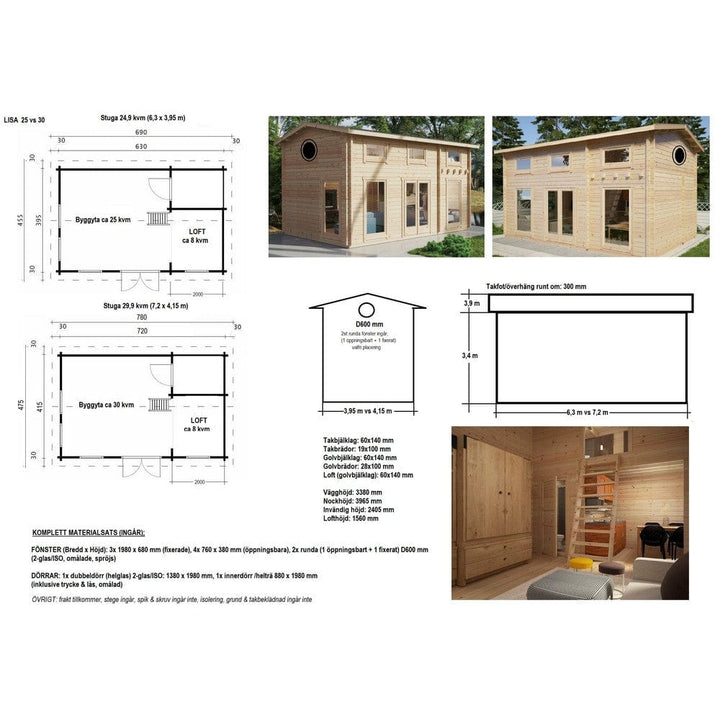

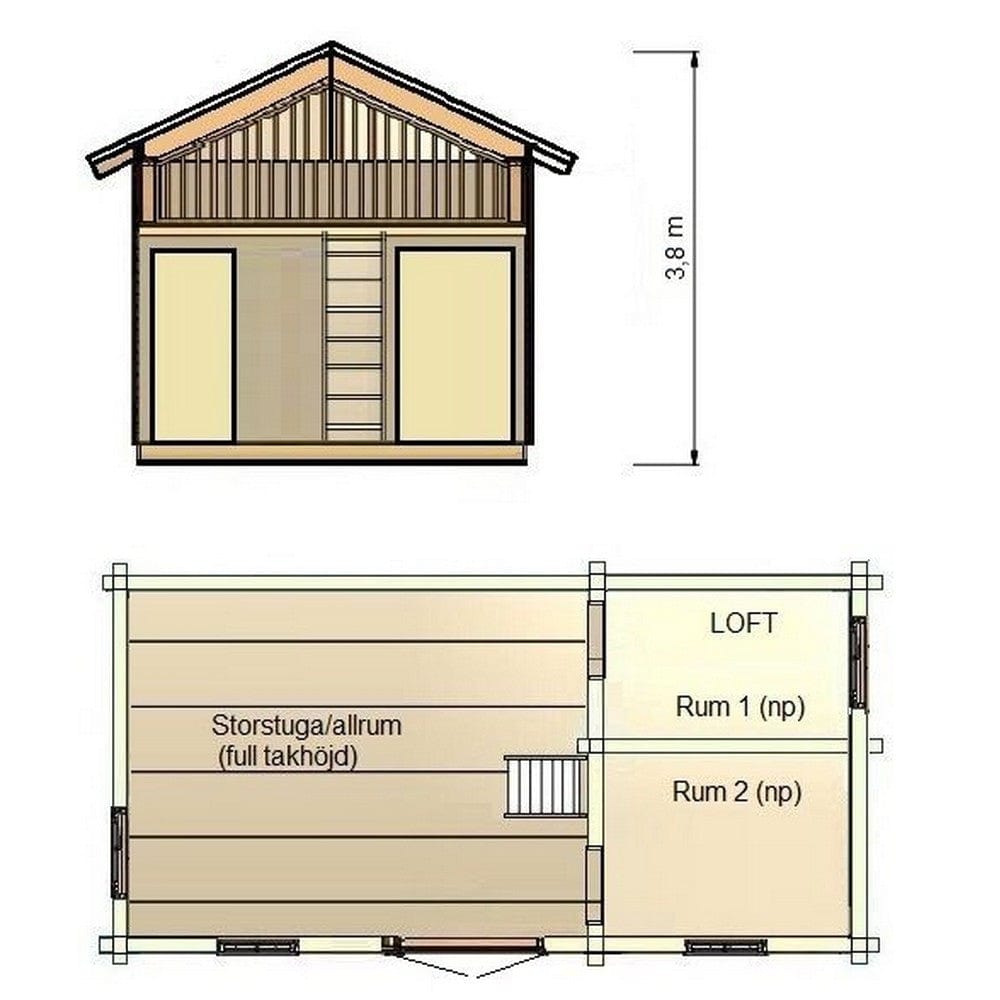

Floor plan: See example drawing
Building area: approx. 30 sqm
Living area: approx. 28.5 sqm + sleeping loft approx. 10 sqm
House type: Log-profiled loft cabin, optional timber thickness 44, 60 or 90 mm (walls)
Length: approx. 7.2 m
Width: approx. 4.15 m
Height: approx. 3.8 m
Building area: 29.9 sqm
Roof pitch: 9/10° (gable roof)
Roof load capacity: 240 kg/sqm
Frame: Planed and log-profiled wall profiles 44 x 130 mm
Floor: 28 mm finely planed on floor joists 60 x 140 mm. Available as "Option" 60x180/200 mm.
Roof: 19 mm x 100 mm planed rough-sawn boards on roof purlins 60 x 140 mm
Material (wood): Slow-grown Nordic spruce, untreated and unpainted timber

Not included: Roof covering, insulation, screws and nails
