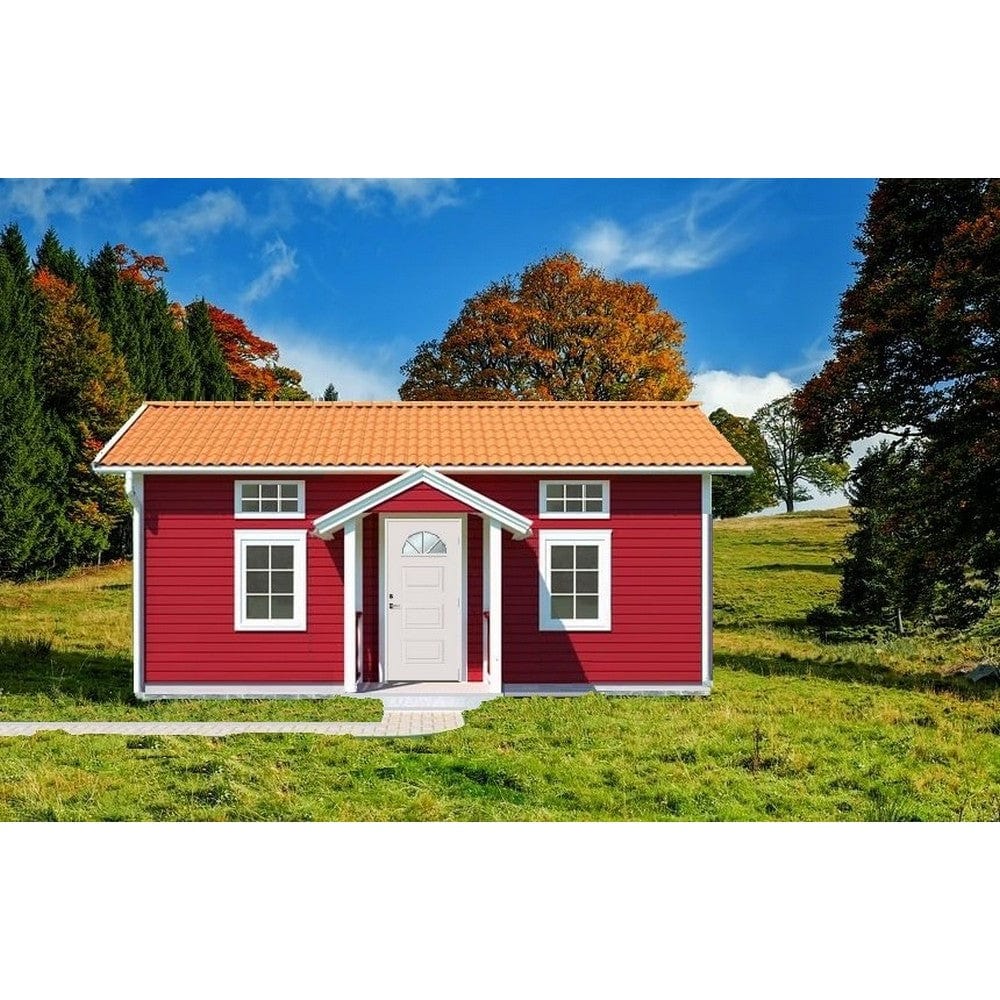

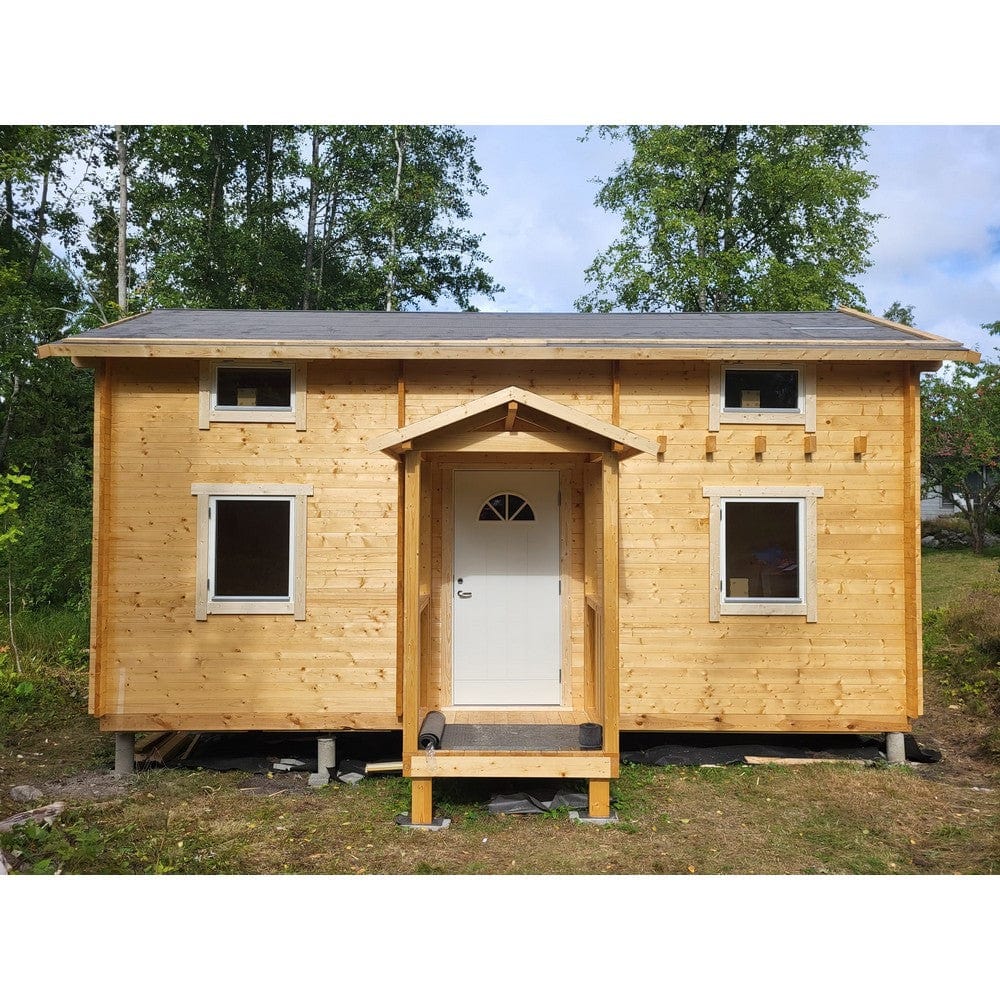

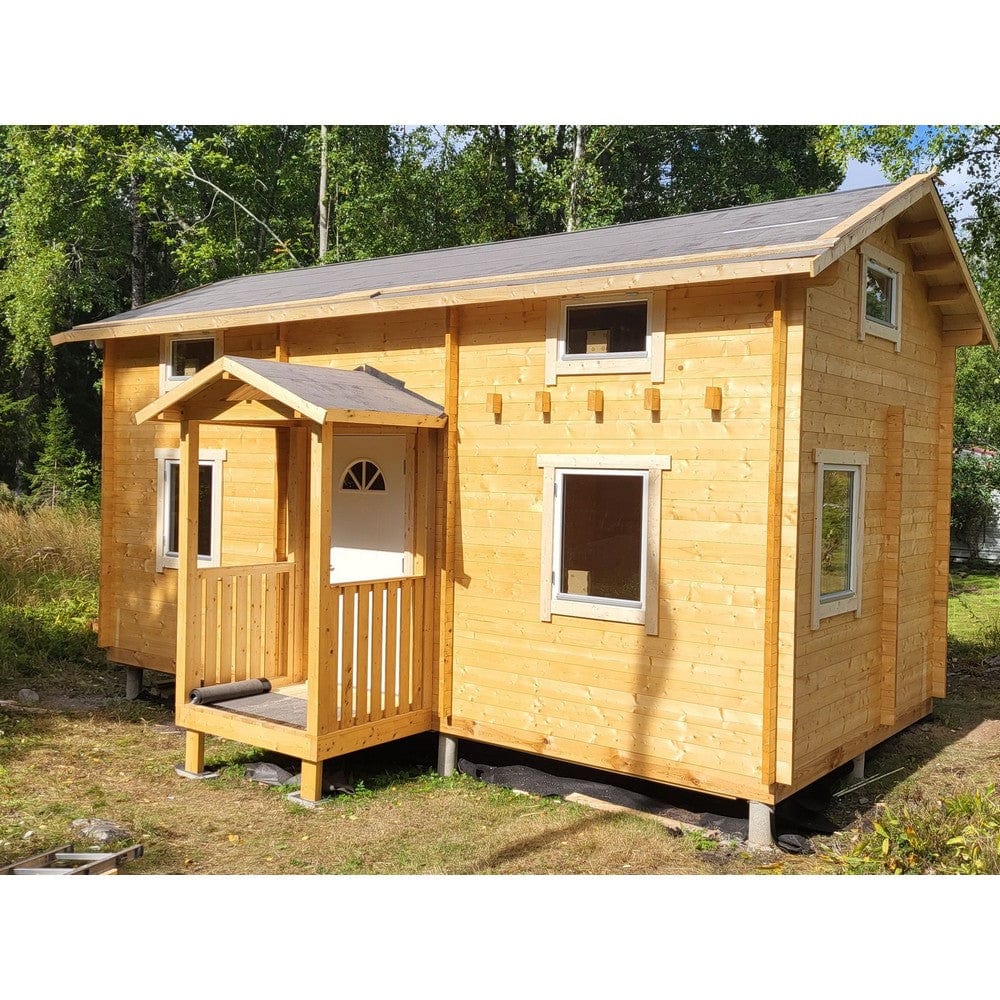

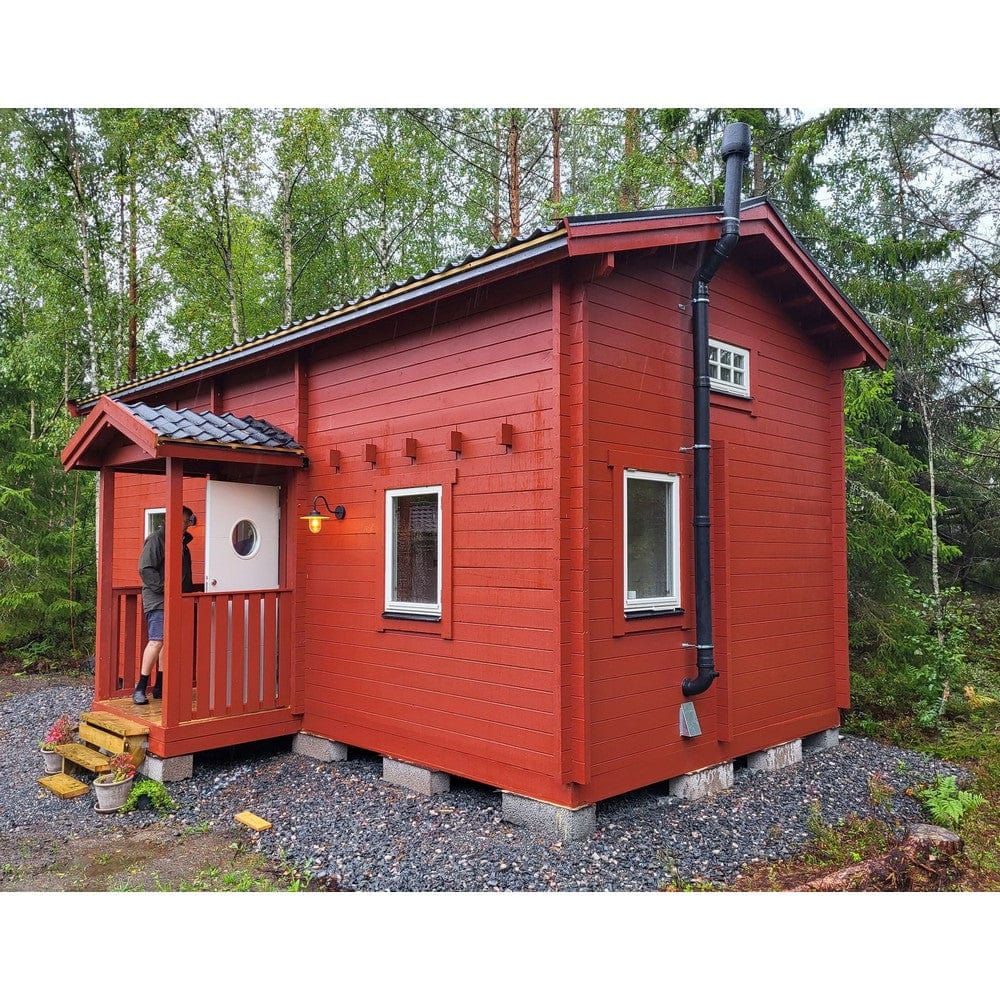

A very beautiful cabin that resembles a real house in its design.

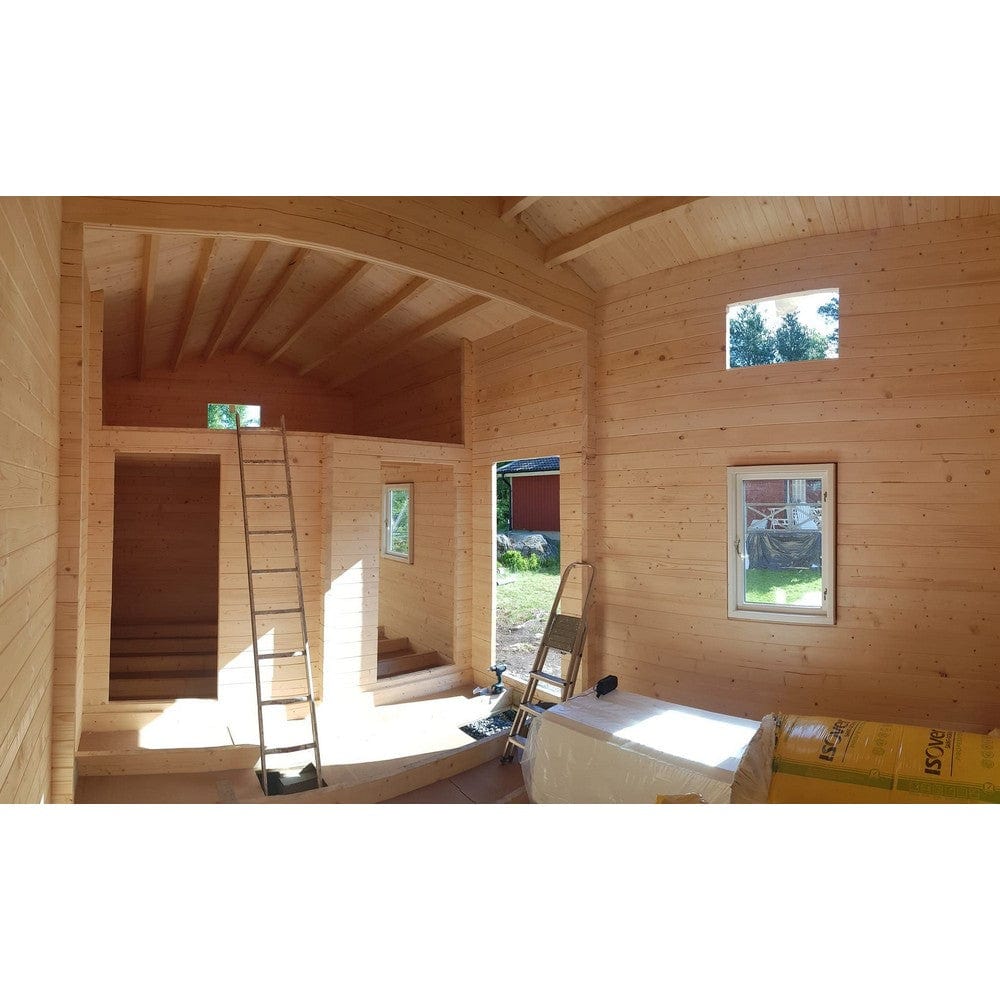

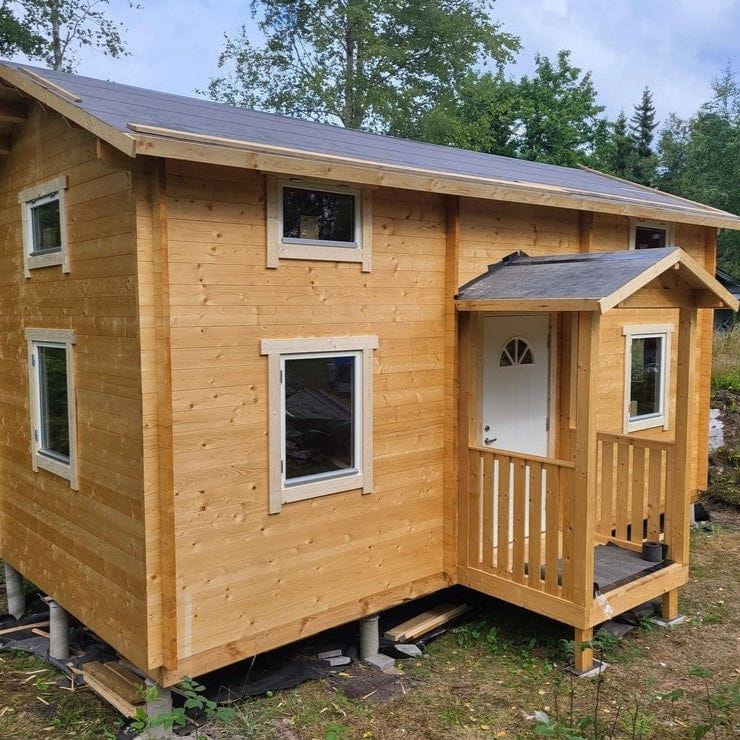

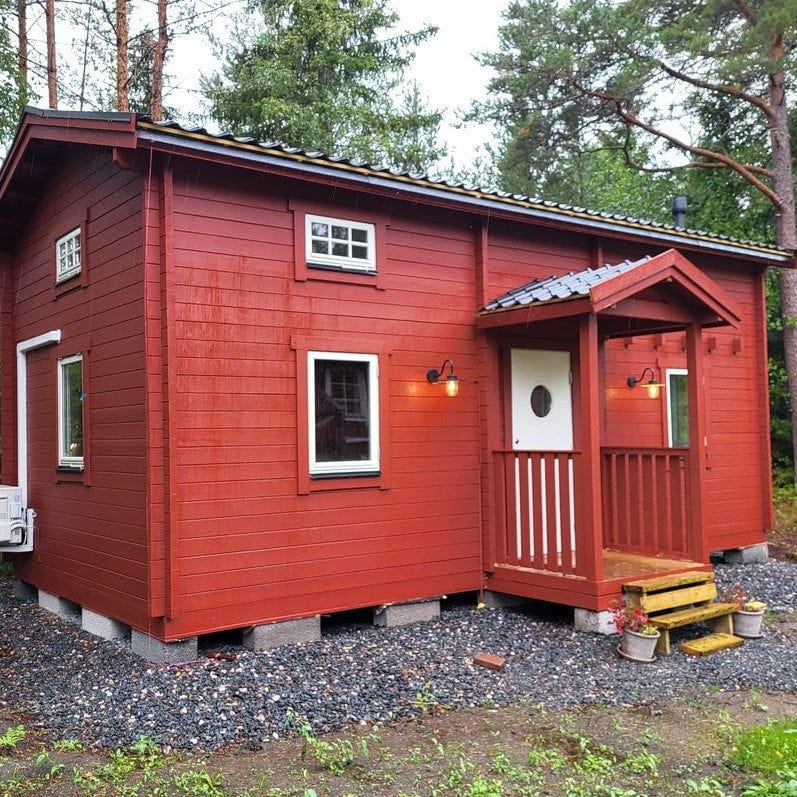

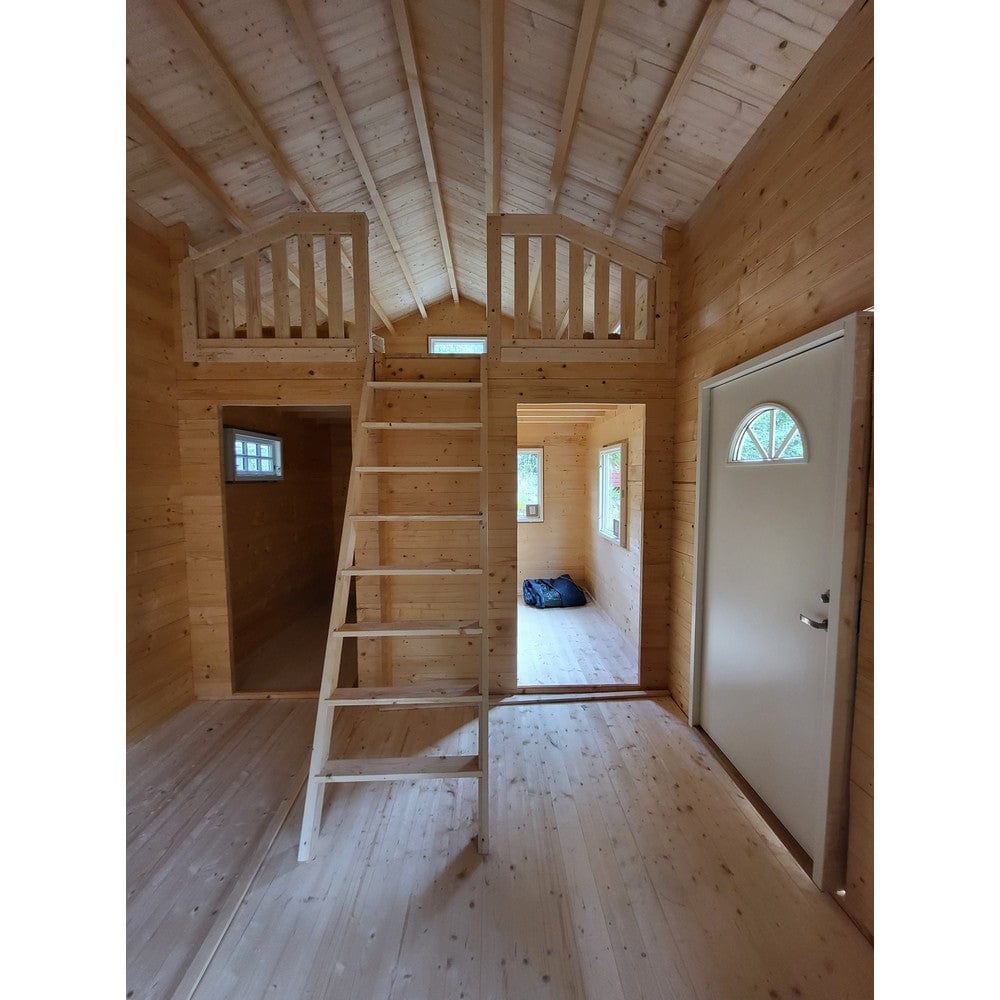

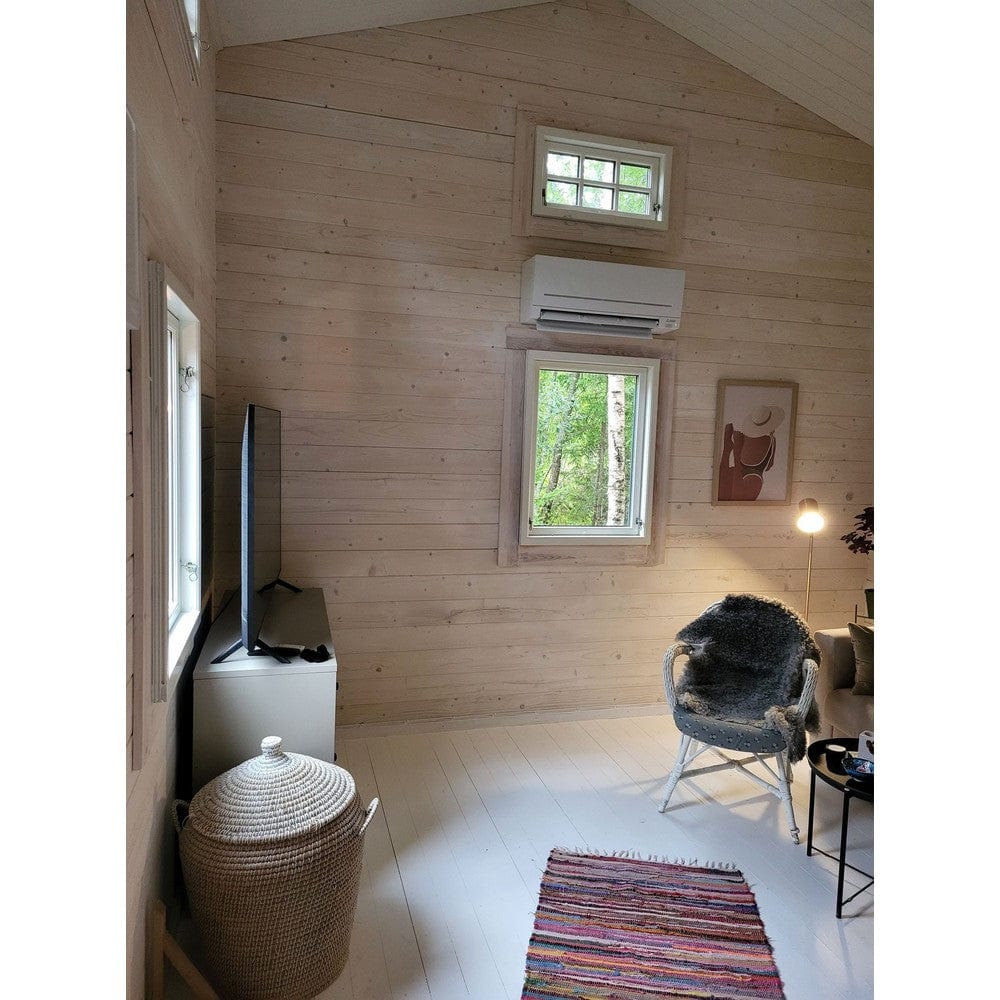

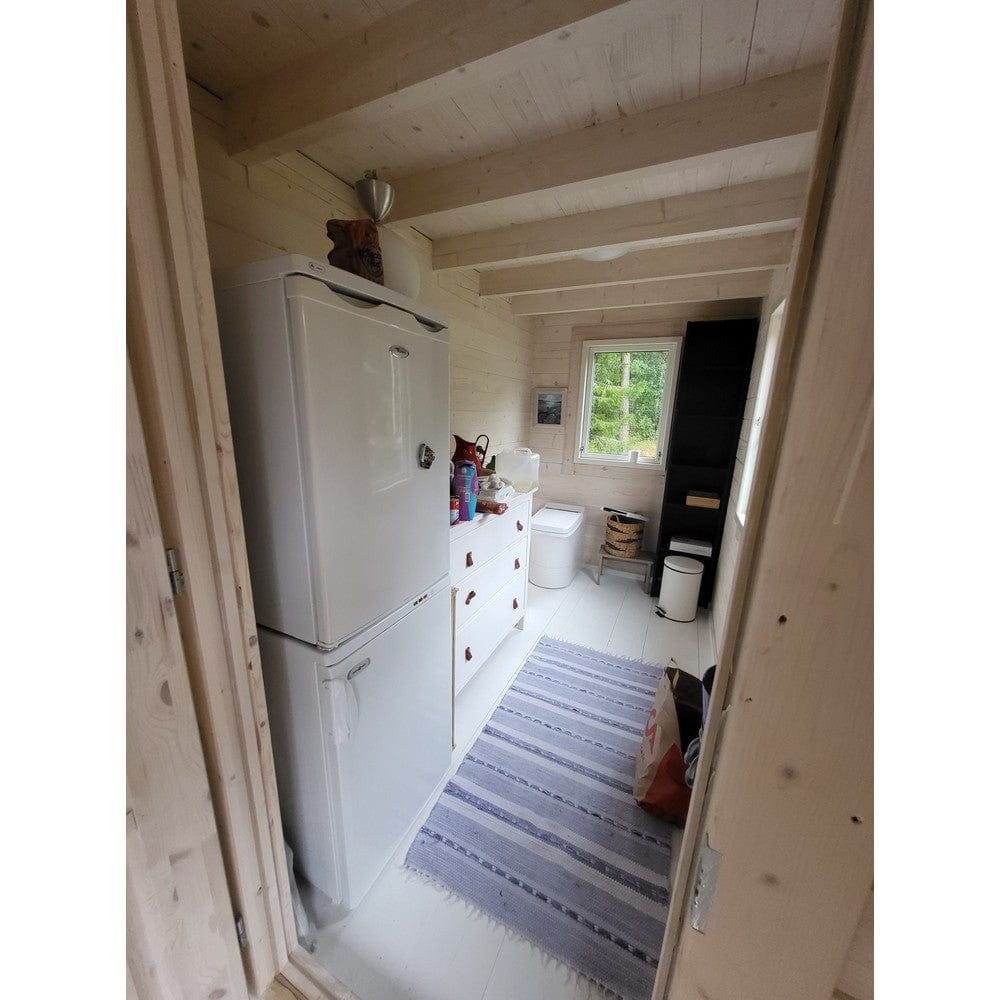

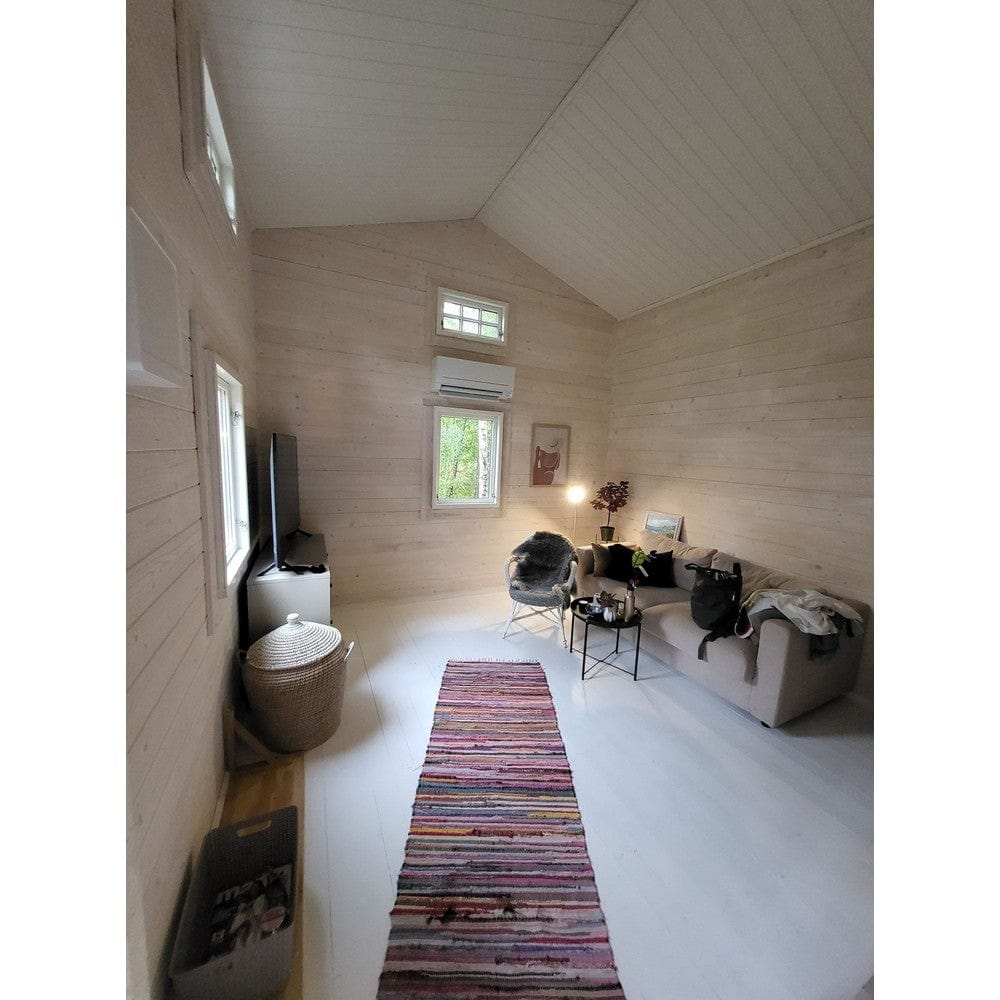

Torild is a luxurious 25 sqm "Attefall" cabin with an 8.5 sqm sleeping loft. Also available as a 30 sqm "Bolundare" cabin. It's like a traditional small house with a porch and a sleeping loft, very attractive. Optimal floor plan, with a living room/great room of approx. 14.8 sqm and two smaller rooms of approx. 4 sqm and 3.3 sqm respectively, which can accommodate both a WC and a kitchenette/kitchen, if desired.
- approx. 25 sqm on the ground floor and 8.5 sqm loft
- Floor and ceiling boards are finely planed and tongue-and-grooved for good dimensional stability
- The timber is durable slow-grown Nordic spruce
- Double glazing/ISO standard for windows and doors
Frame/timber thickness:
- Interlocking timber 44 x 130 mm, 60 x 130 mm or 90 x 130 mm timber thickness.
Roof:
- 19x100 mm smooth tongue and groove, finely planed and good fit for good stability
- Roof purlins pre-cut in 60 x 140 mm
- Verge boards rough sawn
- Fascia boards

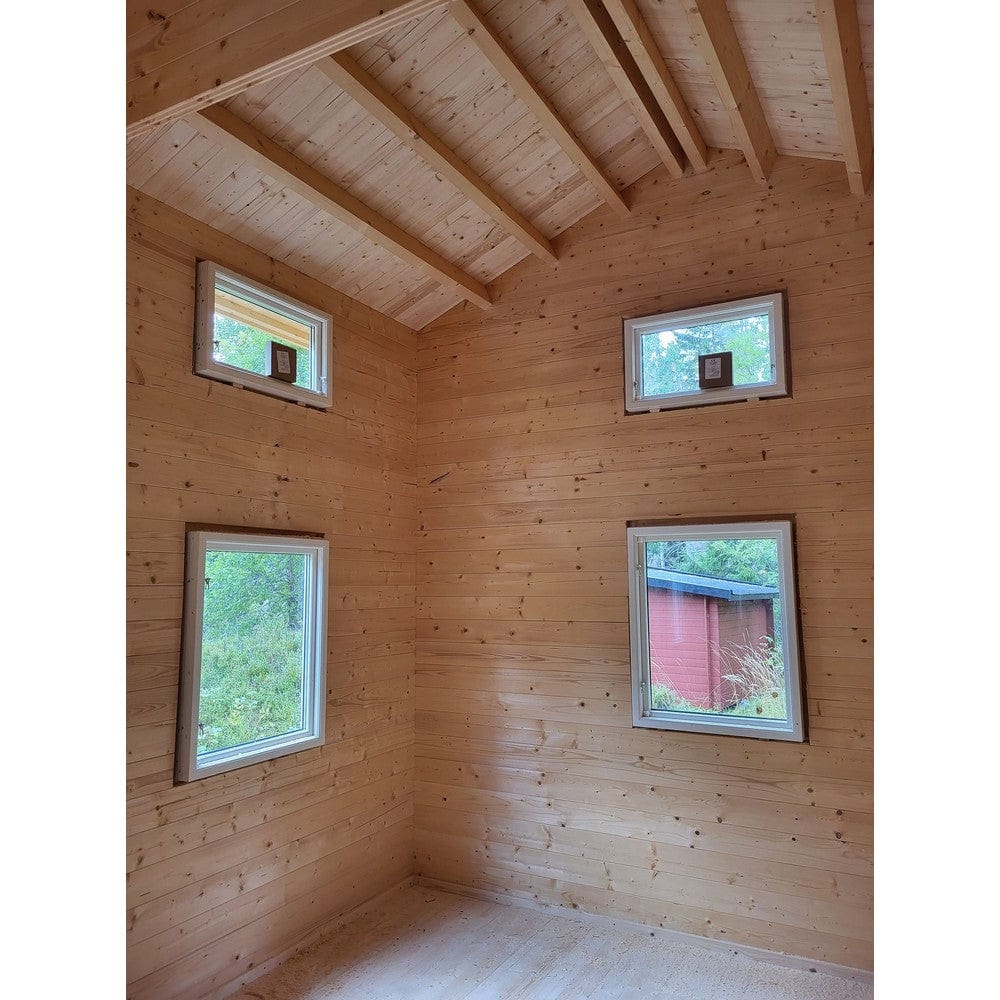

Windows:
- Exterior trim
- Openable windows: Double-glazed insulated windows. Optional: glazing bars, white painted, triple glazing.
- Handles/knobs/pulls and fittings
- Openable in 2 directions (tilt & turn)
Doors:
- Exterior trim
- Entrance door with window
- Wooden interior doors
- handle + cylinder lock + keys for interior doors. Optional for exterior doors.
- Adjustable door hinges
Floor:
- Floor joists 60 x 140 mm, pre-cut
- Floor in finely planed wood, 28 mm thick
- Skirting boards

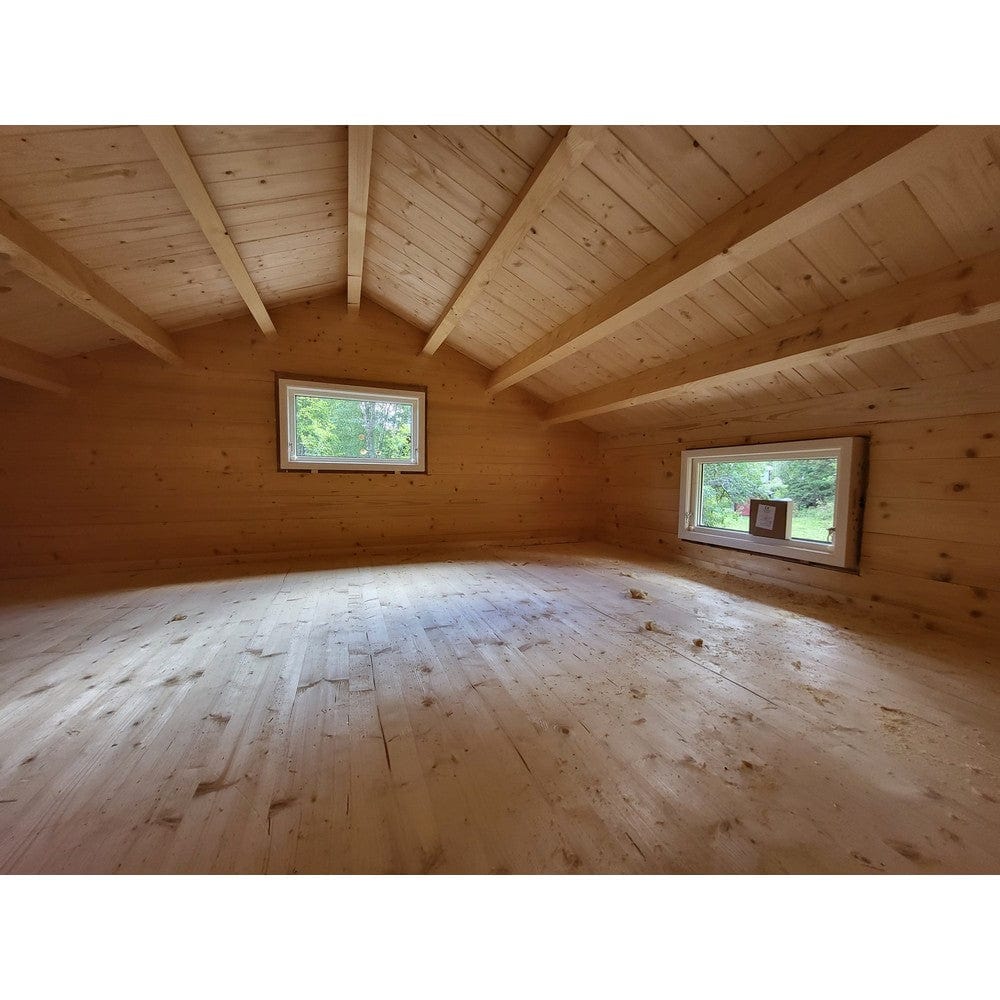

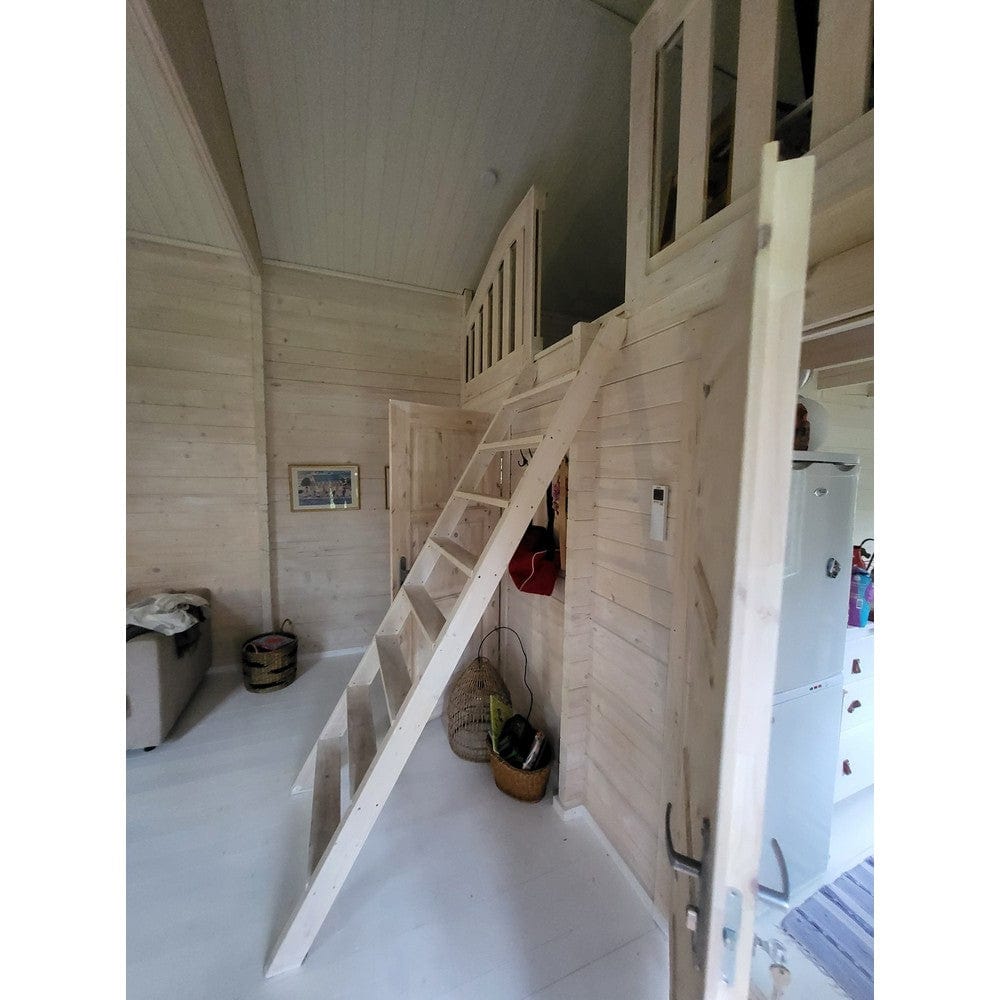

- Loft floor, finely planed wooden floor in 28 mm
Windows & doors:
- Openable windows: Double-glazed insulated windows.
-
Optional: Glazing bars, white painted, triple glazing.
- 1 pc. Entrance door (white painted with half-moon window): 1000 x 2000 mm insulated glass.
- Optional: handle & lock.
- 4 pcs. windows 760 x 1000 mm.
- 5 pcs windows 450 x 760 mm
Packaging (approx. dimensions):
- Packaging (approx. dimensions):
- Package 1: Dimensions L 6000 mm x W 1200 mm x H 250-900 mm,
- Package 2: Dimensions L 6000 mm x W 1200 mm x H 300-900 mm,
- Package 3: (depending on timber thickness)
Advantages:
- 1 year warranty
- Tongue-and-grooved roof & floor boards
- Heavily dimensioned roof purlins
- Heavy-duty floor joists
- Finely planed floor and ceiling boards
- Excellent fit for all parts
- Simple and quick assembly
- Marked, numbered and pre-cut parts
- Type of wood: Nordic spruce
- Genuine double glazing/ISO
- Interlocking walls with double notches/tongue and groove
- Parts delivered untreated
- Tilt & turn windows
- Window & door frames (interior included)
- Adjustable door hinges
Specifications:

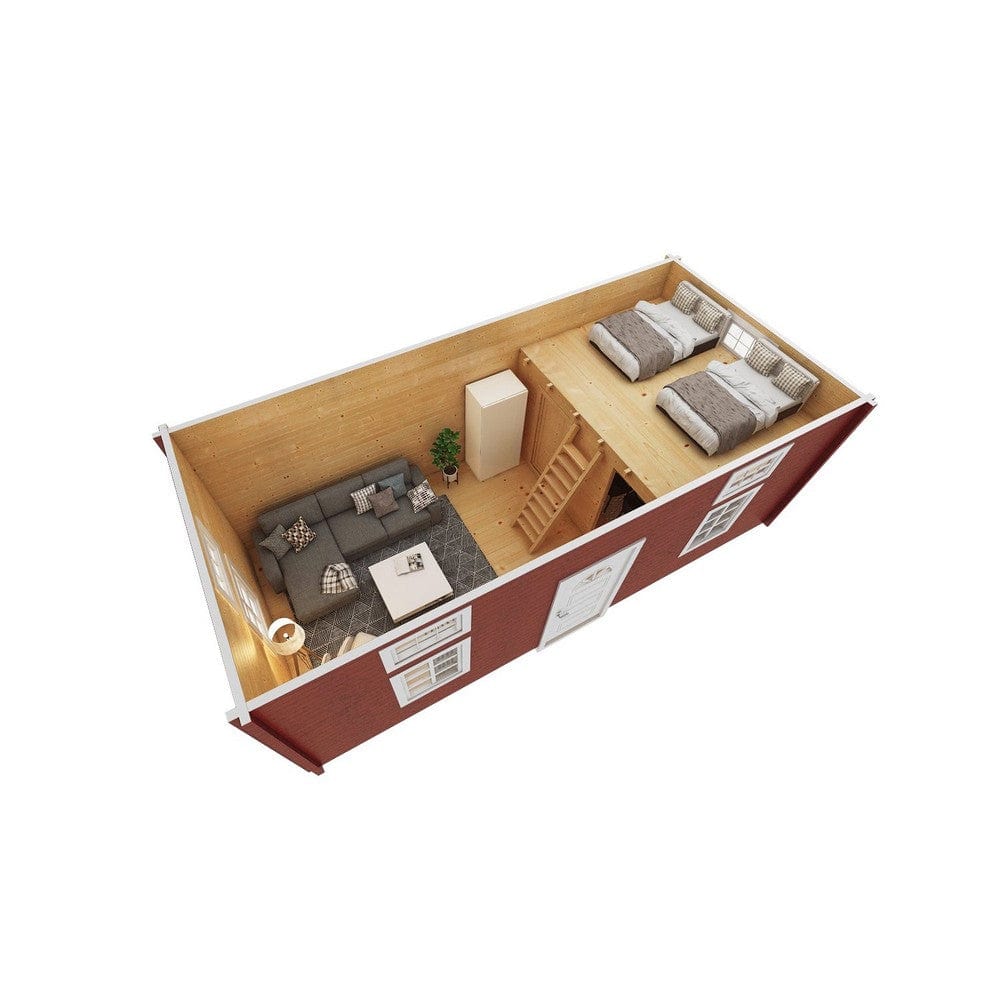

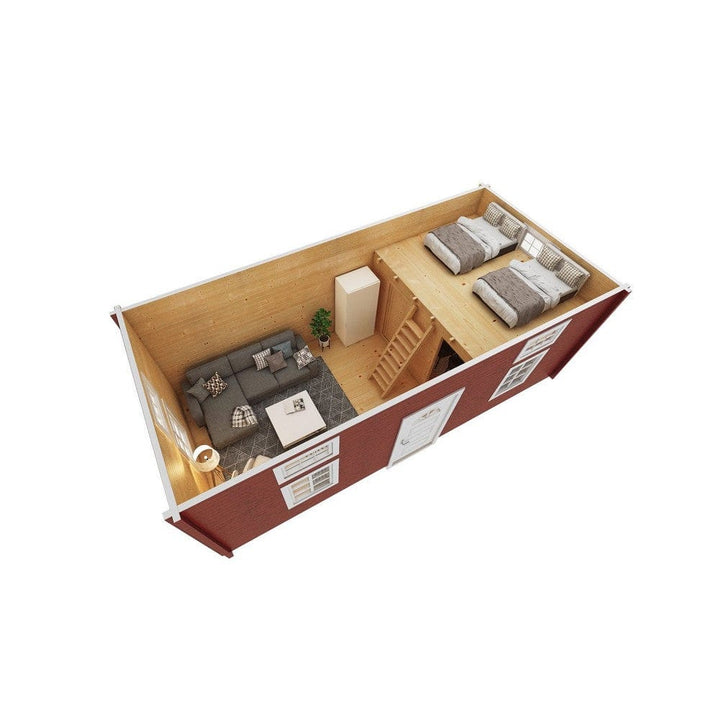

Floor plan: See example drawing
Building area: 25 sqm
Living area: approx. 24.5 sqm + sleeping loft 8.5 sqm
House type: Interlocking timber loft cabin, optional timber thickness 44, 60 or 90 mm (walls)
Length: approx. 7 m
Width: approx. 3.5 m
Height: approx. 3.9 m
Building area: 25 sqm
Roof pitch: 26°
Roof load capacity: 250 kg/sqm
Frame: Planed and interlocking timber wall profiles 44 x 130 mm, 60 x 130 or 90 x 130 mm
Floor: 28 mm finely planed on floor joists 60 x 140mm
Roof: 19 mm x 100 mm planed rough tongue and groove on roof purlins 60 x 140mm
Material (wood): Slow-grown Nordic spruce, untreated and unpainted timber
Not included: Roof covering, insulation, screws and nails
