JM Stugor & Fritid Log frame Attefall house 25sqm

Design it yourself.

Log frame "Attefallhus" of 25 sqm including loft and partition wall but without windows and doors. Full log walls, no holes for windows and doors.

• approx. 25 sqm on the ground floor and 10 sqm loft

• Floor and ceiling boards are finely planed and grooved for good dimensional stability

• The timber is made of durable slow-grown Nordic spruce

Frame/timber thickness:

• Corner-jointed timber 44 x 130 mm, 60 x 130 mm or 90 x 130 mm timber thickness.

Roof:

• 19x100 mm tongue and groove, finely planed and well-fitting for good stability

• Roof purlins pre-cut in 60 x 140 mm.

• Wind boards rough sawn

• Eaves boards

Floor:

• Floor joists 60 x 140 mm, pre-cut

• Finely planed wooden floor, 28 mm thick

• Skirting boards

• Loft floor, finely planed wooden floor, 28 mm

Packaging (approximate dimensions):

• Package 1: Dimensions L 6000 mm x W 1200 mm x H 250-900 mm,
• Package 2: Dimensions L 6000 mm x W 1200 mm x H 300-900 mm.
• Total weight (approx. kg) 44 mm: 2800 kg, 60 mm: 3600 kg, 90 mm: 4600 kg

Advantages:

• 1-year warranty

• Tongue and groove ceiling & floorboards

• Heavily dimensioned roof purlins

• Strong floor joists

• Finely planed floor and ceiling boards

• Very good fit on all parts

• Simple and quick assembly

• Marked, numbered and pre-cut parts

• Wood type: Nordic spruce

• Genuine double glazing/ISO

• Corner-jointed walls with double hooks/tongue and groove

• Parts delivered untreated

Specifications:

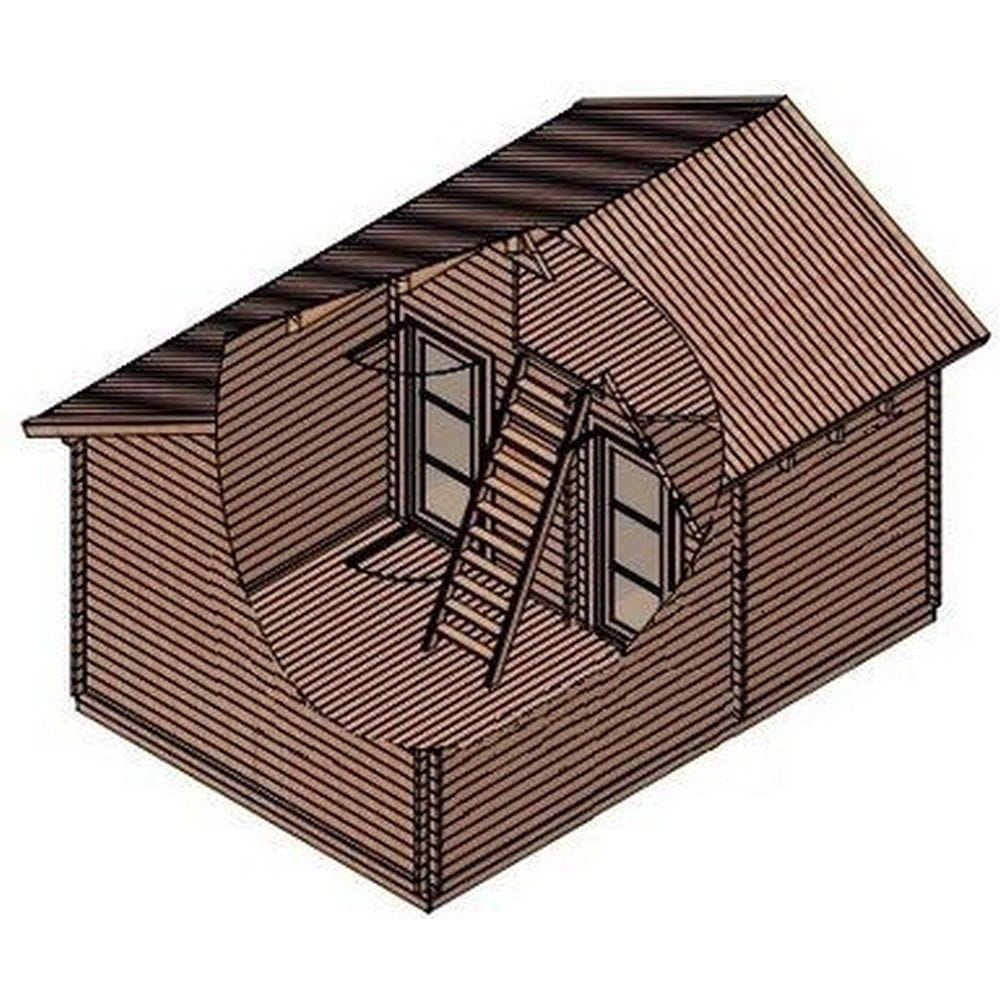

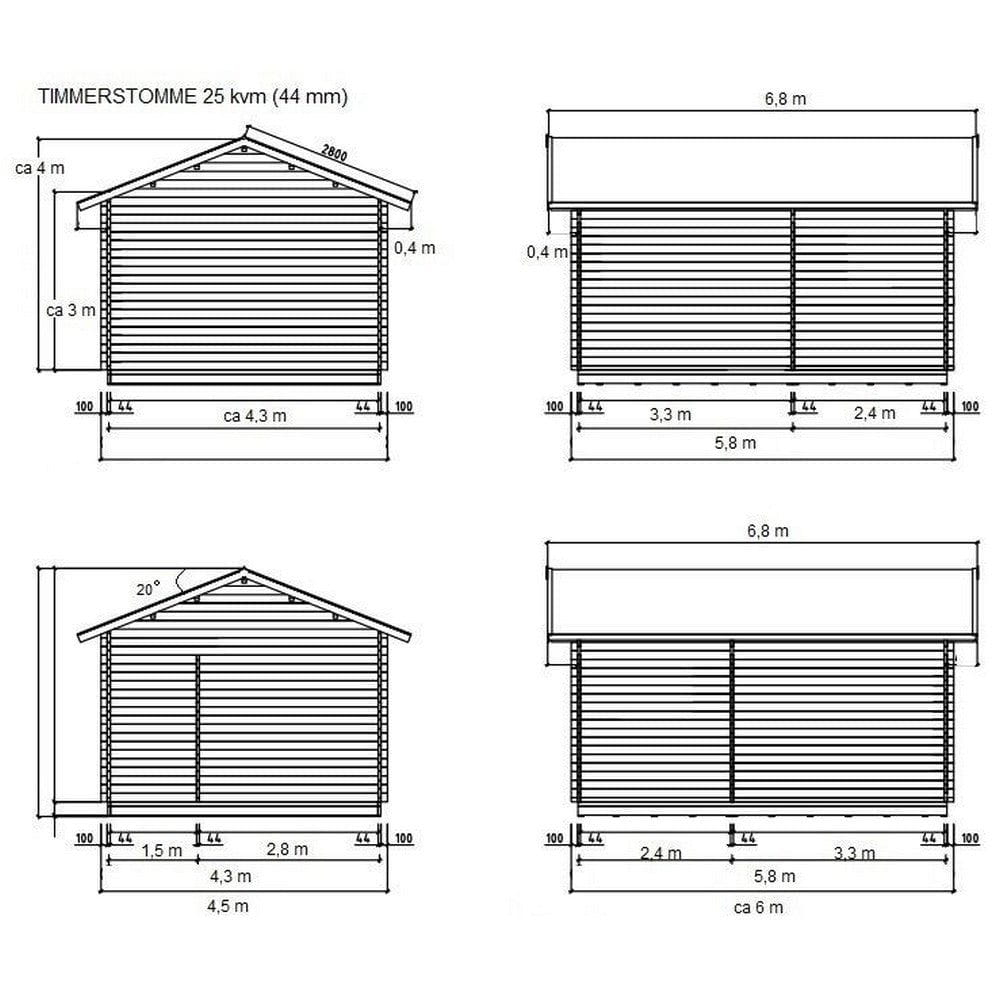

Layout: See example drawing
Building area: approx. 25 sqm
Living area: approx. 24.5 sqm + sleeping loft approx. 10 sqm
House type: Corner-jointed loft cabin, optional timber thickness 44, 60 or 90 mm (walls)
Length: 25 sqm: 5.8 m
Width: 25 sqm: 4.3 m
Height: approx. 4 m
Building area: 25 sqm
Roof pitch: 20°
Roof load capacity: 250 kg/sqm
Frame: Planed and corner-jointed wall profiles 90 x 130 mm
Floor: 28 mm finely planed on floor joists 60 x 140 mm
Roof: 19 mm x 100 mm planed rough boarding on roof purlins 60 x 160 mm
Material (wood): Slow-grown Nordic spruce, untreated and unpainted timber

Not included: Windows & doors, roof covering, insulation, screws and nails
