JM Cabins & Leisure Timber Frame Bolundare 30sqm

Design it yourself.

Log frame "Bolundare" of 30 sqm including loft and partition wall but without windows and doors. Full log walls, no holes for windows and doors.

• Footprint 30 sqm and 10 sqm loft

• Floor and ceiling boards are finely planed and tongued and grooved for good dimensional stability

• The timber is durable slow-grown Nordic spruce

Frame/timber thickness:

• Interlocking logs 44 x 130 mm, 60 x 130 mm or 90 x 130 mm timber thickness.

Roof:

• 19x100 mm smooth tongue and groove, finely planed and good fit for good stability

• Roof purlins pre-cut in 60 x 140 mm.

• Wind boards rough sawn

• Eaves boards

Floor:

• Floor joists 60 x 140 mm, pre-cut

• Floor in finely planed wood in 28 mm thickness

• Skirting boards

• Loft floor, finely planed wooden floor in 28 mm

Packaging (approximate dimensions):

• Package 1: Dimensions L 6000 mm x W 1200 mm x H 250-900 mm,
• Package 2: Dimensions L 6000 mm x W 1200 mm x H 300-900 mm.
• Total weight (approx. kg) 44 mm: 3600 kg, 60 mm: 4500 kg, 90 mm: 5600 kg.

Advantages:

• 1 year warranty

• Tongued and grooved ceiling & floorboards

• Heavily dimensioned roof purlins

• Heavy floor joists

• Finely planed floor and ceiling boards

• Excellent fit of all parts

• Easy and quick assembly

• Marked, numbered and pre-cut parts

• Type of wood: Nordic spruce

• Genuine double glazing/ISO

• Interlocking log walls with double grooves/tongue and groove

• Parts delivered untreated

Specifications:

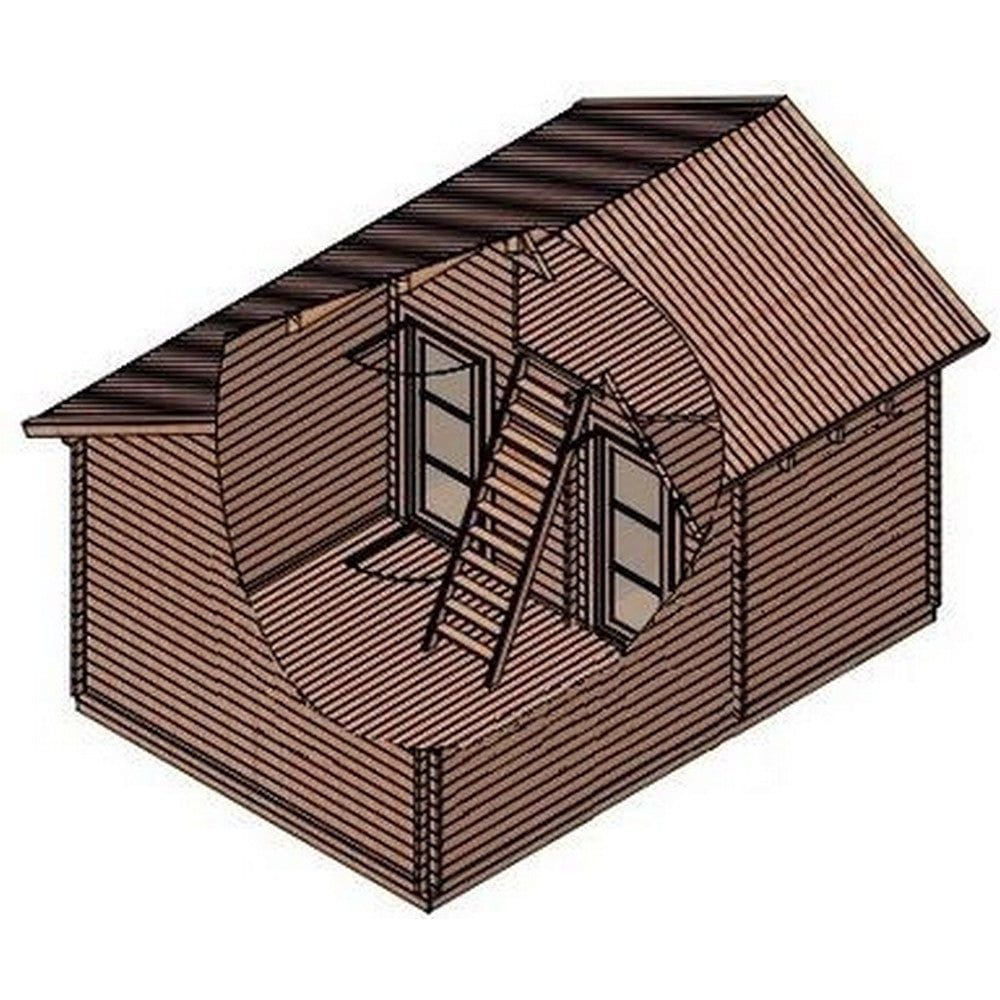

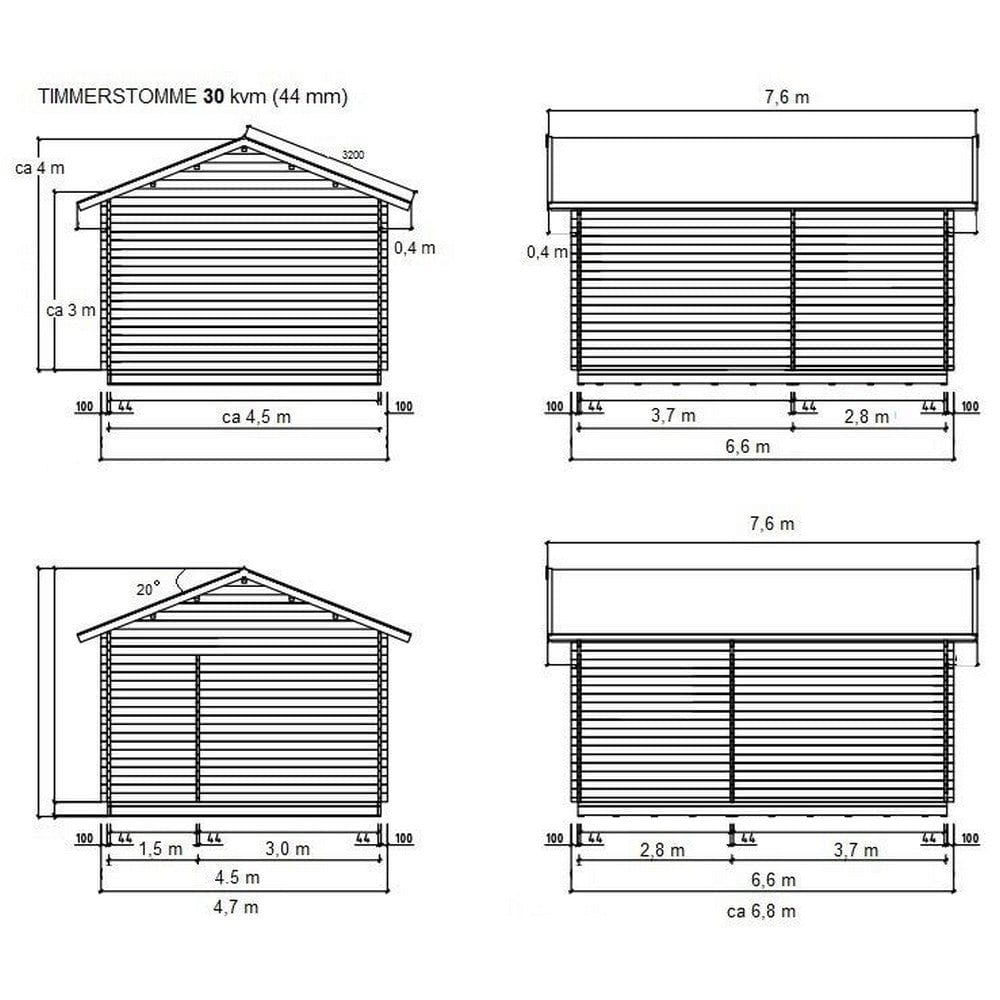

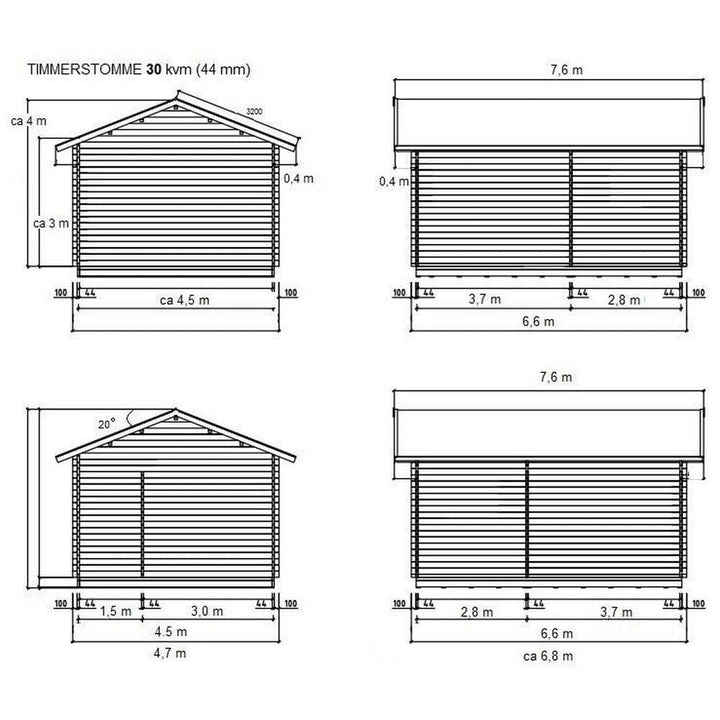

Floor plan: See example drawing
Footprint: approx. 30 sqm
Living area: approx. 29.5 sqm + sleeping loft approx. 12 sqm
House type: Log cabin with loft, optional timber thickness 44, 60 or 90 mm (walls)
Length: 6.6 m
Width: 4.5 m
Height: approx. 4 m
Footprint: 30 sqm
Loft: approx. 12 sqm
Roof pitch: 20°
Roof load capacity: 250 kg/sqm
Frame: Planed and interlocking log wall profiles 60 x 130 mm
Floor: 28 mm finely planed on floor joists 60 x 140 mm
Roof: 19 mm x 100 mm planed rough boarding on roof purlins 60 x 140 mm
Material (wood): Slow-grown Nordic spruce, untreated and unpainted timber

Not included: Windows & doors, roof covering, insulation, screws and nails
