- Product type: Cast iron stove
- Model: Levante
- Fuel: Wood
- Nominal heat output: 10 kW
- Heat output range: 7–13 kW
- Efficiency: 78 %
- CO emissions: 0.04 %
- NOx: 154 mg
- OGC: 51 mg
- Particulates: 26 mg
- Heating volume: 222 m³
- Heating area: 89 m²
- Dimensions (W × H × D): 720 × 710 × 591 mm
- Firebox (W × H × D): 520 × 300 × 270 mm
- Weight: 115 kg
- Max log length: 50 cm
- Flue connection: Ø150 mm
- Exterior material: Cast iron
- Firebox lining: Vermiculite
- Features: Perfect Combustion, double combustion, glass cleaning system, cleaning access
- CE marking: Yes. Documentation: declaration of performance (DoP)
Versions
| Handle | VillaHome SKU |
|---|---|
| Silver-colored | KAM-302050000000 |
| Black | KAM-3020530000 |

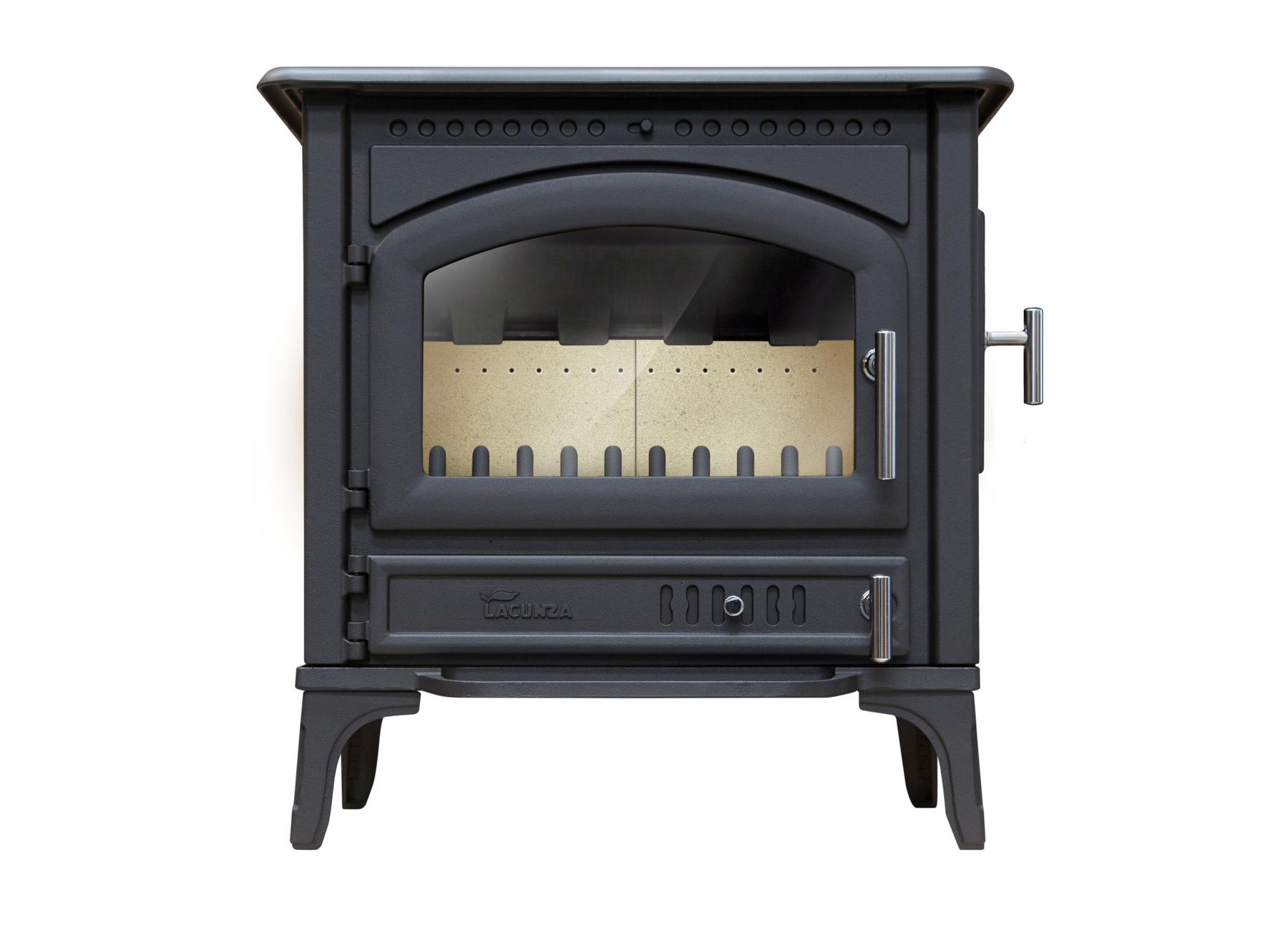

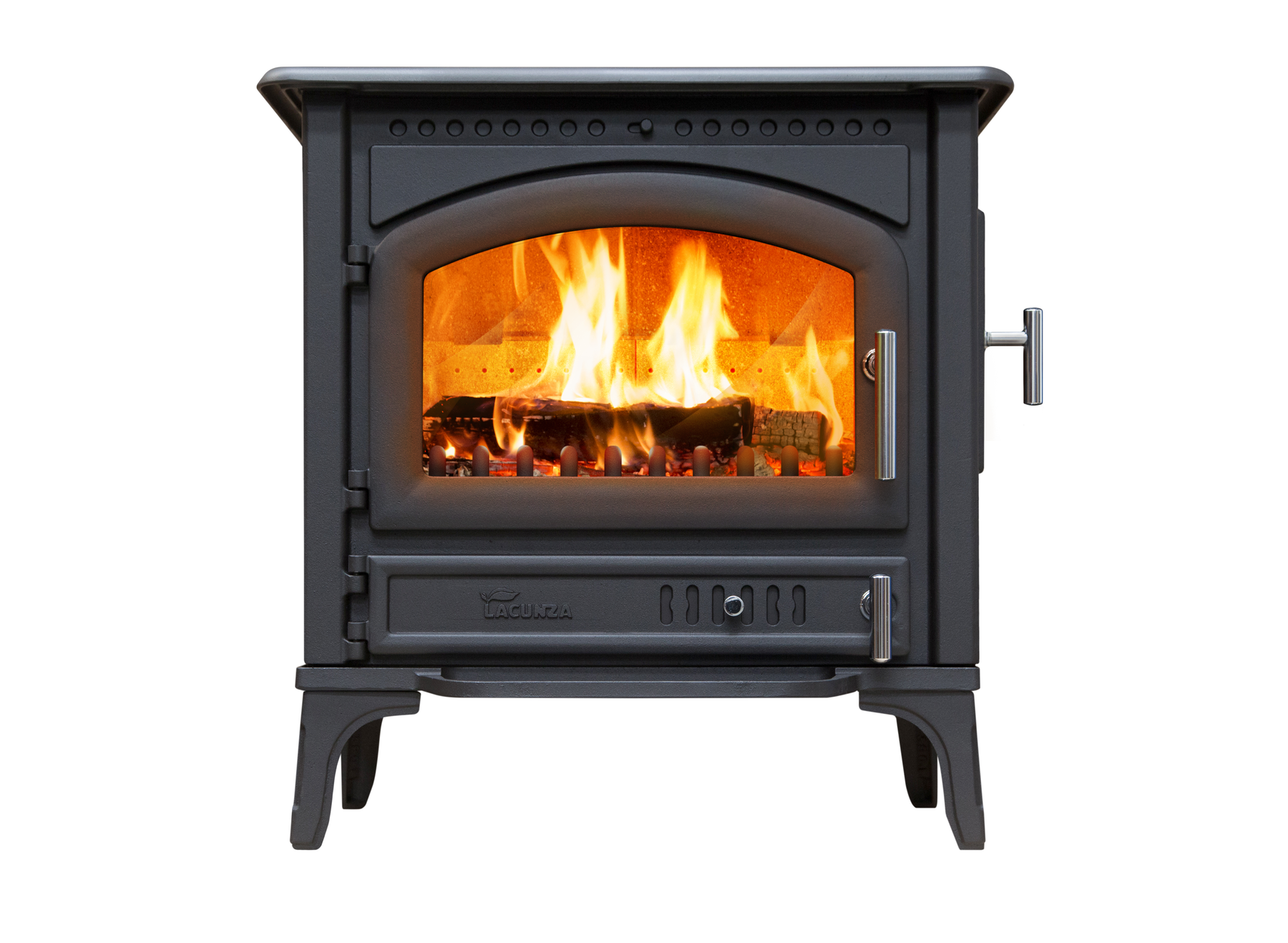

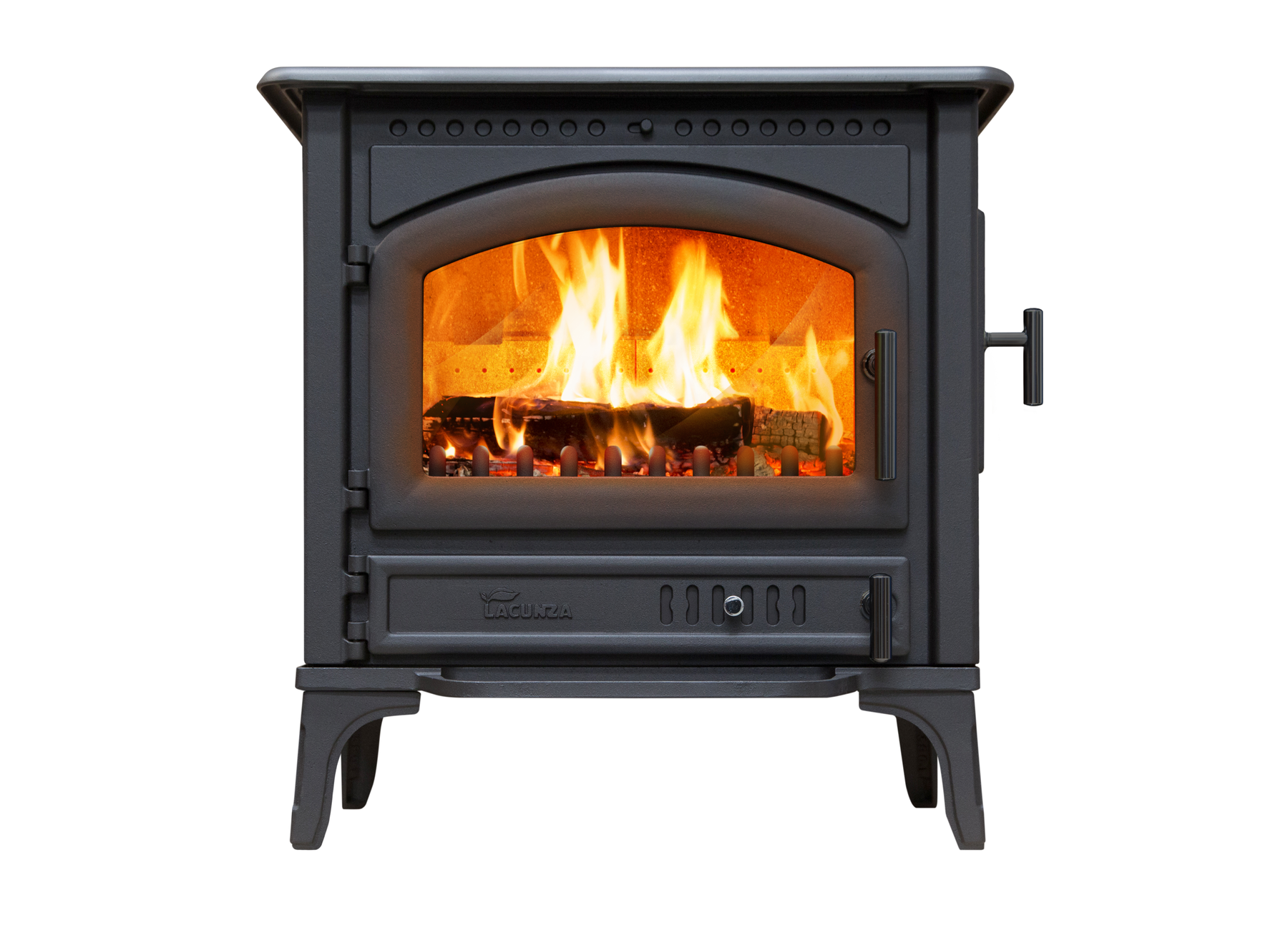

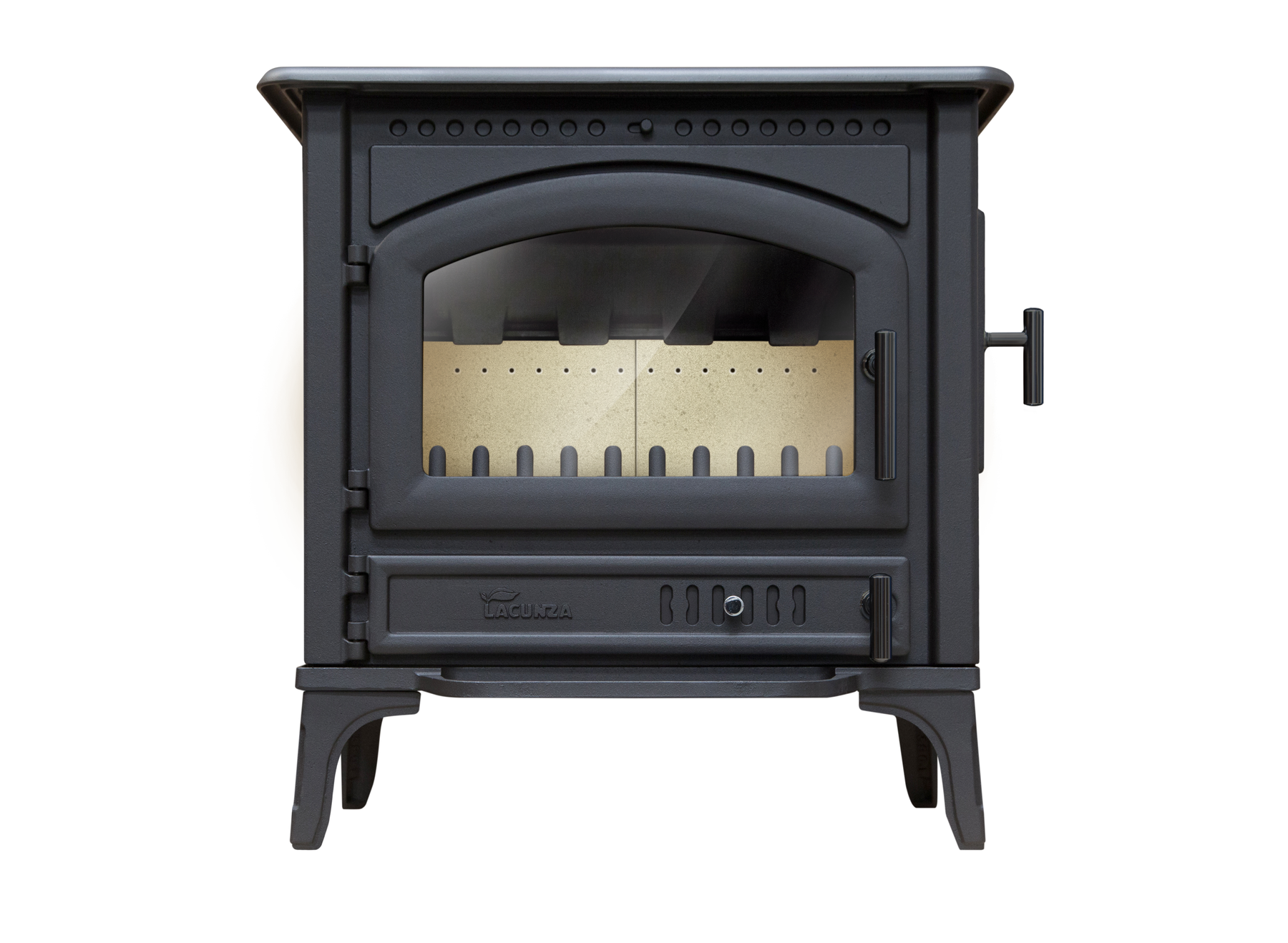

Lacunza Levante is a compact cast iron stove with softly rounded shapes, classically profiled details and a wide glass door. It has a more traditional look than a straight steel stove, while the glass front provides a good view into the firebox.

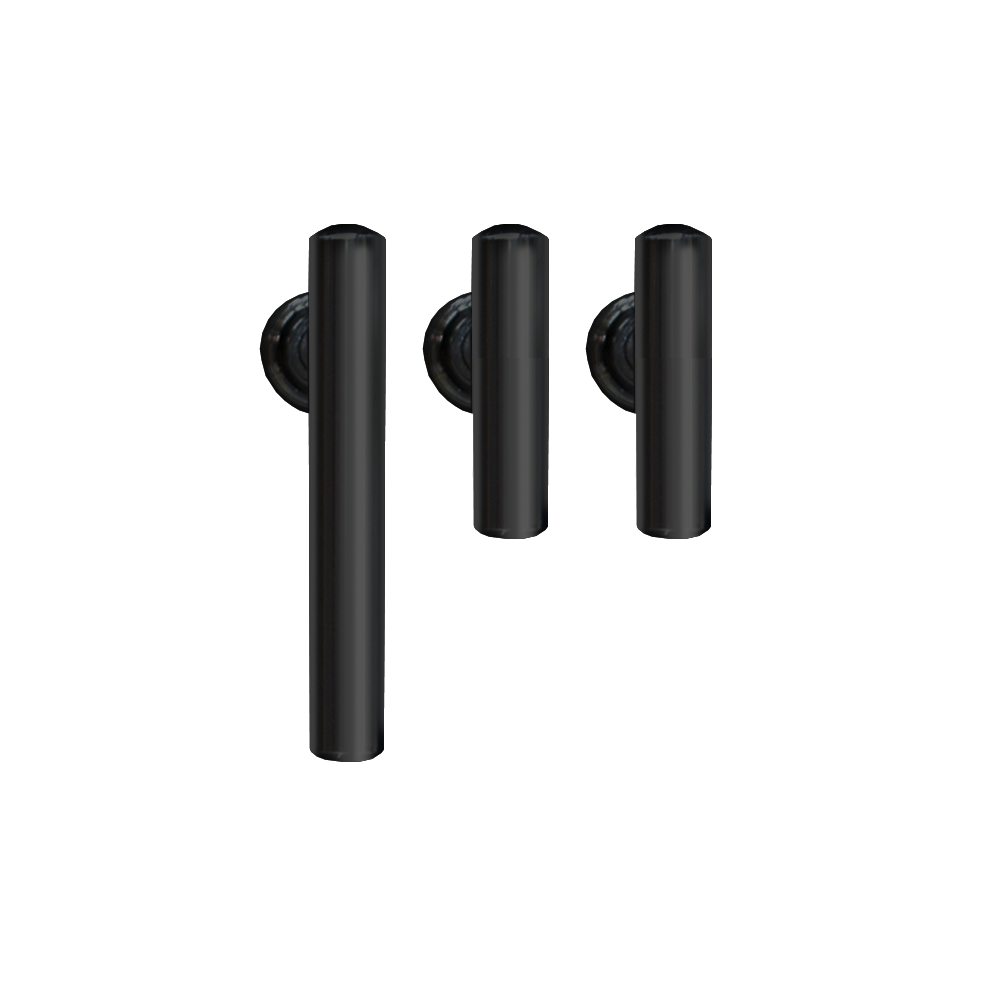

Choose between silver-colored and black door handles. Both versions have the same cast iron construction with vermiculite in the firebox, double combustion and air flushing of the glass. The choice concerns the look of the handles, not different power or size of the stove.
Levante is suitable if you want a relatively low cast iron stove with distinct material details. Check the chimney, floor protection and safety distances, and make sure that the glass door and ash drawer can be opened and cleaned without furniture being too close.
Choose Levante with the right handle
Lacunza Levante has the same rounded cast iron body and firebox in both versions. The difference is the visible door handle: silver-coloured or black. Choose the colour in the variant selector; the handle finish does not change the stove's output or size. It is a decorative difference, not different firebox constructions.
Placement and lighting
Follow Lacunza's model manual for flue connection, floor protection, load-bearing capacity and safety distances. The wide cast iron front needs space to open safely. Use dry, untreated wood within the manufacturer's recommendations and start with smaller fires during the first lighting. Ventilate if new surface materials emit odours.
Wood burning and glass cleaning
The model has double combustion and Extra Clean Glass, which directs air along the glass surface. Keep the airways clear and protect the internal vermiculite from impacts when wood is loaded. Allow the firebox to cool completely before cleaning the glass, rust and ash pan. Use gentle tools on the cast iron and glass.
Chimney sweeping and service
Cleaning Access provides access to the flue passages and Lacunza states that the deflectors can be removed by hand without tools. Follow the manual when reassembling. Regularly check the door seal, handle mounting, smoke connection and chimney, and have chimney sweeping carried out according to the applicable intervals.
