- Product type: Wood-burning cast iron insert
- Series/model: Abodi
- Fuel: Wood
- Nominal output: 15.5 kW
- Output range: 11–20 kW
- Efficiency: 77 %
- CO emissions: 0.12 %
- NOx: 85 mg
- OGC: 75 mg
- Particulates: 38 mg
- Heating volume: 344 m³
- Heating area: 138 m²
- Dimensions (W × H × D): 912 × 800 × 612 mm
- Firebox (W × H × D): 700 × 500 × 435 mm
- Weight: 276 kg
- Max log length: 65 cm
- Flue connection: Ø200 mm
- Exterior material: Cast iron
- Firebox material: Cast iron
- Ventilation: Eolo System with centrifugal fan
- Air control: Speed and air direction
- Features: Perfect Combustion, double combustion, Extra Clean Glass, Cleaning Access, ash drawer, grate and deflector
- Versions at VillaHome:
- Standard hinged doors – SKU KAM-304030000000, EAN 1000000001105
- Retractable side doors – SKU KAM-304030000200, EAN 1000000000702
- CE marking: Yes. Documentation: declaration of performance (DoP)

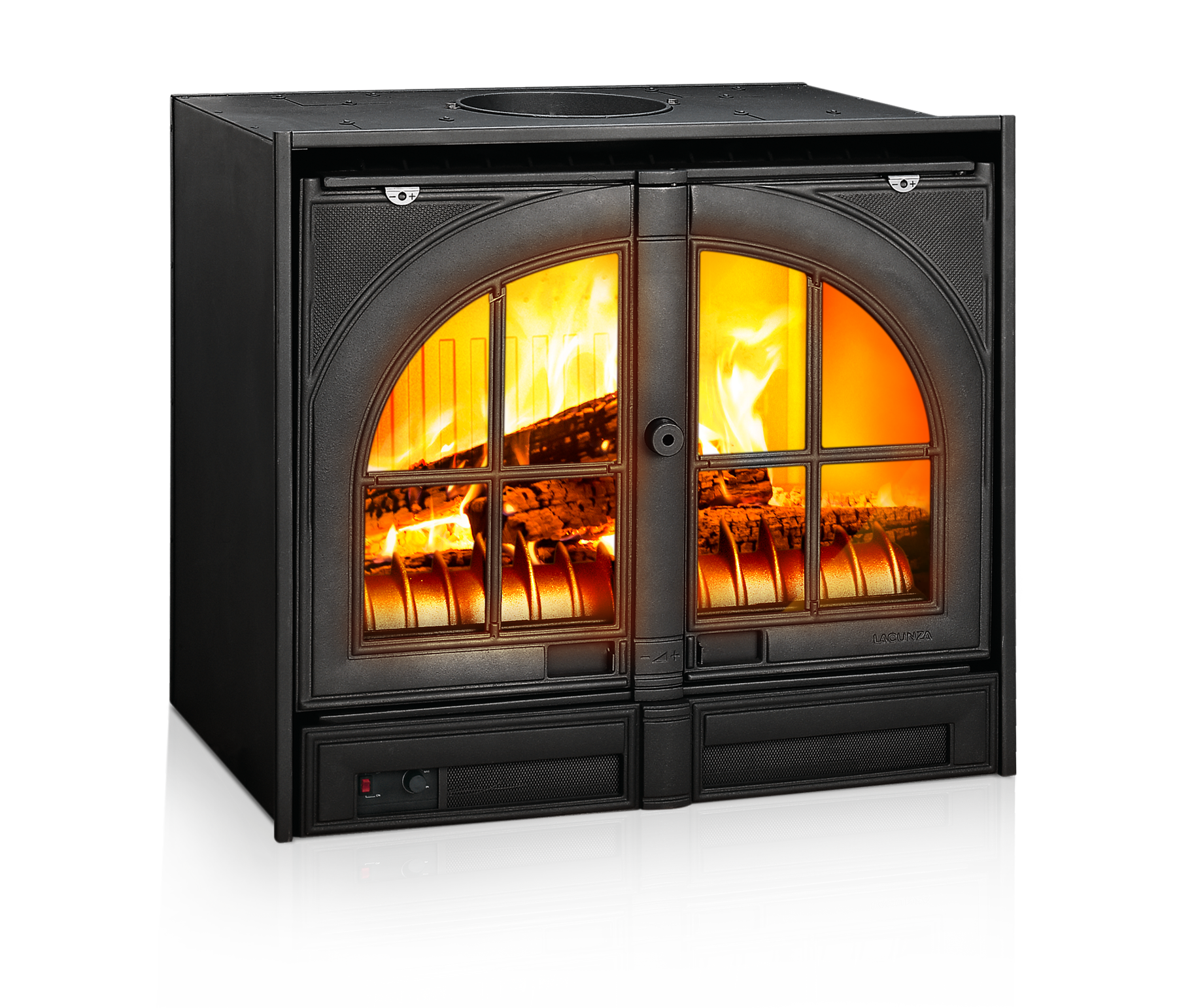

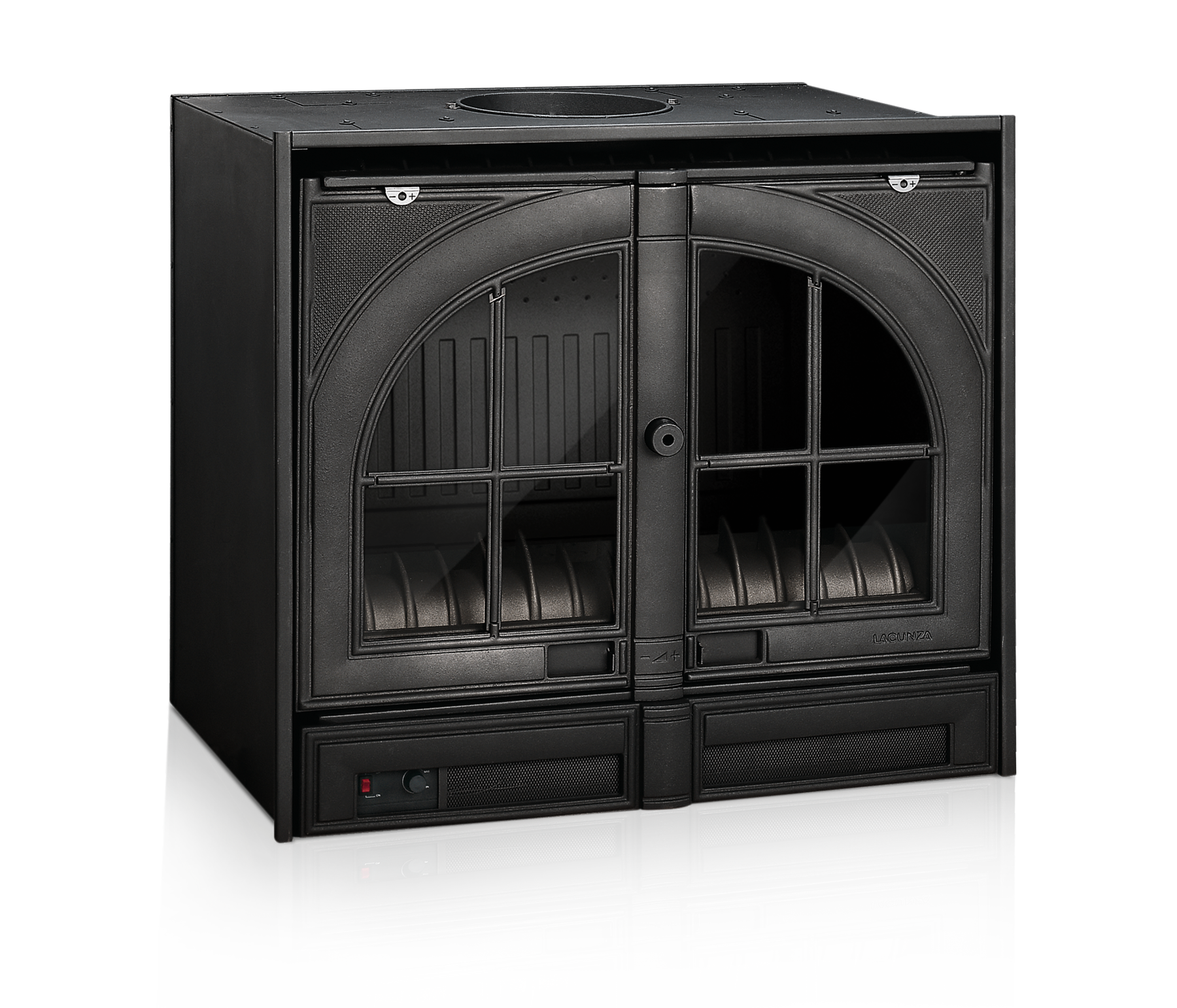

Lacunza Abodi is a wide cast iron insert with arched double doors and a traditional fireplace front. The robust cast iron and rounded door shape make the model particularly appealing in a masonry fireplace where you want to maintain a more classic look.
There are two door options: standard hinged doors or sliding doors. The retractable version provides a more open front when the doors are slid aside, but the choice should be made based on how you intend to use the fireplace and how the surround will be designed. Abodi also features fan-controlled heat distribution with the Eolo system.
The product is supplied as a built-in insert, not with a finished mantel and chimney. Plan space for the doors' movement, fan, flue connection, safety clearances, and servicing from the outset. Choose Abodi if a wide fire view and the traditional look of cast iron are more important than a narrow, completely flat glass front.
Choose the door design before installation

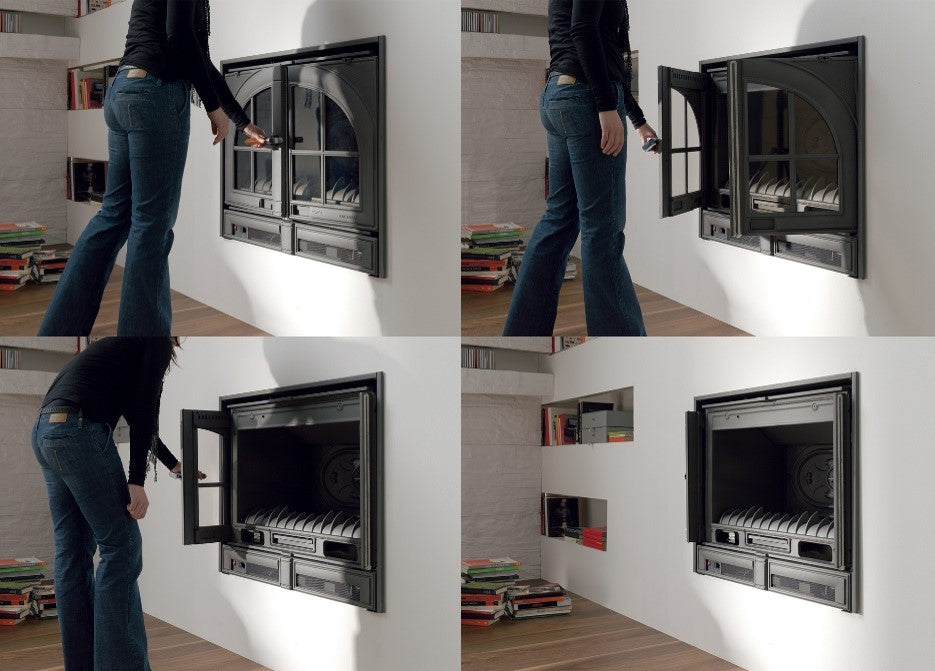

Abodi is available with standard hinged doors or side-sliding, curved doors. With the sliding design, the surround must leave space on both sides of the doors for the mechanism to function. Check that the doors move freely and that the hinges and moving parts can be accessed for servicing before the front is built in.
Installation and fan ventilation
The heavy cast-iron insert must be built in according to Lacunza's manual and the installation's safety requirements. The Eolo system uses a centrifugal fan with speed control and the ability to regulate the airflow. Ensure that the surround's air openings, electrical connection, and any hot air ducting are designed so that the fan can be cleaned or serviced without having to dismantle the surround.
Burning and cleaning
Use dry, untreated wood and follow the manual's guidelines for wood quantity and air regulation. Lacunza's Perfect Combustion and double combustion rely on a functioning air supply; do not block the fresh air supply or air passages with wood and ash. Extra Clean Glass directs air along the glass but does not replace cleaning. Allow the insert to cool before cleaning the glass, ash drawer, and cast-iron parts.
Chimney sweeping and maintenance
Cleaning Access provides access to the flue gas passages via a chimney sweep hatch; according to Lacunza, the deflectors can be removed by hand without tools. Follow the manual for removal and check that the parts are in place before the next firing. Also regularly inspect the door seals, hinges, any sliding mechanism, and the fan's air passages.
