- Product type: Wood-burning cast iron insert
- Series/model: Sara
- Fuel: Wood
- Nominal heat output: 15.5 kW
- Heat output range: 11–20 kW
- Efficiency: 77%
- CO emissions: 0.12%
- NOx: 85 mg
- OGC: 75 mg
- Particulate matter: 38 mg
- Heating volume: 344 m³
- Heating area: 138 m²
- Dimensions (W × H × D): 912 × 670 × 575 mm
- Firebox (W × H × D): 700 × 500 × 435 mm
- Weight: 160 kg
- Maximum log length: 65 cm
- Flue connection: Ø200 mm
- Exterior material: Cast iron
- Firebox material: Cast iron
- Features: Perfect Combustion, double combustion, Extra Clean Glass and Cleaning Access
- Versions available from VillaHome:
- Standard hinged doors – SKU KAM-303070000000, EAN 1000000000993
- Retractable side doors – SKU KAM-303070000200, EAN 1000000000511
- CE marking: Yes. Documentation: declaration of performance (DoP)

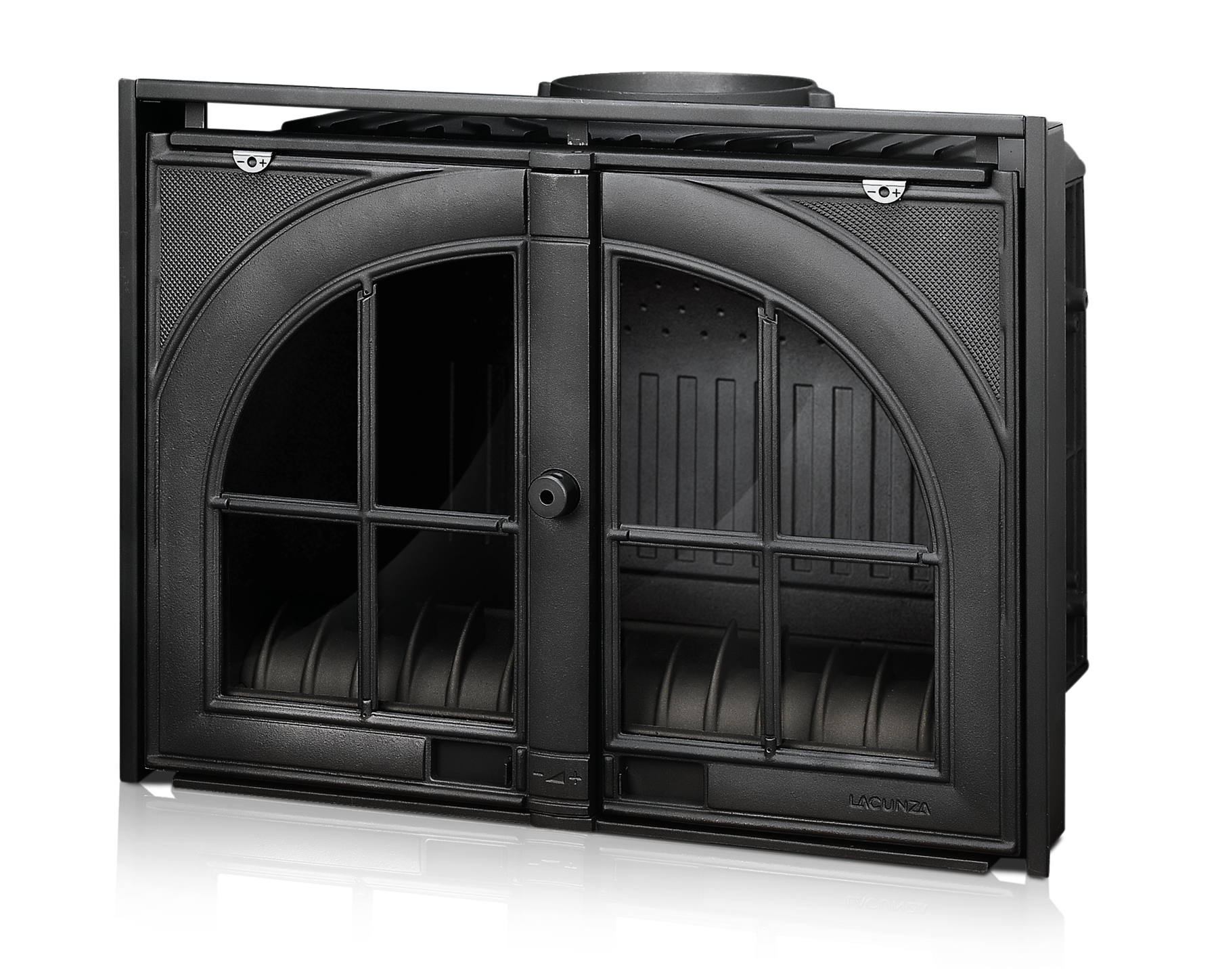

Lacunza Sara is a wide wood-burning cast iron insert with two glazed doors and a traditional look that makes it particularly suitable for a masonry fireplace. The fire is visible through both doors, while the continuous cast iron construction provides a distinct, classic frame.

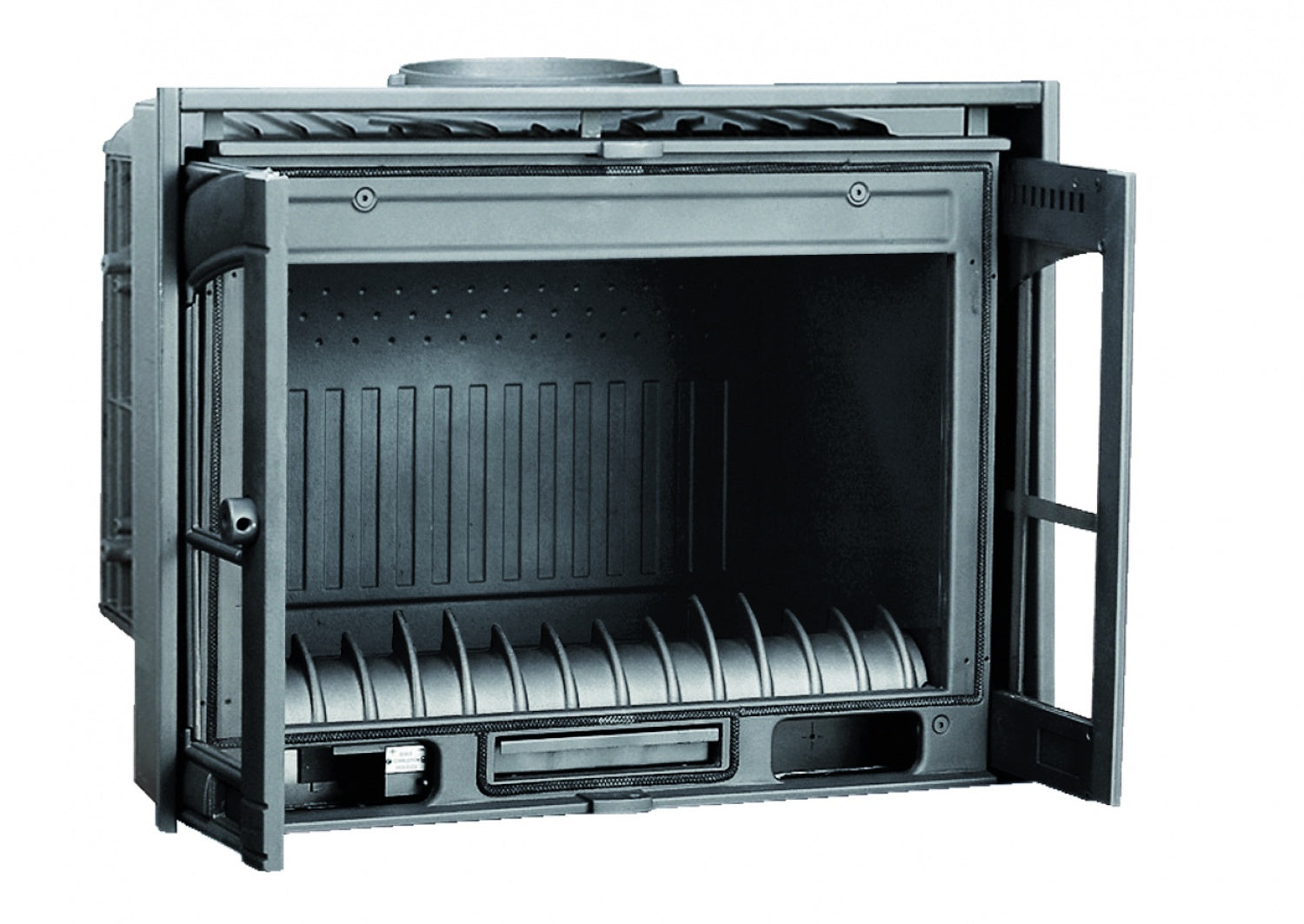

Choose between standard hinged doors and side-sliding doors. The latter allows the door panels to slide away to the sides instead of swinging out in front of the fireplace, but requires space for the mechanism during installation. The model heats through natural convection and has no integrated fan.
Sara is sold as the built-in insert itself, without a finished mantel or chimney. Choose the door configuration before the surround is built and plan for convection airflow, flue access, and prescribed safety clearances. If you want a wide glass view but do not need sliding doors, the standard version may be the simpler choice.

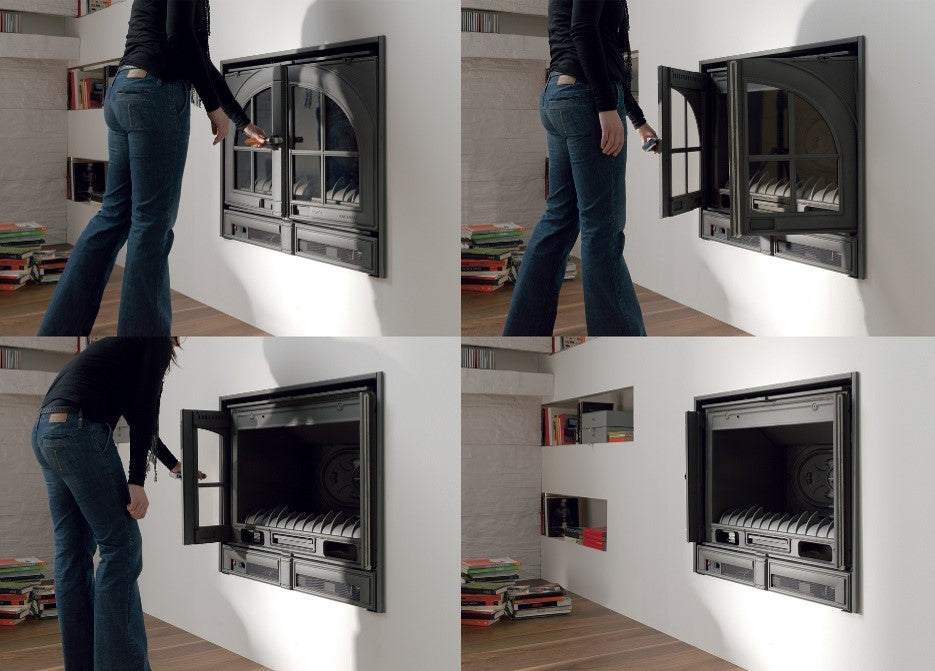

Choice of door design
The standard version has two hinged doors that swing out in front of the fireplace. On the model with retractable doors, the door panels slide to the sides. Check that the surround leaves enough space for the doors to move, for the mechanism, and for future maintenance.
Installation and convection
Sara is a heavy cast-iron insert designed for built-in installation. The base, chimney, floor protection, and clearance to combustible materials must comply with Lacunza's installation instructions. Heat is distributed by natural convection; keep the prescribed air openings clear and do not block access to the flue passages.
Burning
Use dry, untreated wood and follow the manufacturer's limits for fuel quantity and air control. Open the doors slowly when refilling. Never pour water on the fire and do not use fuels that have not been approved by the manufacturer.
Care
Clean the glass, cast iron surfaces, rust, and ash tray only when the insert is cold. Check the door seals, hinges, and any retractable mechanisms. Flue passages and the chimney must remain accessible for regular sweeping and inspection.
