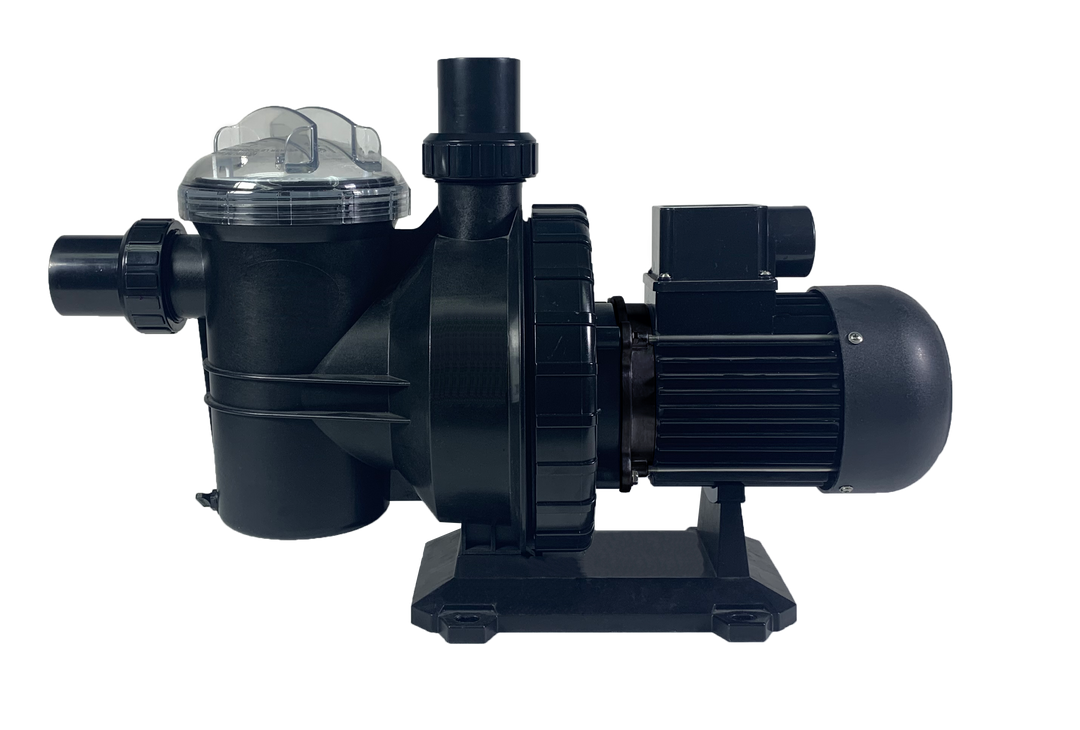

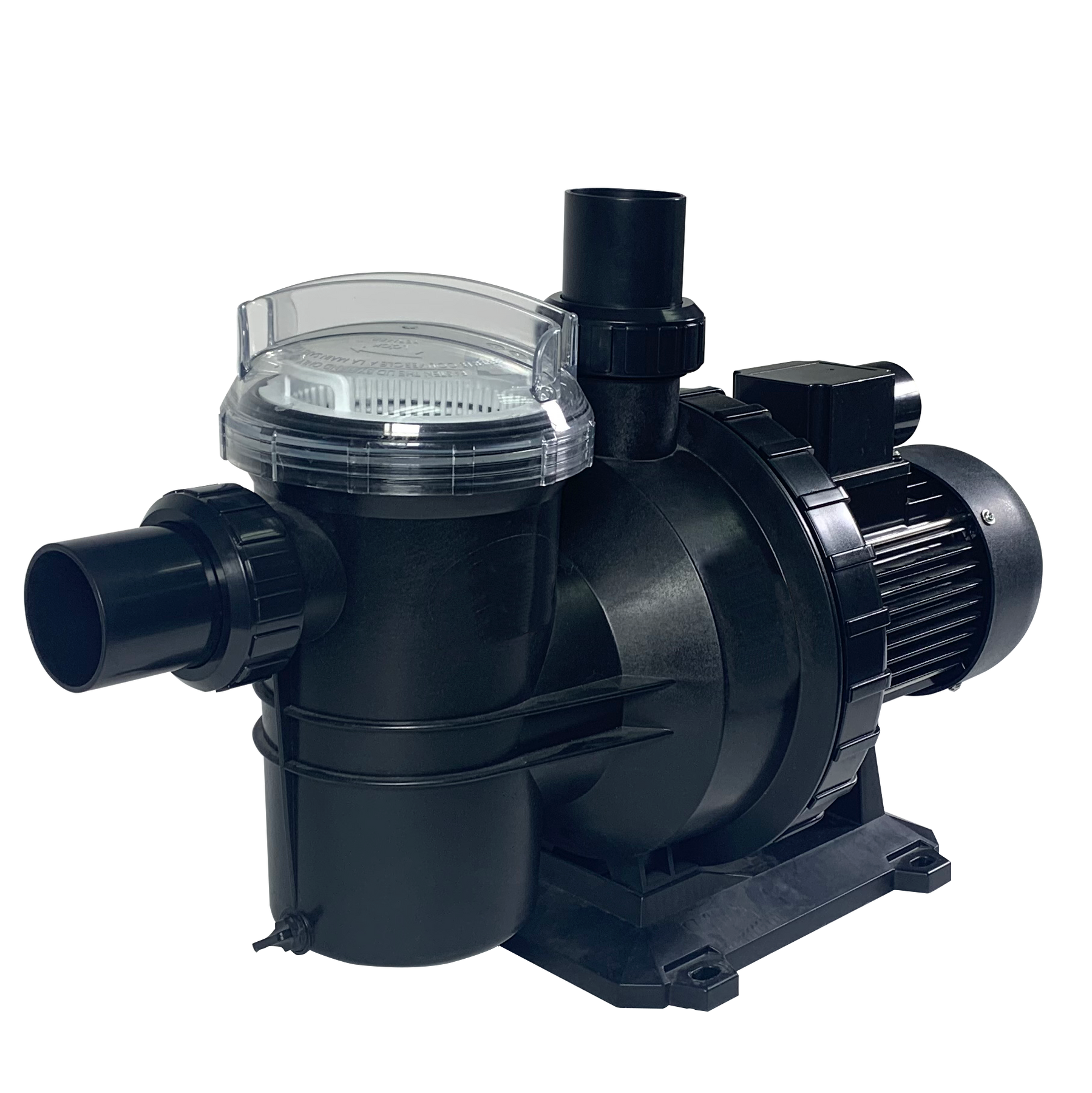

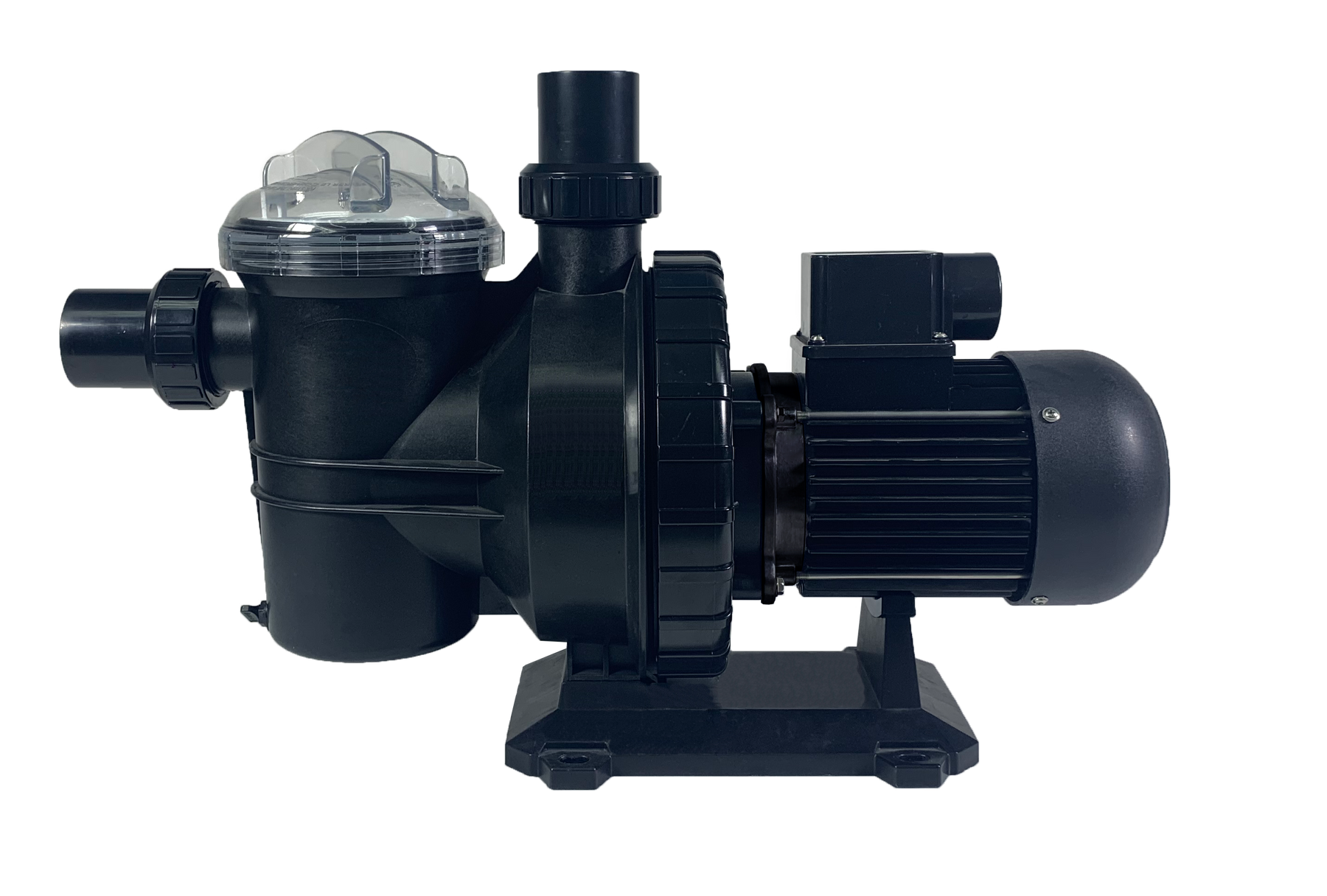

Poolex Tonicline – powerful and economical pool pump
Tonicline (new) is a self-priming pool pump that combines high performance with low operating costs. The pump is built to withstand both chemical and salt corrosion, making it particularly suitable for saltwater pools.
Advantages
- ? Self-priming up to 2 m (flexible installation)
- ? Flow up to 19 m³/h at 6 m head
- ? Stainless steel shaft + mechanical seal in AISI 316
- ? Large pre-filter basket 2.5 L that effectively catches dirt
- ? IPX5-rated and integrated thermal protection
- ? Pressure tested to 3.5 bar (50 PSI)
With Tonicline, you get stable circulation and more consistent water quality – while reducing the risk of stagnant zones where algae and bacteria thrive.
Technical specifications
| Tonicline 050 | Tonicline 075 | Tonicline 100 | Tonicline 150 | |
|---|---|---|---|---|
| Reference | TNC050 | TNC075 | TNC100 | TNC150 |
| Rated power (HP) – P2 | 0.50 | 0.75 | 1.0 | 1.50 |
| Consumption (kW) – P1 | 0.37 | 0.51 | 0.75 | 1.1 |
| Current (A) | 2.0 | 2.5 | 3.5 | 4.7 |
| Noise level (dB) | 60 | 68 | 70 | 70 |
| Connection | 1.5" / 50 mm | |||
| Motor type | Asynchronous 2-pole motor | |||

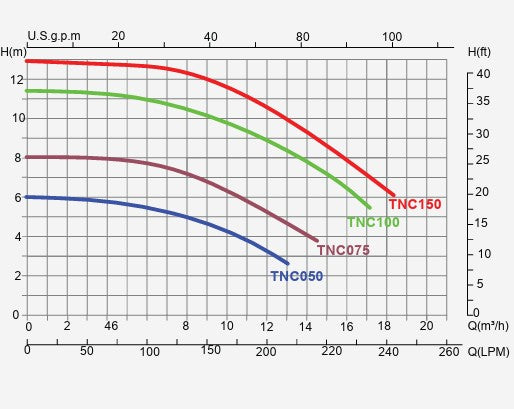

| Flow (m³/h) @4 m | 10.6 | 14 | – | – |
| Flow (m³/h) @6 m | – | 11 | 17 | 19 |
| Flow (m³/h) @8 m | – | – | 14 | 16 |
| Self-priming height (m) | 1.5 | 2 | 2 | 2 |
| Test pressure | 50 PSI (3.5 bar) | |||
| Weight (kg) | 9.5 | 10 | 10.9 | 11.7 |

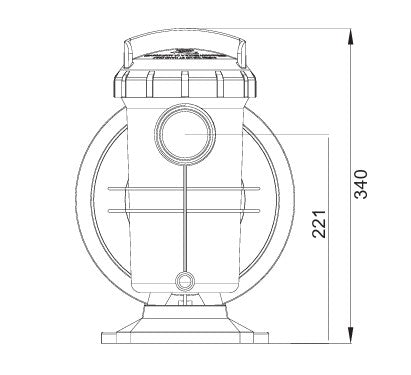

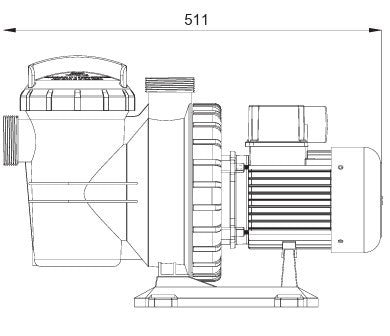

| Dimensions (L×W×H mm) | 511 × 221 × 340 | |||
| Warranty | 2 years | |||
Tip: Choose a model based on your pool volume and desired circulation flow. A correctly sized pump provides better filtration and lower energy costs.
