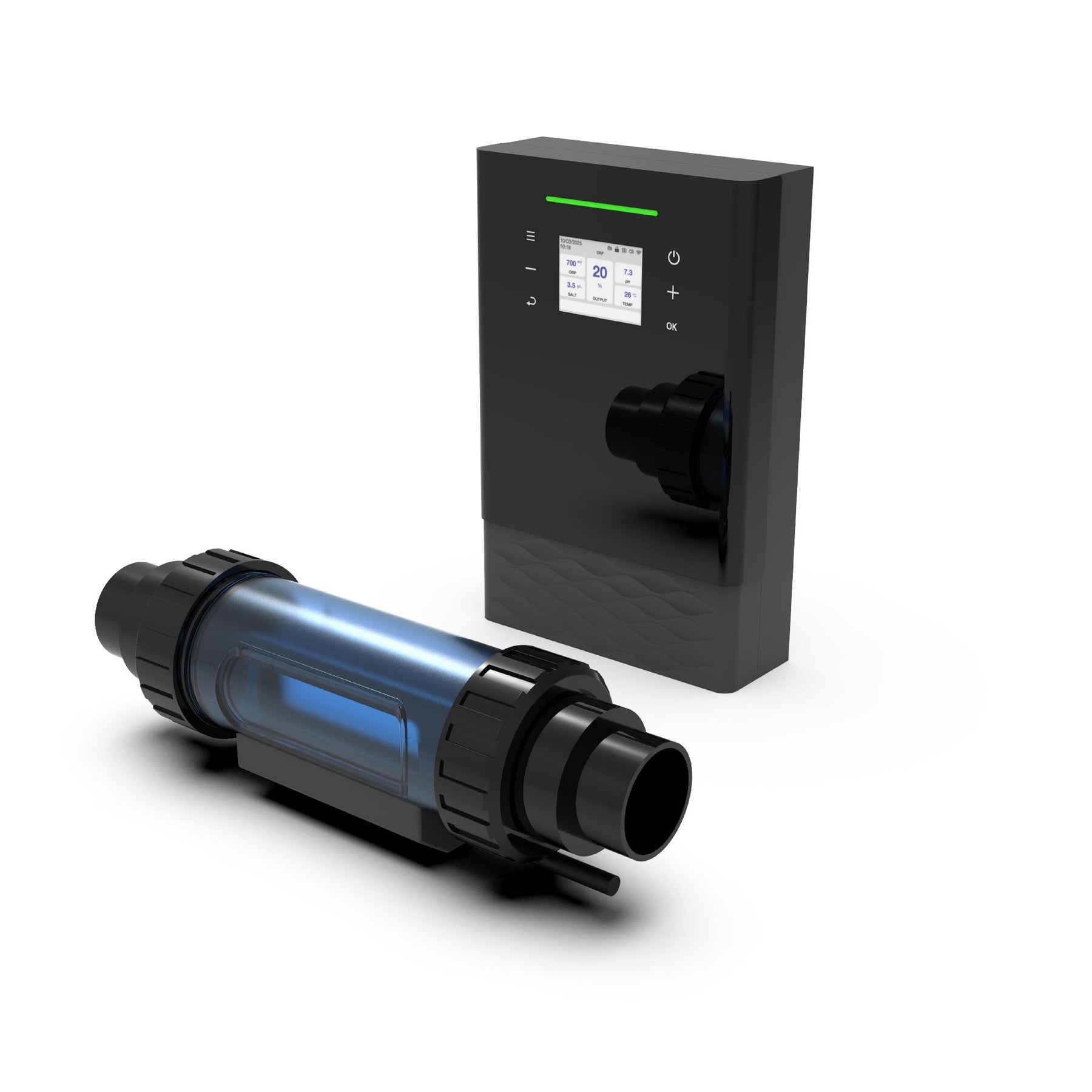

Poolex Modulyser – Modular Salt Chlorination System with Intelligent Control
The Poolex Modulyser is an advanced and modular salt chlorinator developed for demanding private pool installations. The system ensures precise chlorine production for stable, hygienic, and crystal-clear pool water – while simplifying installation and service thanks to its separate cell.
With its connected control via the Poolex app, the Modulyser offers full control over water balance in real time. The system is designed for a long lifespan, high operational reliability, and intelligent energy management.
Intelligent and Connected Pool Control
The Modulyser is equipped with built-in WiFi and cloud connectivity via the Poolex App. You can monitor and adjust the system directly from your smartphone.
- Remote control via WiFi and cloud service
- Overview of water balance and operational data
- Diagnostics and real-time alarms
- OTA (Over-The-Air) updates
- History and graphs for energy, salt level, temperature, and ORP (optional)
Precise and Adaptable Chlorine Production
The Modulyser produces only the amount of chlorine the pool actually needs. The system can operate in several modes:
- Flow mode
- Time-controlled mode with start time
- ORP-controlled mode (with optional kit CL-SORP2)
Chlorine production can also be automatically adjusted when using a pool cover, optimizing both water quality and energy consumption.

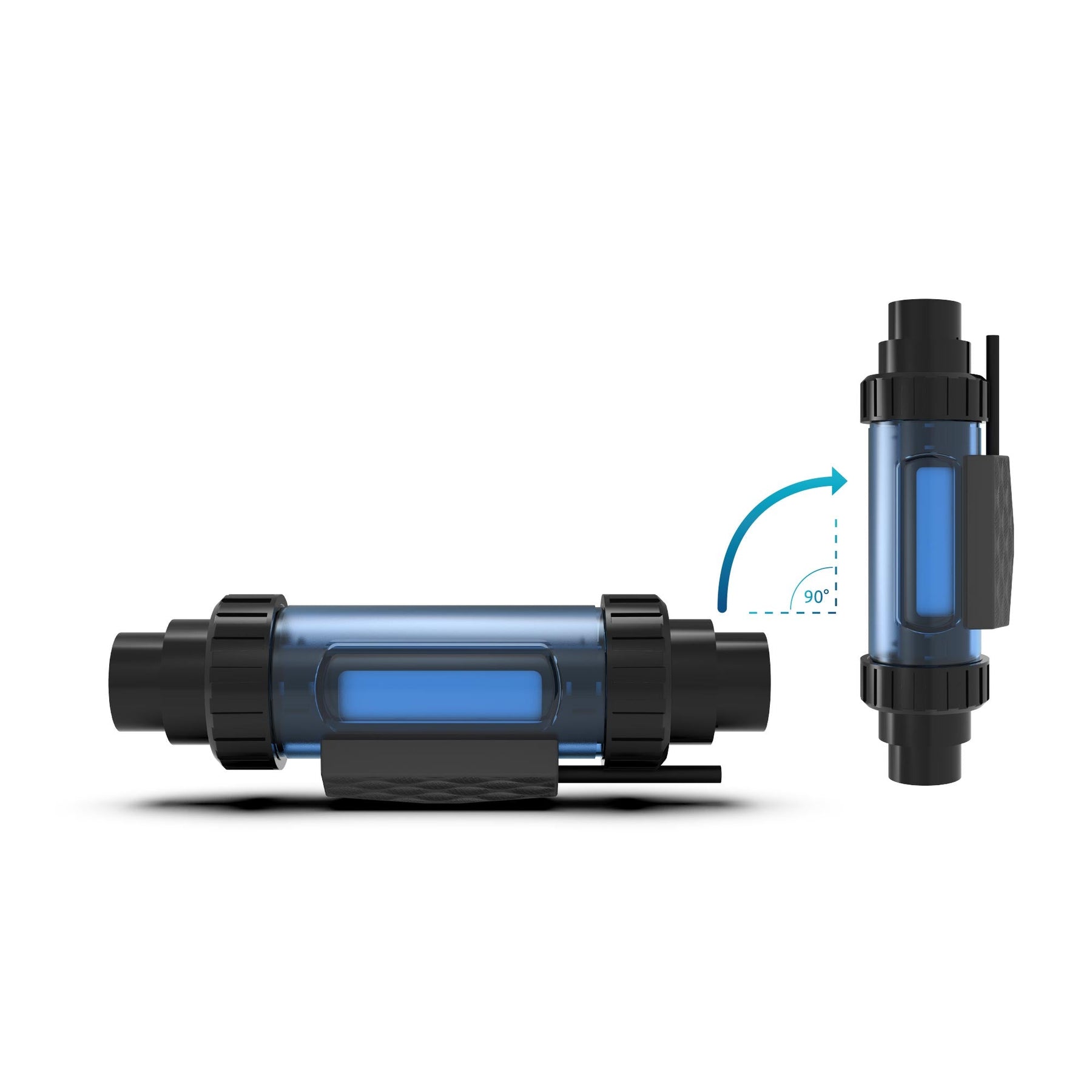

Modular Design with Separate Cell
The modular design with a separate titanium cell makes installation flexible and simplifies future service. The cell is of bipolar type with a lifespan of up to 10,000 operating hours.
Polarity reversal is adjustable (4 / 8 / 12 hours), which minimizes scale buildup and extends the cell's lifespan.
Robust Construction and Safe Operation
- 2.8” color display with multilingual interface
- Circulation pump control via dry contact
- Temperature monitoring (15–45 °C)
- Salt operation from 2.7 to 5 ppm
- PoolTerre included (must be connected to earth rod < 20 ohms)
The system is delivered without a separate analysis chamber, which simplifies installation.
Technical Specification
| Model Capacity | < 50 m³ | < 75 m³ | < 90 m³ | < 110 m³ |
|---|---|---|---|---|
| Chlorine Production | 10 g/h | 15 g/h | 20 g/h | 25 g/h |
| Cell Type | Bipolar titanium cell – 10,000 hour lifespan | |||
| Number of Plates | 3 | 4 | 5 | 6 |
| Max Power | 75 W | 150 W | 150 W | 175 W |
| Salinity | 2.7 – 5 ppm | |||
| Cell Connection | Ø50 mm glue connection | |||
| Polarity Reversal | Adjustable 4 / 8 / 12 hours | |||
| Operating Modes | Flow / Timer / ORP (optional) | |||
| Connectivity | WiFi & Cloud – Poolex App | |||
| Display | 2.8” color touchscreen | |||
| Temperature Range | 15–45 °C | |||
| PoolTerre | Included (earthing < 20 ohms) | |||
| Warranty | 5 years (control box + cell, 10,000 h lifespan) | |||
Included Accessories
- Cell nuts (Ø63 & 50 mm reducer)
- Flow and temperature detector
- Earthing kit
Summary
The Poolex Modulyser is a modern and connected salt chlorination system that combines precise water control, modular installation, and a long lifespan. It is developed for pool owners who want professional water management with minimal manual effort and maximum operational reliability.
