- Product type: Double-sided fireplace insert
- Series/model: Nickel 1000
- Fuel: Wood
- Nominal output: 17.5 kW
- Output range: 12–23 kW
- Efficiency: 80%
- CO emissions: 0.07%
- NOx: 108 mg
- OGC: 47 mg
- Particulates: 23 mg
- Heating volume: 387 m³
- Heating area: 155 m²
- Dimensions (W × H × D): 1000 × 595 × 510 mm
- Firebox (W × H × D): 854 × 310 × 310 mm
- Weight: 140 kg
- Max log length: 85 cm
- Flue connection: Ø200 mm
- Exterior material: Steel
- Firebox lining: Vermiculite
- Glass: Front and back
- External air supply: Yes
- Features: Easy Fire Control, Perfect Combustion, double combustion, glass cleaning system, cleaning access
- VillaHome SKU: KAM-3045300000
- CE marking: Yes. Documentation: declaration of performance (DoP)

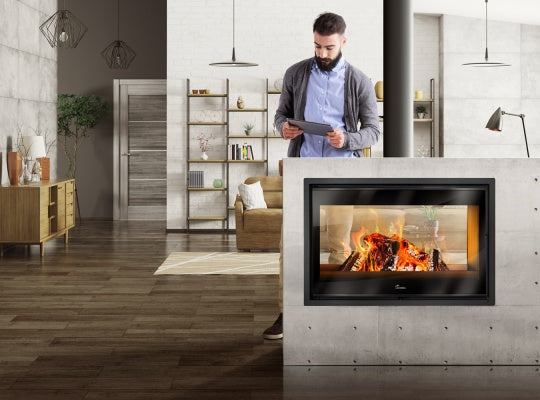

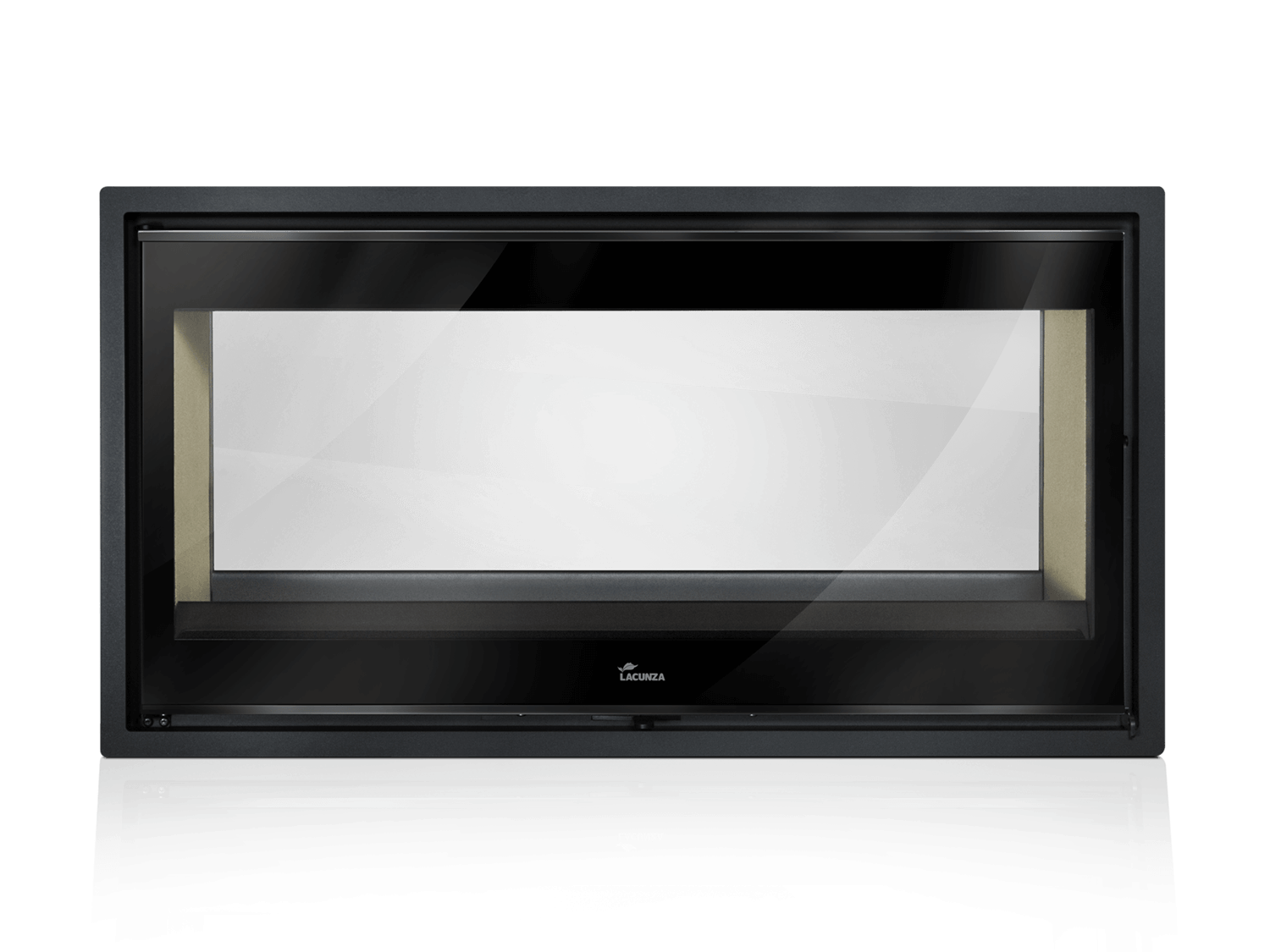

Lacunza Nickel 1000 is the widest model in the Nickel series and features glass on both the front and back. The continuous firebox allows the same fire to be viewed from two rooms or from both sides of a room divider.
The 1000 mm wide body provides a panoramic view of the fire, and the fireplace can accommodate logs up to 85 cm. The model has a nominal output of 17.5 kW, external combustion air, and vermiculite lining.
The Nickel is built into the wall, making the framing and airflow part of the product itself. Therefore, the Ø200 mm flue connection, external air supply, and access to both glass surfaces must be arranged before the wall or framing is closed.
Plan a fireplace that works from both sides
The Nickel 1000 has glass on both the front and back. Therefore, plan the installation based on the furnishings of both rooms, clear safety distances, and the ability to access the glass. Leave service space so that cleaning and chimney sweeping can be carried out even after the wall or surround is finished. The insert requires a flue connection and external combustion air ducts in accordance with Lacunza's installation manual; air intakes and prescribed convection openings must not be sealed up.
Control the combustion
Lacunza's Easy Fire Control combines the combustion controls into a single control. Use dry, untreated wood within the model's specified wood length and follow the manual's recommendations for the amount of wood. Arrange the wood so that it does not touch the glass surfaces. Two glass fronts also mean that people and furniture need a protective distance on both sides during combustion.
Cleaning and chimney sweeping access
Clean the glass on both sides when the insert is completely cold. Extra Clean Glass helps reduce deposits but does not replace regular cleaning. The Nickel has Lacunza's Cleaning Access with a chimney sweeping door and deflectors that, according to the manufacturer, can be removed by hand without tools. Always follow the manual's order for disassembly and reassembly, and check that the parts are correctly positioned before the next combustion.
Ongoing inspection
Regularly check the door seals, ash pan, flue gas paths, and supply air ducts. Protect the vermiculite lining from impact when loading wood. Have a qualified installer assess both the load-bearing capacity of the substrate and the safety distances of the fireplace, and follow the prescribed chimney sweeping and inspection intervals.
