- Product type: Double-sided fireplace insert
- Series/model: Nickel 800
- Fuel: Wood
- Nominal heat output: 15.5 kW
- Heat output range: 11–20 kW
- Efficiency: 79%
- CO emissions: 0.08%
- NOx: 108 mg
- OGC: 66 mg
- Particulate matter: 28 mg
- Heating volume: 347 m³
- Heating area: 139 m²
- Dimensions (W × H × D): 800 × 595 × 510 mm
- Firebox (W × H × D): 654 × 310 × 310 mm
- Weight: 130 kg
- Max log length: 65 cm
- Flue connection: Ø200 mm
- Exterior material: Steel
- Firebox lining: Vermiculite
- Glass: Front and back
- External air supply: Yes
- Features: Easy Fire Control, Perfect Combustion, double combustion, glass cleaning system, cleaning access
- VillaHome SKU: KAM-304480000000
- CE marking: Yes. Documentation: declaration of performance (DoP)

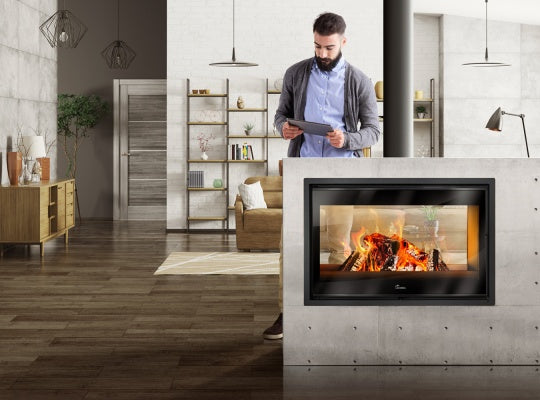

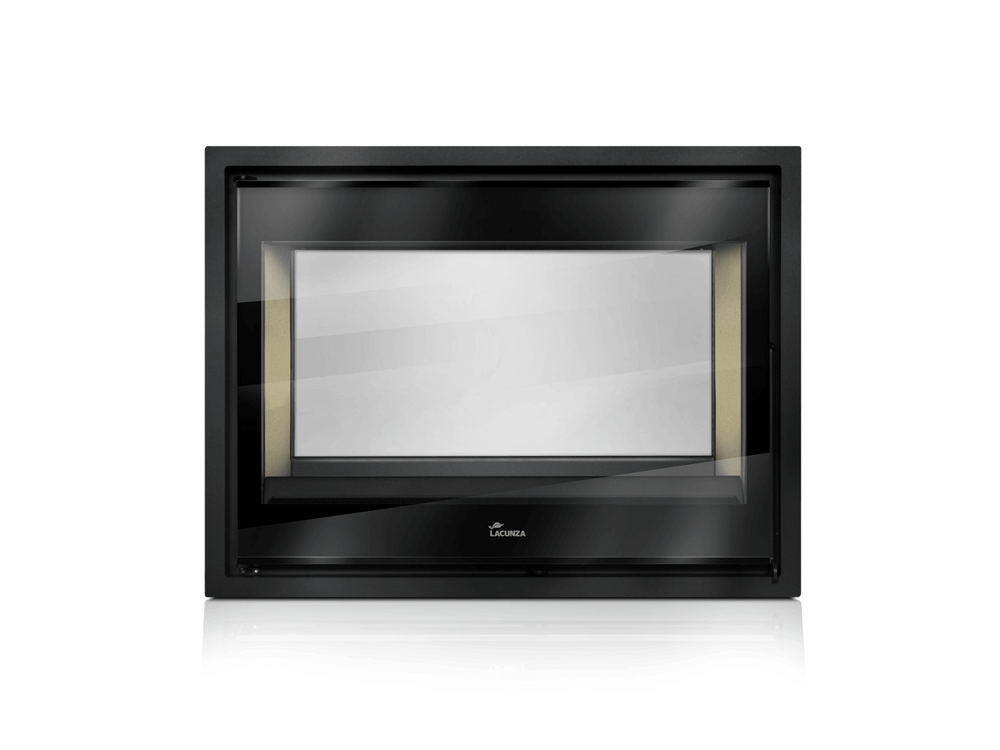

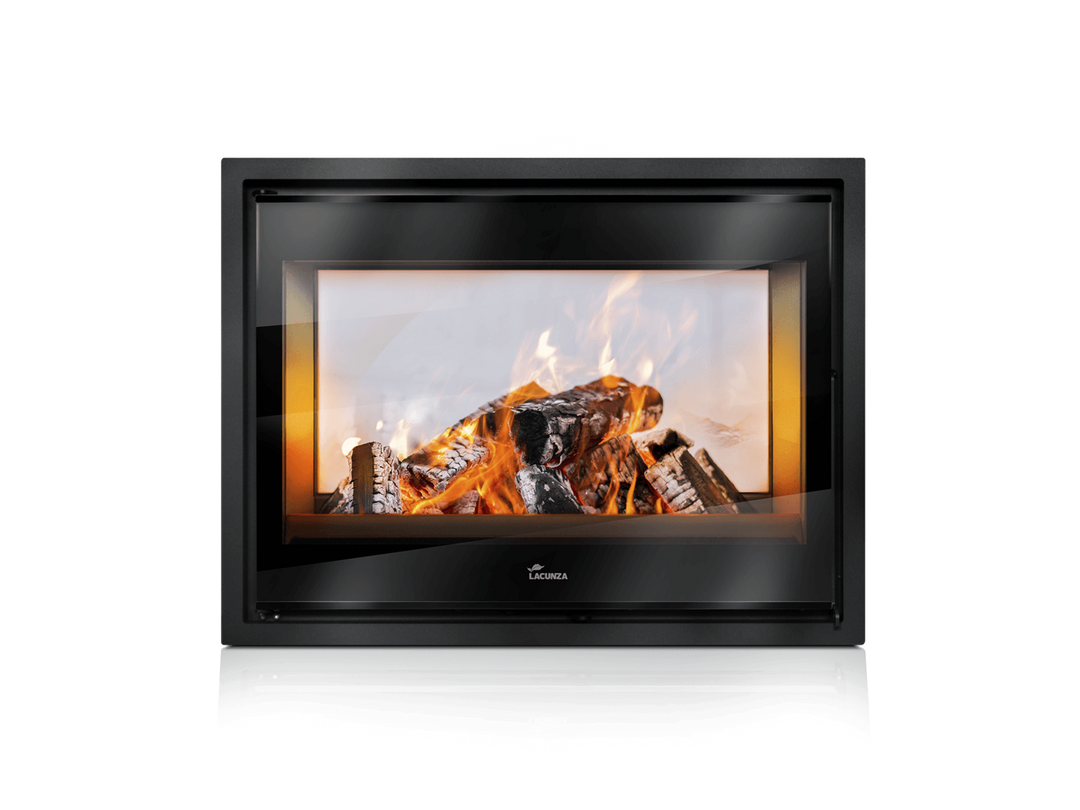

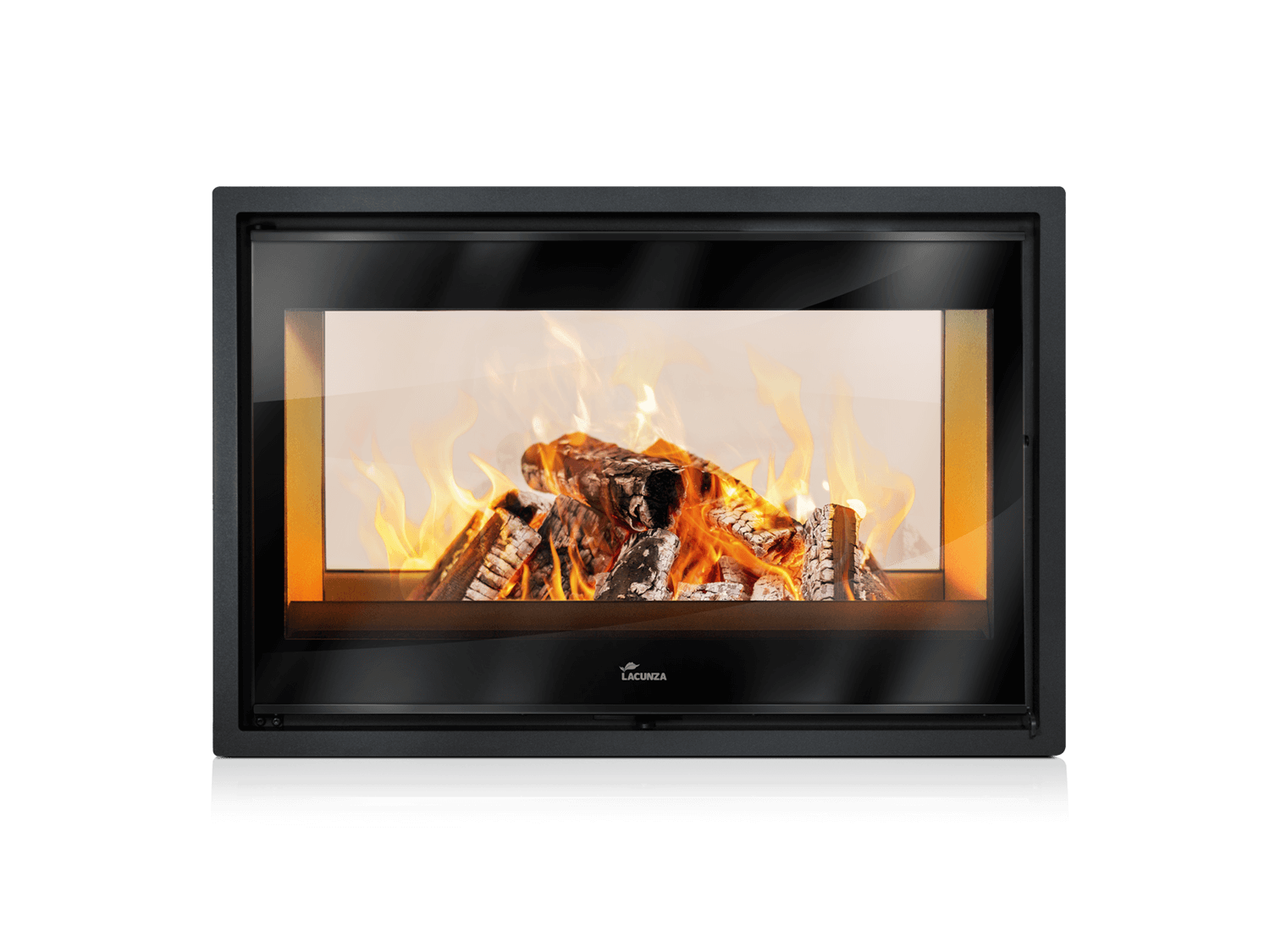

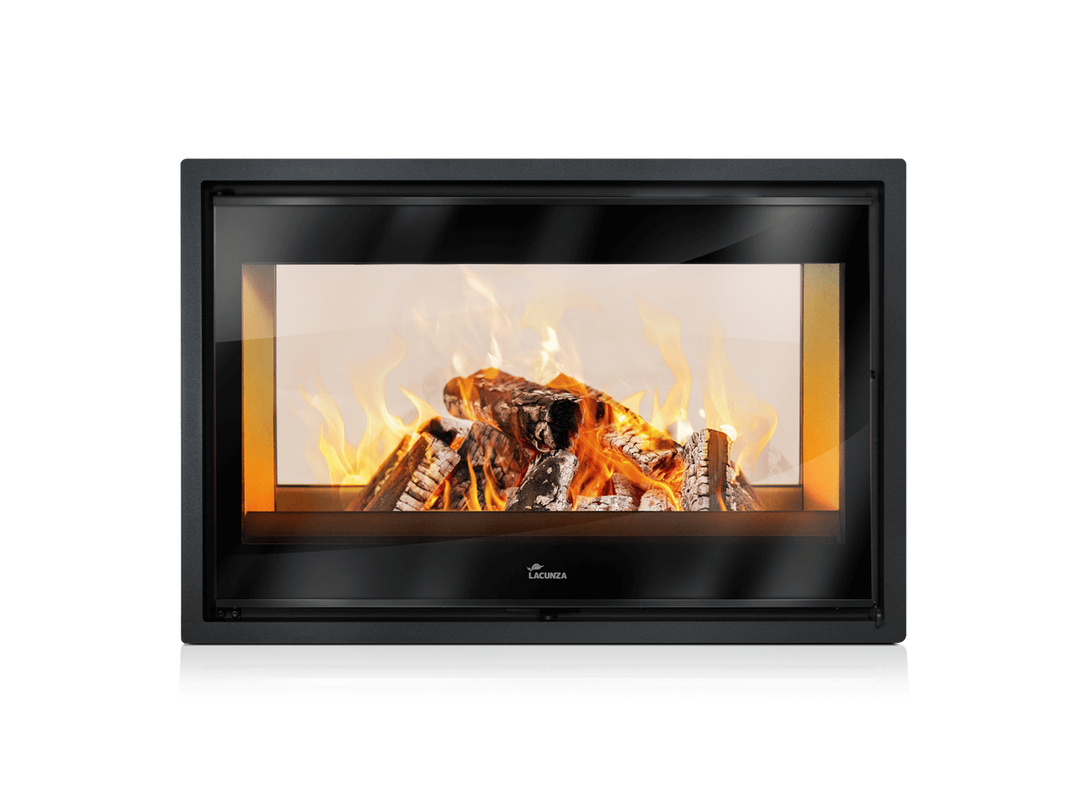

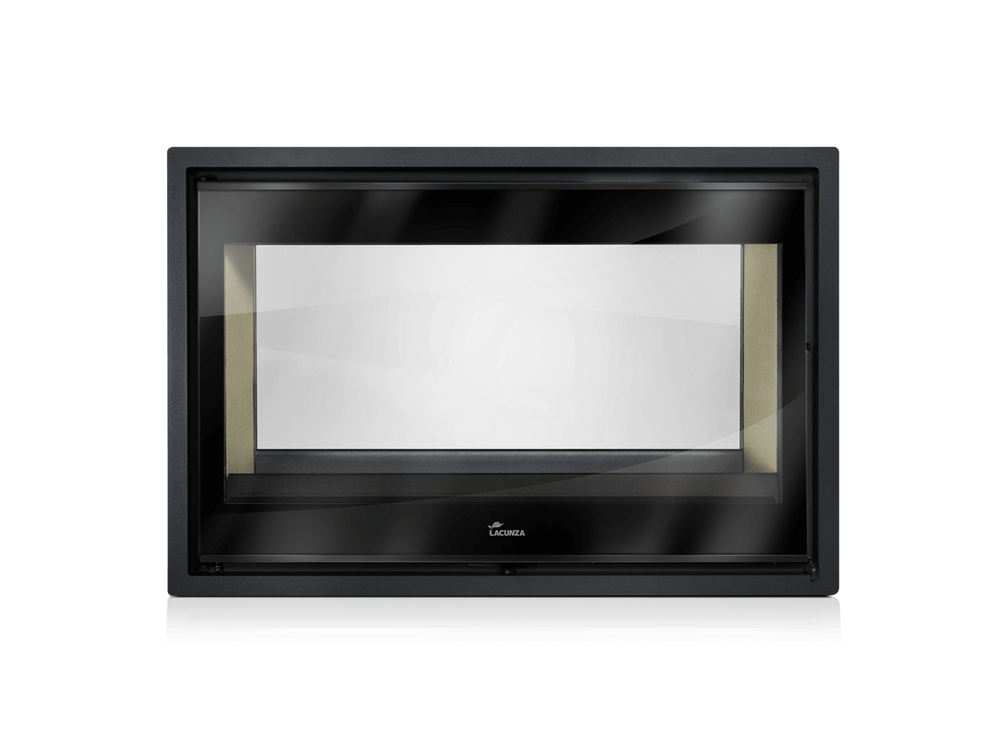

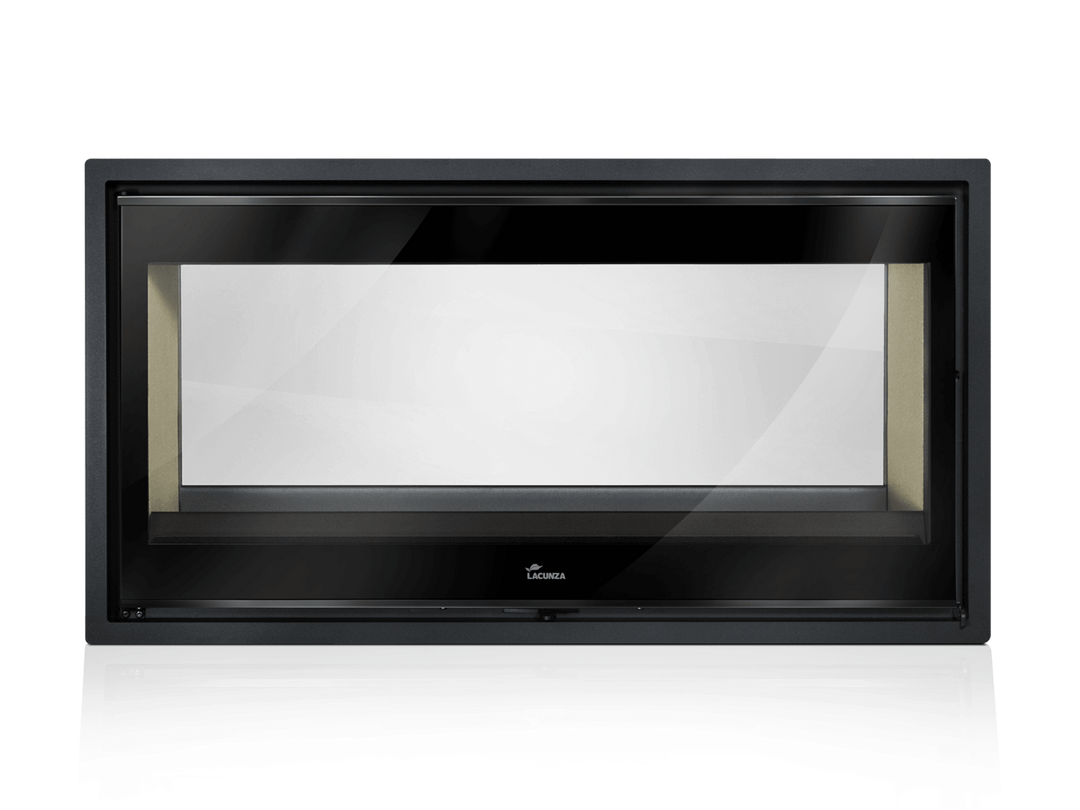

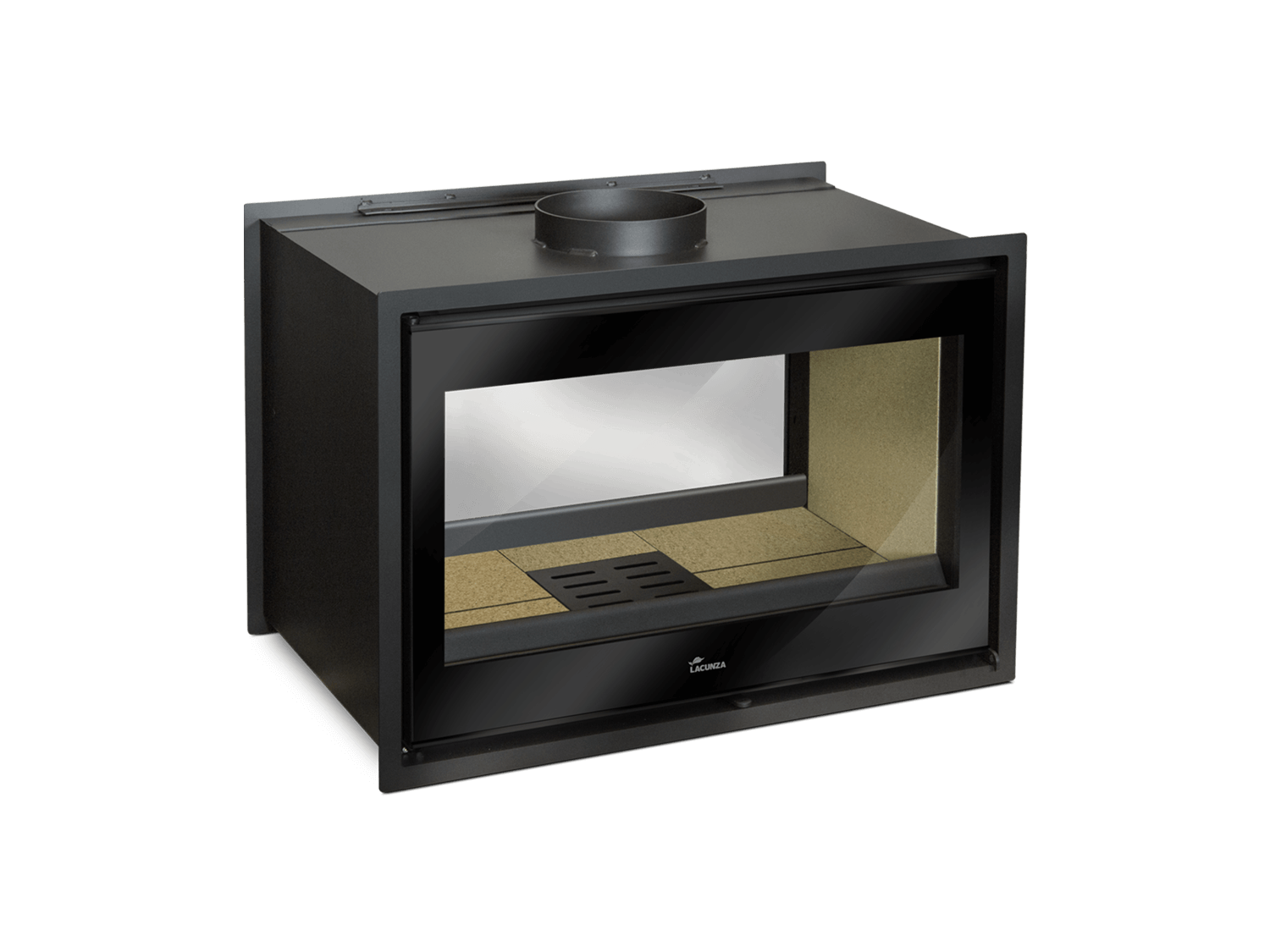

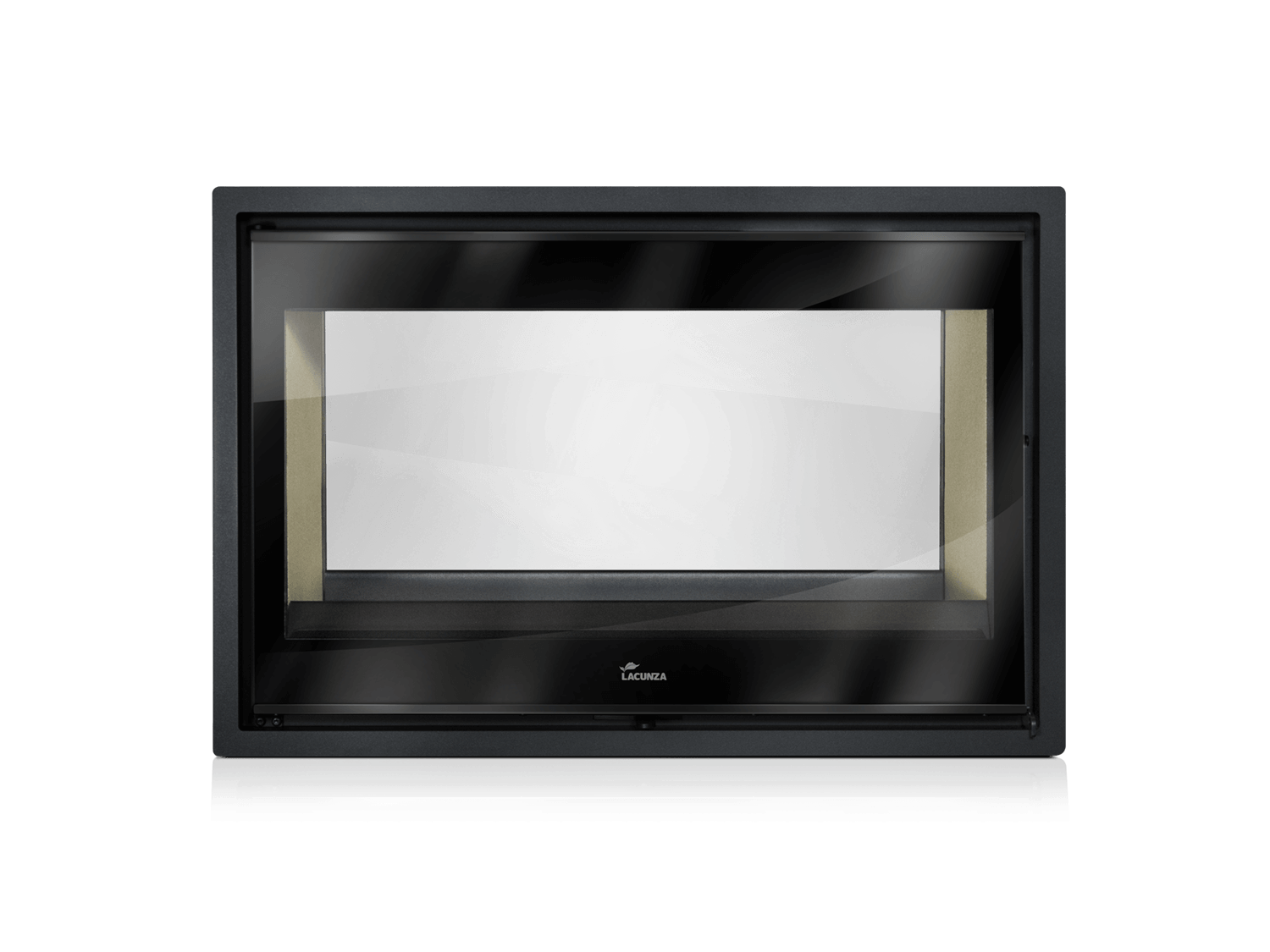

Lacunza Nickel 800 is a double-sided wood insert with glass on both the front and back. This means the same fire can be enjoyed from two rooms or from either side of a room-dividing wall. Nickel 800 has a wider glass panel than Nickel 700 but takes up less space than the largest model in the range, Nickel 1000.

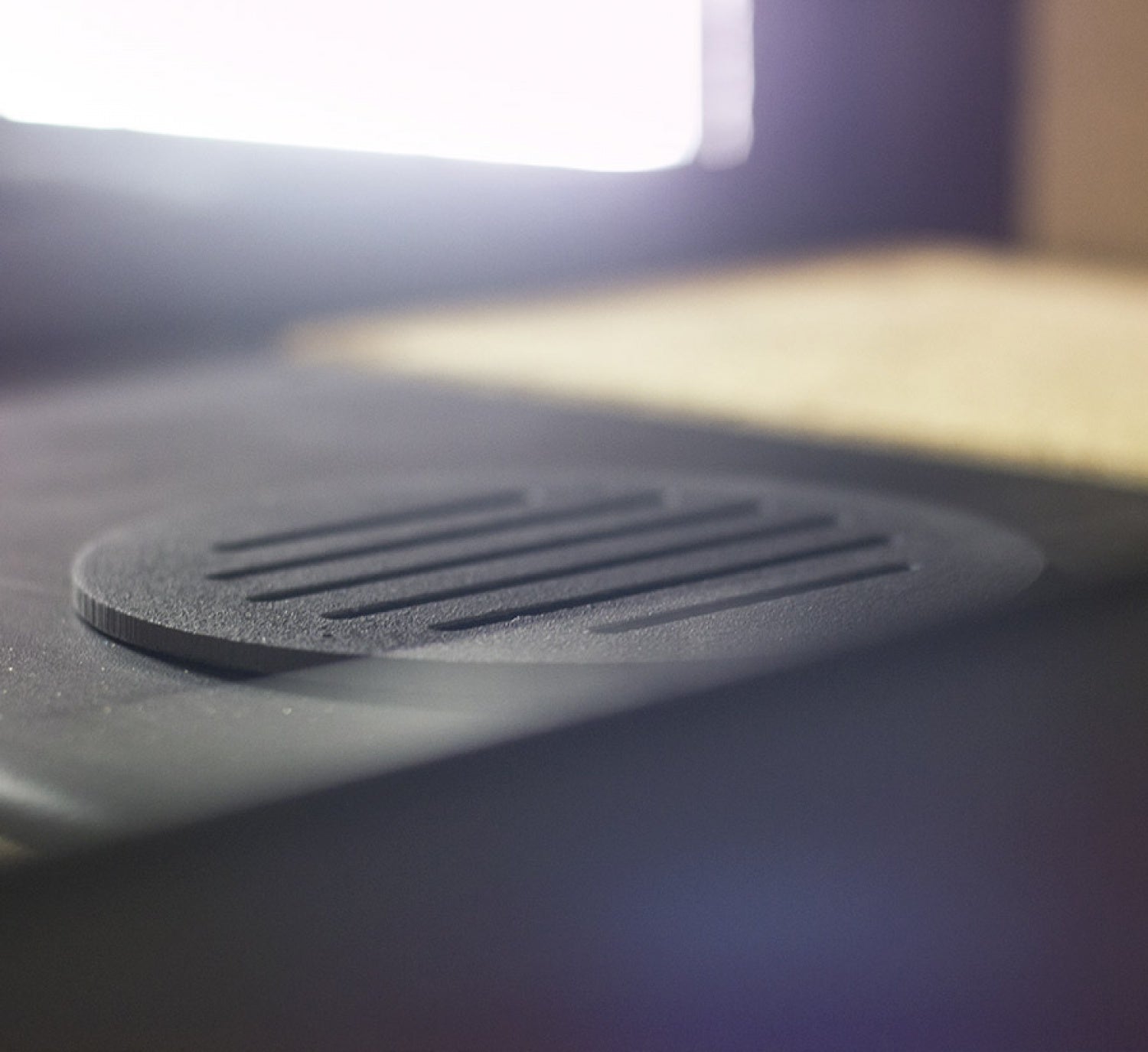

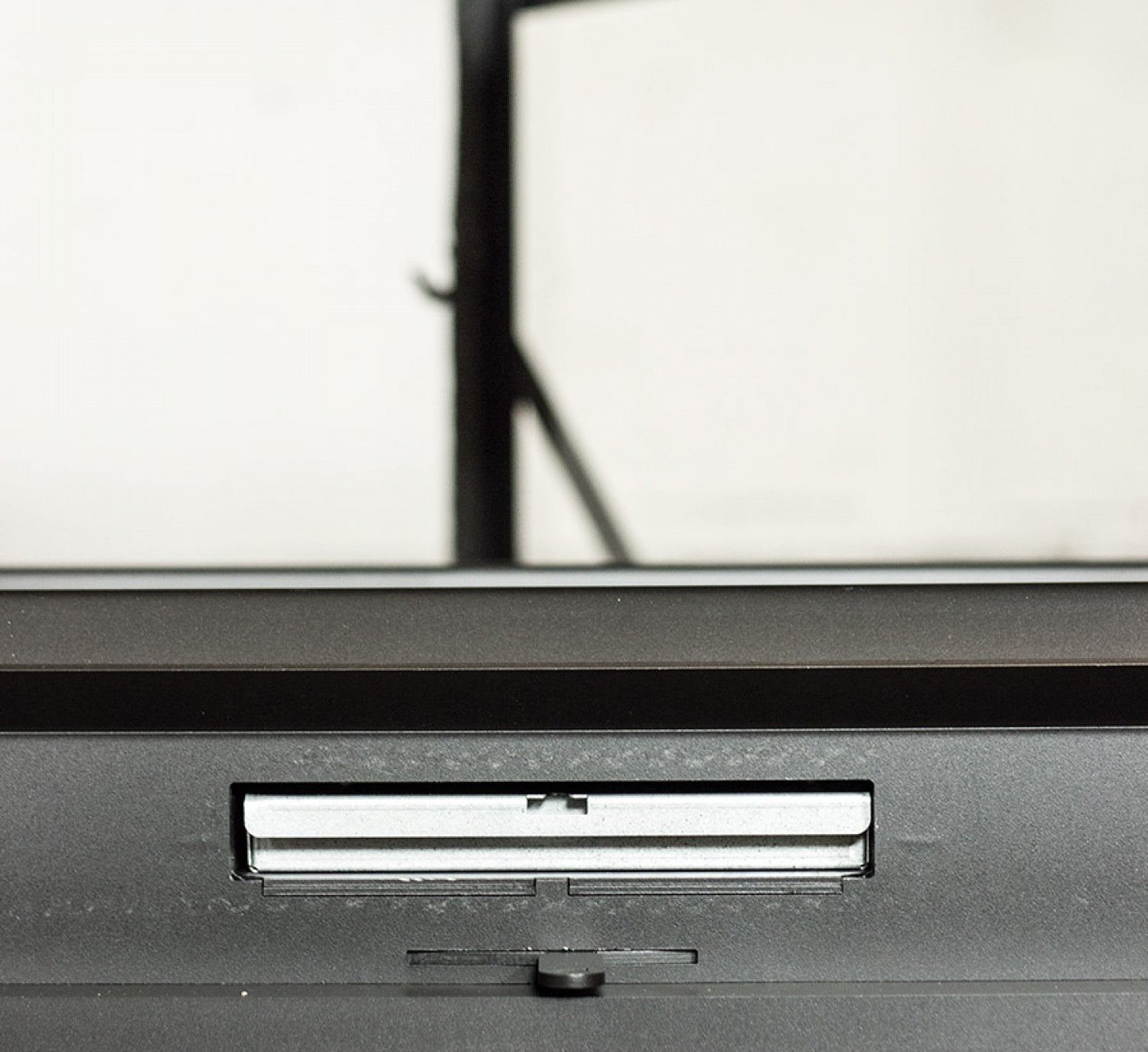

The insert has a black steel body and an internal vermiculite lining. Combustion air can be supplied from the outside, while the air controls and glass convection system help you manage the burn. The through-glass design is the main difference from a conventional insert, which can only be viewed from the front.
Nickel 800 is the built-in insert itself, not a finished freestanding fireplace or mantelpiece. You need to plan the surround, chimney, floor protection and safety clearances on both sides of the wall. Choose it when you want to share the view of the fire between two spaces and have room for a double-sided installation with access for servicing from both sides.
Installation and Built-in Installation
Install Nickel according to Lacunza's current manual and applicable regulations. As the insert is double-sided, safety clearances, framing, and access must be assessed on both sides of the fireplace. Plan the external combustion air before the installation is built in.
Burning and Ventilation
Use dry wood and open the doors slowly when refilling the wood.
Care and Maintenance
Allow the insert to cool before cleaning and handle the vermiculite lining with care. Clean both glass surfaces, the ash compartment, and the flue passages regularly, and soot the chimney according to local requirements.
First Burn
Start with smaller amounts of wood and gradually increase the temperature so that the fireplace, seals, and surface treatment are seasoned in a controlled manner. Ventilate the room if materials or paint emit odors during the first burns.
Combustion Air and Chimney
Size the chimney according to the model's flue connection and check whether the current variant has external air supply. Air ducts and any ducted hot air must be planned before the framing is closed and must remain accessible for inspection.
