- Product type: Three-sided fireplace insert
- Series/model: Adour 800 CLID
- Fuel: Wood
- Nominal heat output: 10 kW
- Heat output range: 7–13 kW
- Efficiency: 79%
- CO emissions: 0.09%
- NOx: 118 mg
- OGC: 67 mg
- Particulate matter: 27 mg
- Heating volume: 222 m³
- Heating area: 89 m²
- Dimensions (W × H × D): 800 × 490 × 400 mm
- Firebox (W × H × D): 760 × 235 × 290 mm
- Weight: 91 kg
- Maximum log length: 70 cm
- Flue connection: Ø150 mm

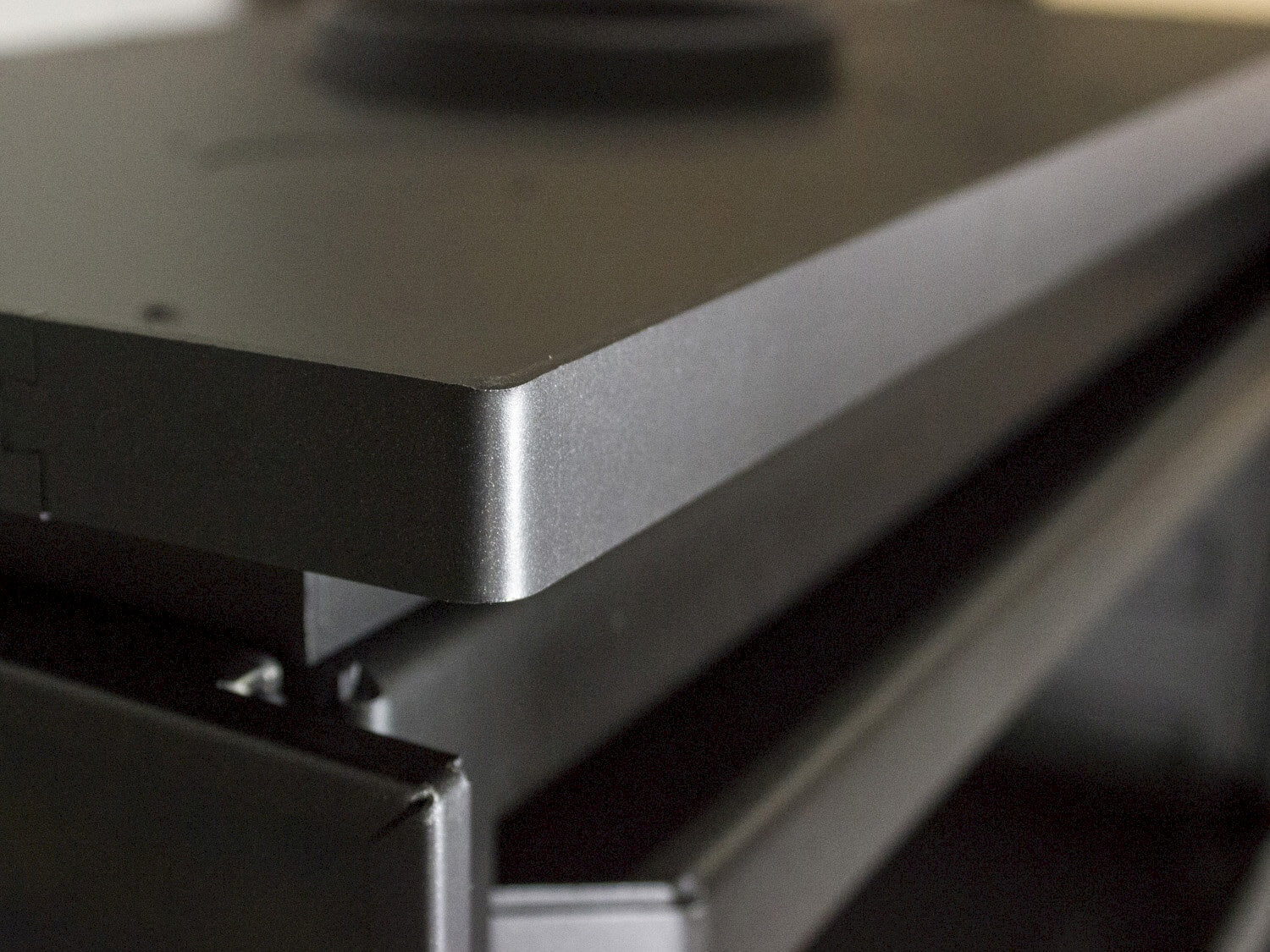

- Exterior material: Steel

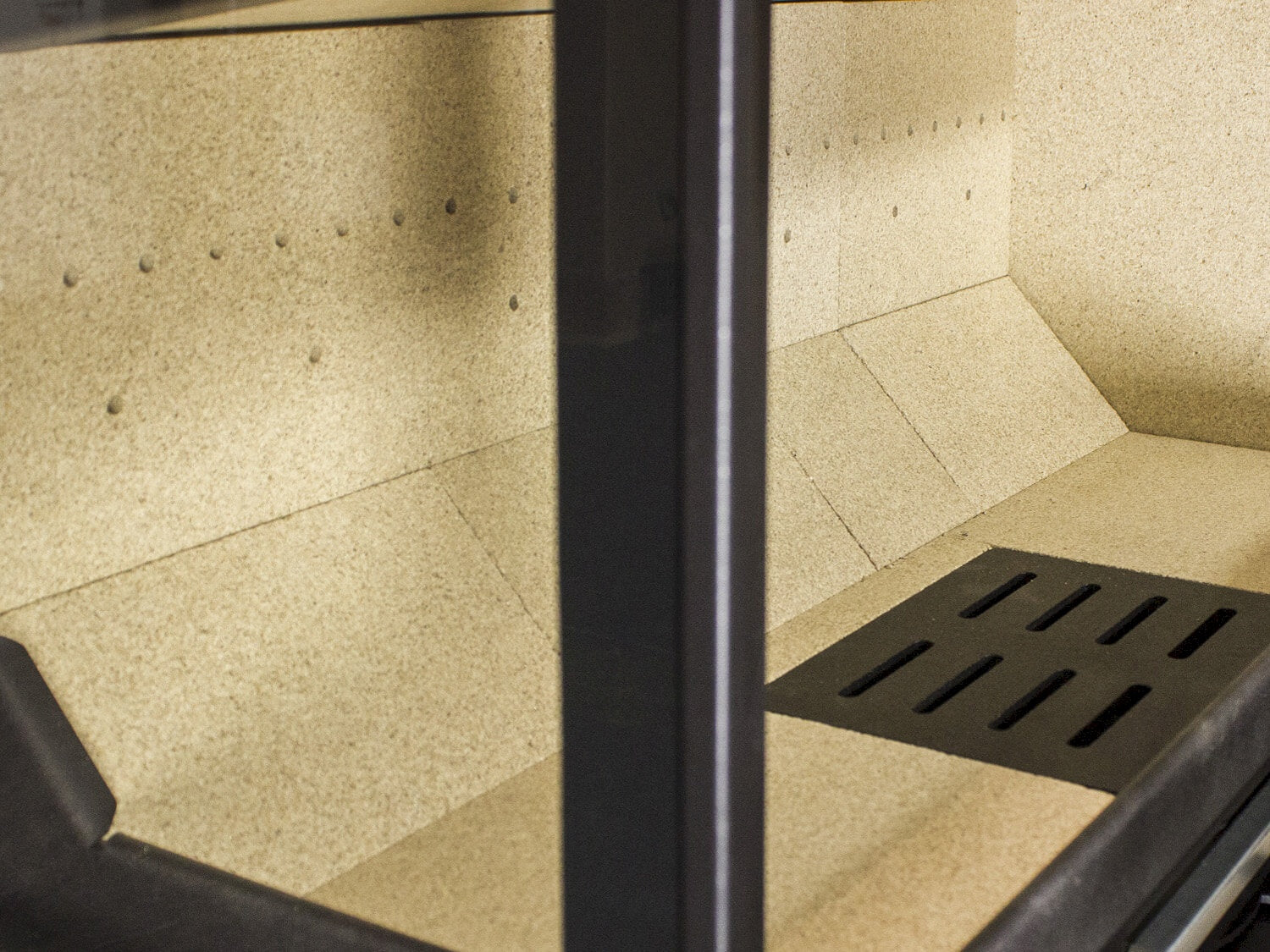

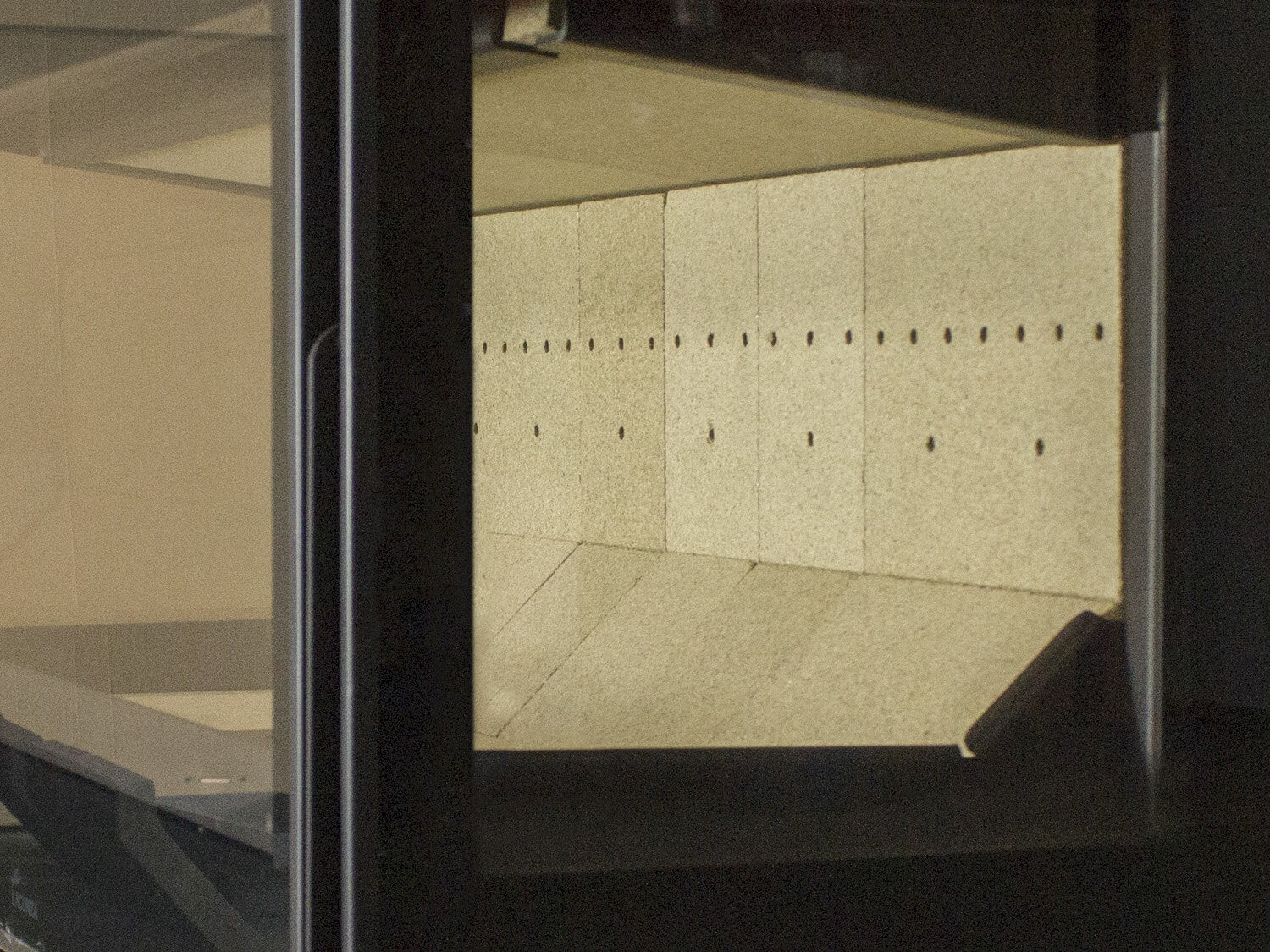

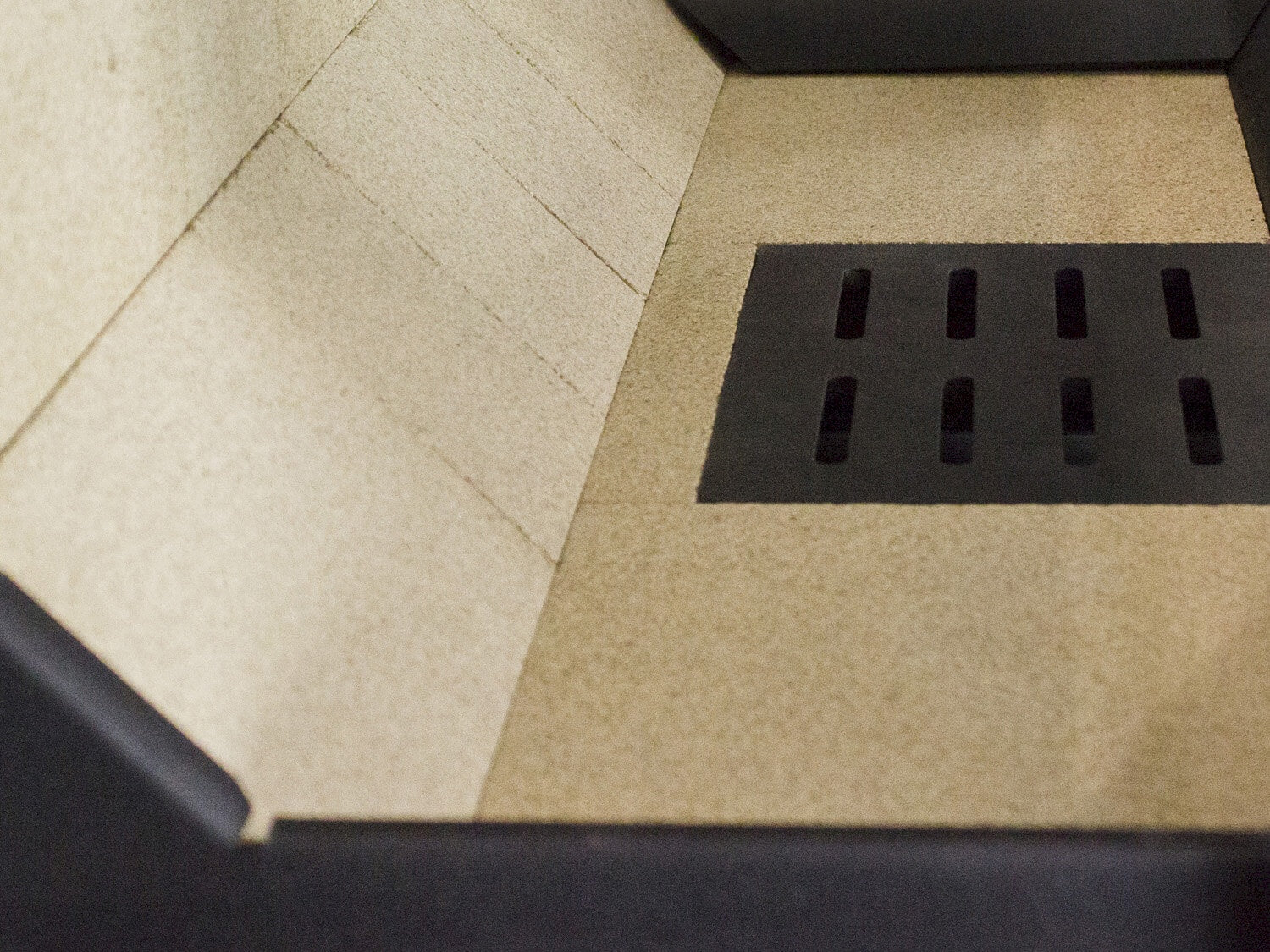

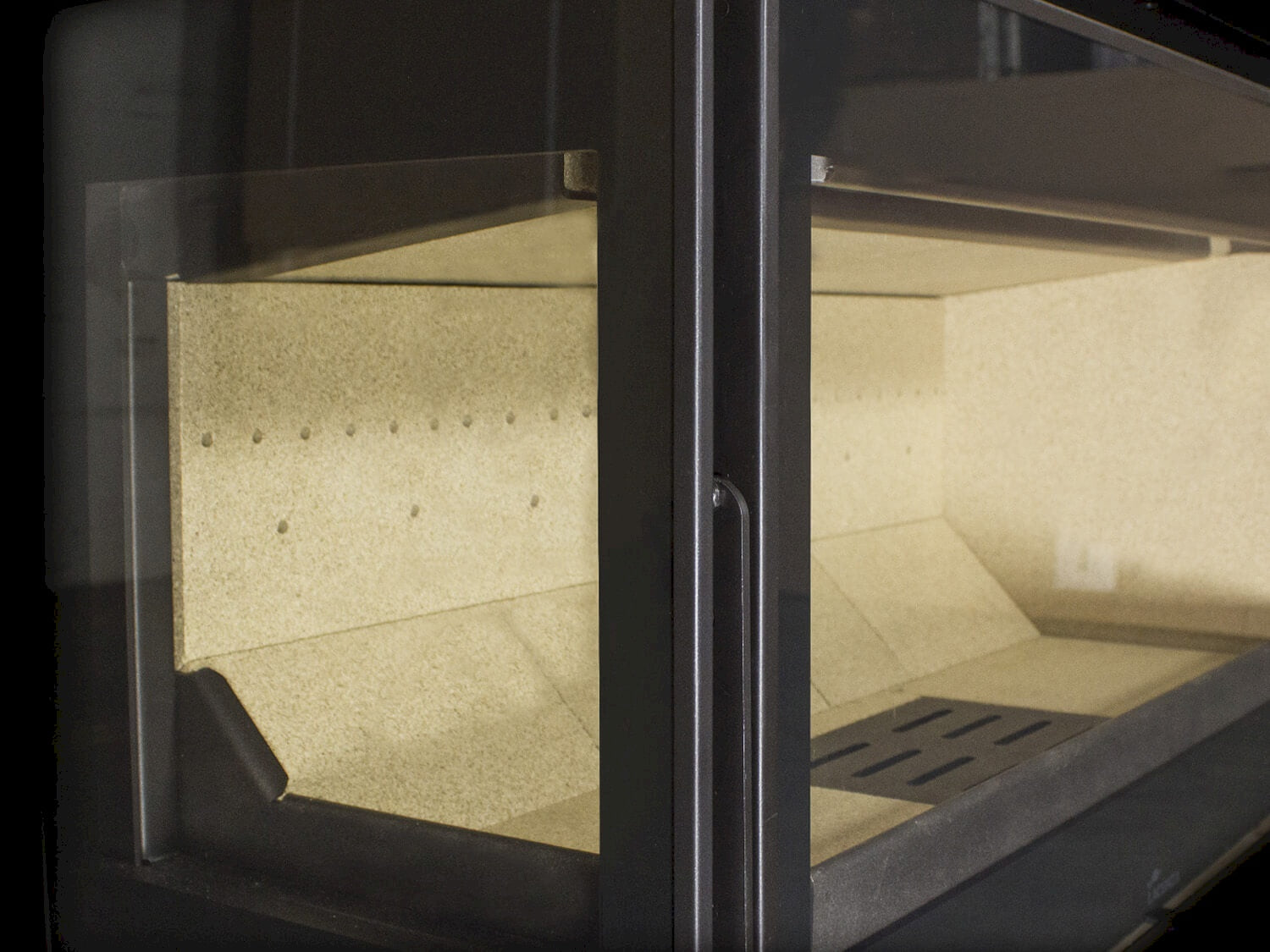

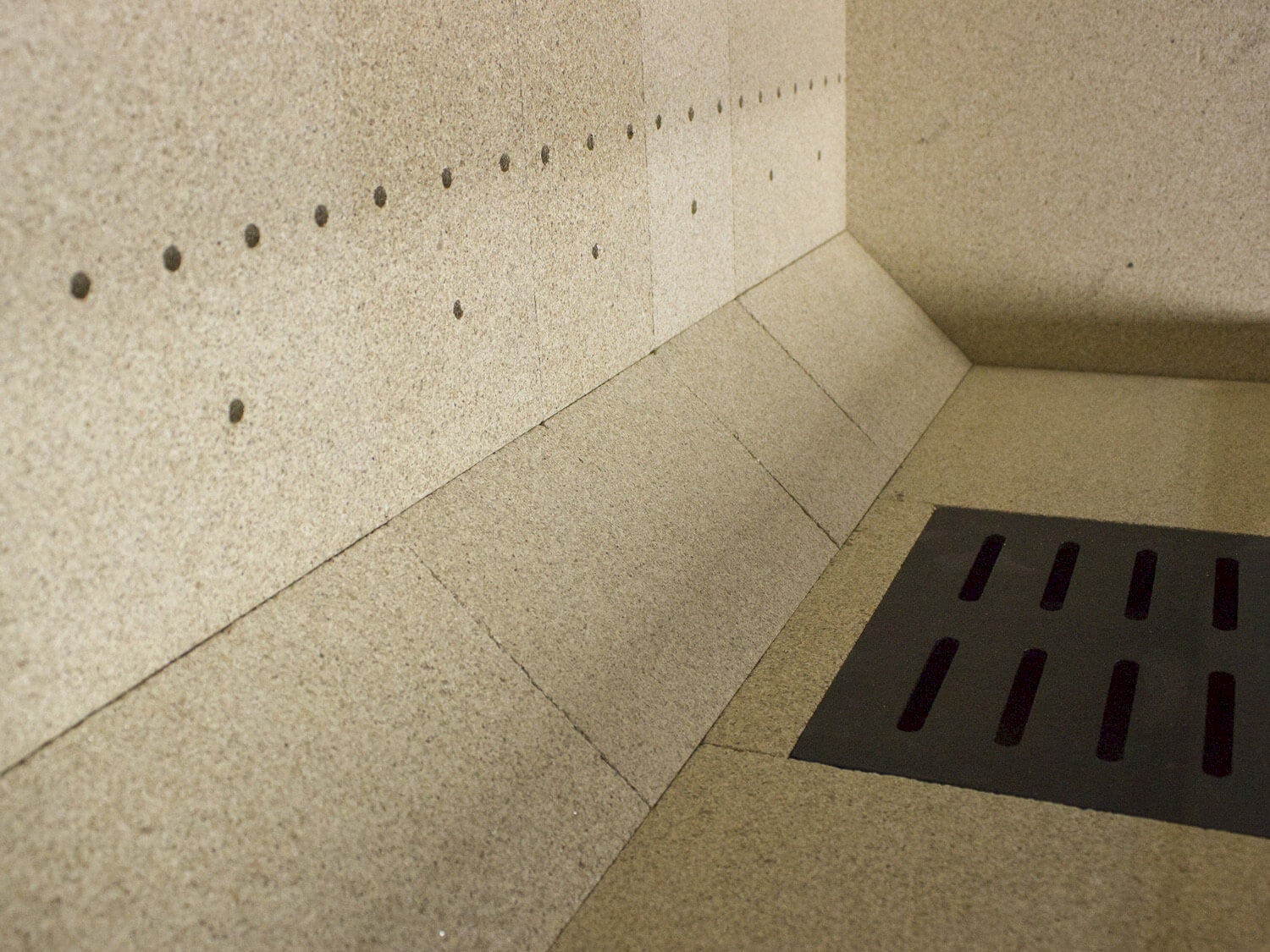

- Firebox lining: Vermiculite
- Glass: Front and both sides
- External air supply: Yes
- Features: Ventilation, Eolo, Easy Fire Control, Perfect Combustion, double combustion, glass cleaning system, cleaning access, Silence Mode
- VillaHome SKU: KAM-3045200007
- CE marking: Yes. Documentation: declaration of performance (DoP)

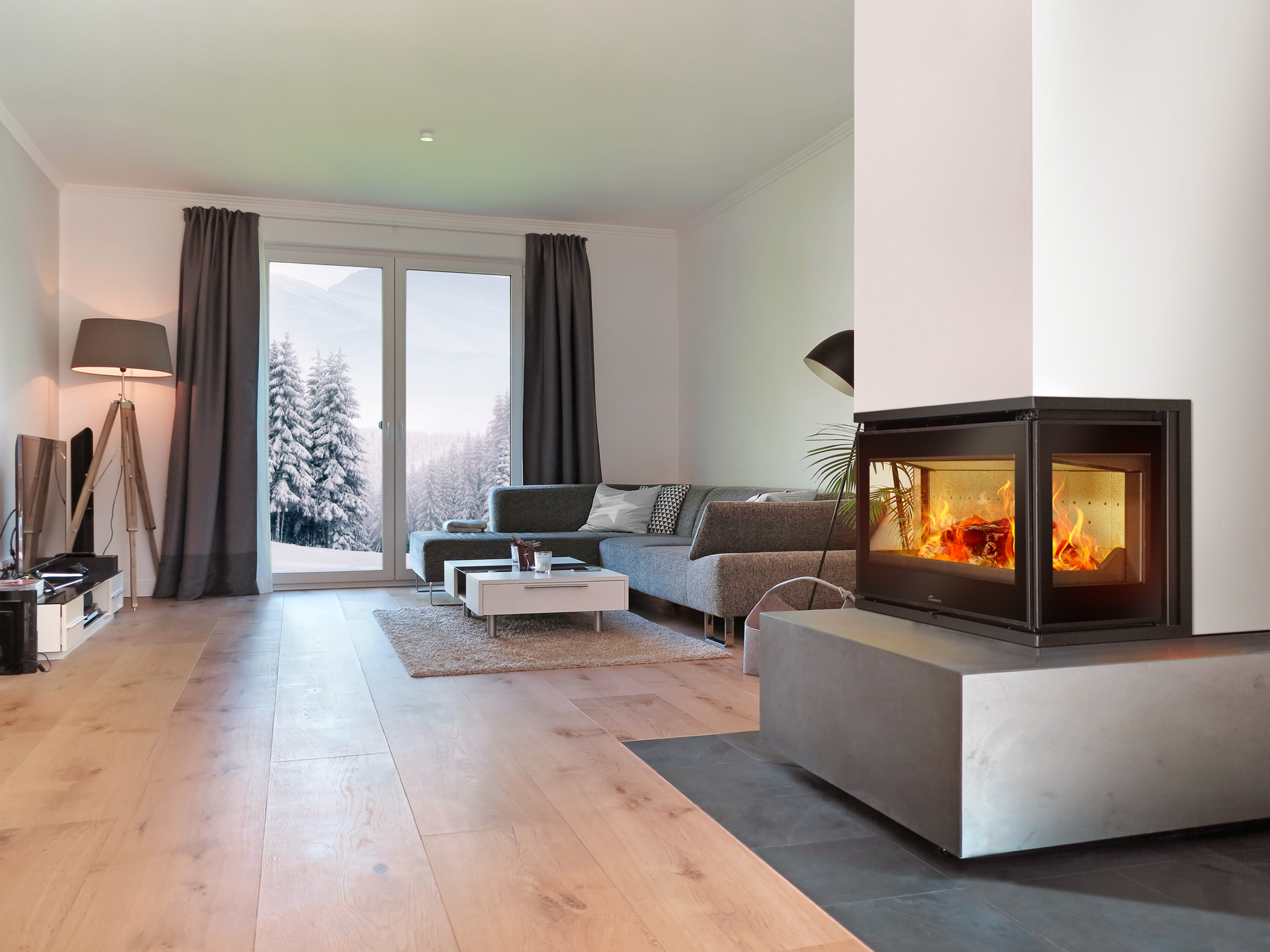

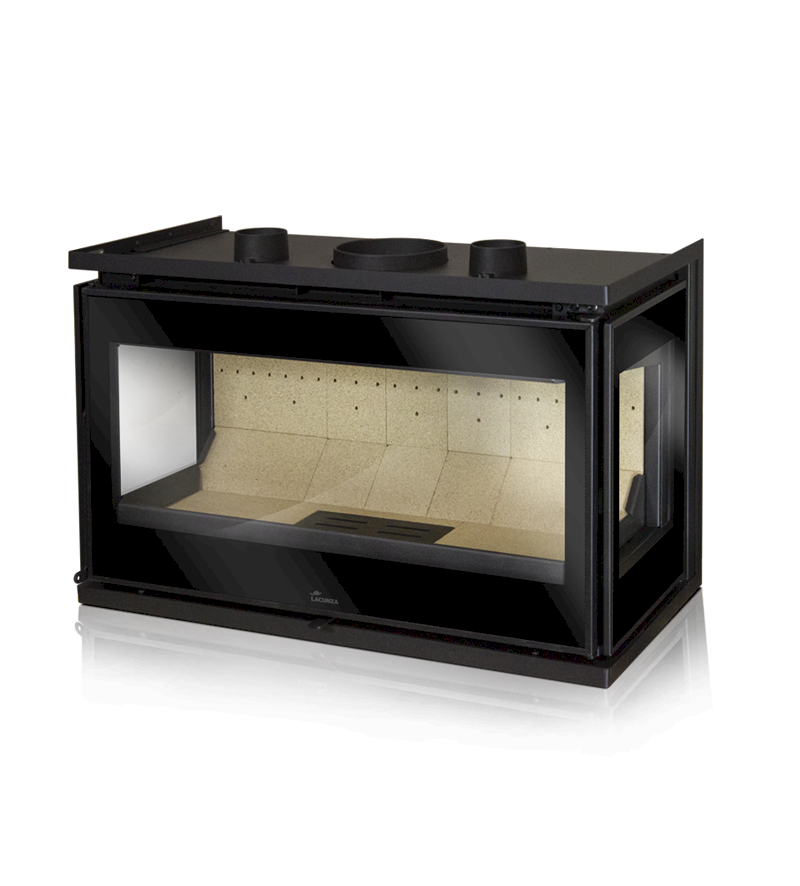

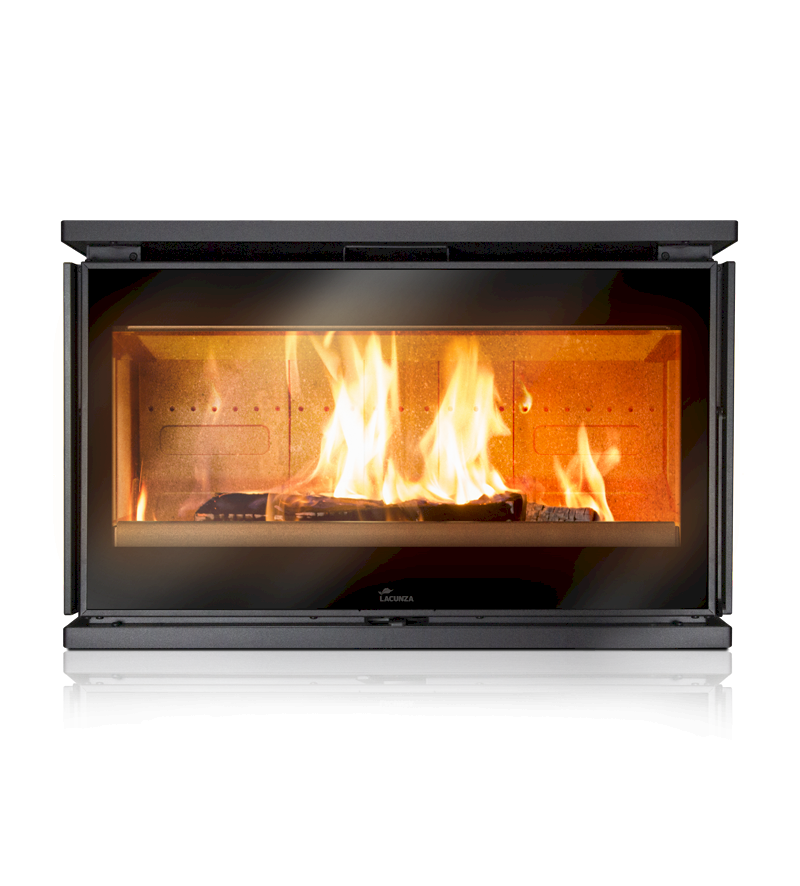

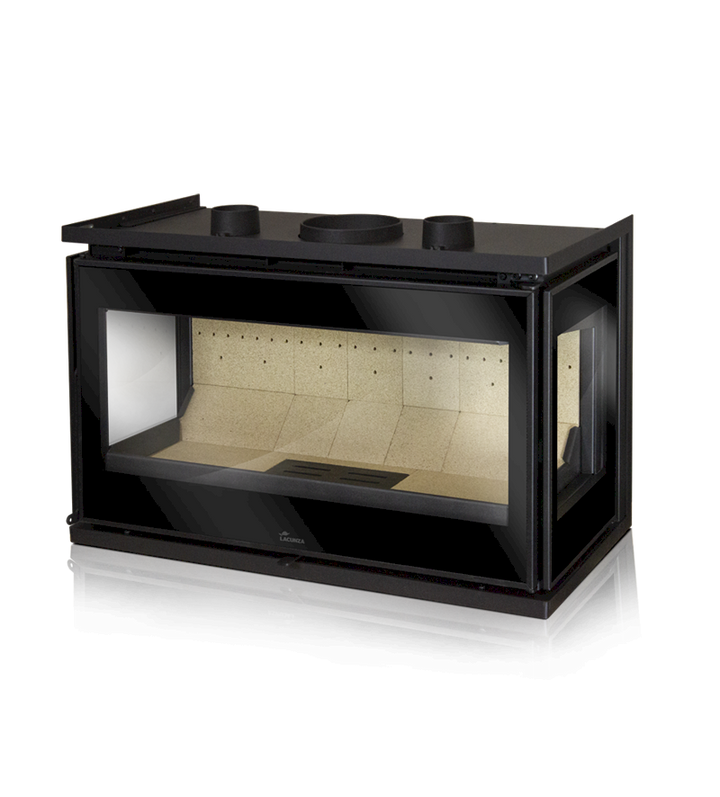

The Lacunza Adour 800 CLID is the widest three-sided model in the Adour family and features glass at the front and on both sides. The 800 mm wide body gives the flames greater visual width than the Adour 600 and 700 CLID and makes the firebox clearly visible even from the side.
The insert has external combustion air, adjustable ventilation, Silence Mode and Easy Fire Control. The firebox accommodates logs up to 70 cm and the model has a nominal output of 10 kW.
The three-sided glass makes the model most appealing when the firebox is to be viewed from several places in the room, but it also places higher demands on the planning of the surround, safety distances and clear zones around the side glass. The Adour 800 CLID is therefore a model where the installation drawing and ventilation openings should be finalized before the installation begins.
Installation
Installation must be carried out in accordance with the Lacunza Adour CL manual and applicable regulations. For the Adour CL family, the manual specifies 800 mm to combustible materials above, in front, and to the sides, and 400 mm behind. The support and the finished surround must be designed to accommodate the weight of the insert and the installation solution.
Installation and ventilation
The surround must be ventilated and must not trap heat. Lacunza specifies a minimum of 1000 cm² of fresh air opening below the insert and at least 1250 cm² of hot air outlet above. External combustion air can be connected with an Ø80 mm non-closing duct; for a straight duct, the manual specifies up to 12 m, with deductions for bends and other components.
Combustion
Use dry wood and follow the manual's recommended wood quantity and air control. The three glass surfaces and the surround become hot during operation; keep safety distances clear and open the door slowly when adding wood.
Care and service
Allow the insert to cool before cleaning. Clean the glass, ash compartment, air intakes, and flue passages regularly, and handle the vermiculite lining with care. Keep the turbine's airways clear and leave sufficient service access in the surround for chimney sweeping and maintenance.
First firing
Start with smaller amounts of wood and increase the temperature gradually so that the firebox, seals, and surface treatment are seasoned in a controlled manner. Ventilate the room if materials or paint emit odors during the first firings.
