- Product type: Fireplace insert
- Series/model: Adour 1000
- Fuel: Wood
- Variants at VillaHome: With turbofan / without turbofan
- Nominal output according to current manual: 11.2 kW
- Output range: 8–14 kW
- Efficiency: 78 %
- Energy class: A
- CO emissions: 0.05 %
- Heating volume: 249 m³
- Heating area: 100 m²
- Dimensions (W × H × D): 990 × 490 × 400 mm
- Firebox (W × H × D): 904 × 235 × 290 mm
- Weight: 111 kg
- Max log length: 90 cm
- Flue connection: Ø150 mm
- Exterior material: Steel
- Firebox lining: Vermiculite
- External air supply: Yes
- Features: Double combustion, Easy Fire Control, Extra Clean Glass, Cleaning Access, Silence Mode on the version with turbine
- CE marking: Yes. Documentation: declaration of performance (DoP)
Versions and item numbers
| Version | Item number | VillaHome SKU |
|---|---|---|
| With turbofan | 3046200000 | KAM-3046200000 |
| Without turbofan | 3046200001 | KAM-3046200001 |

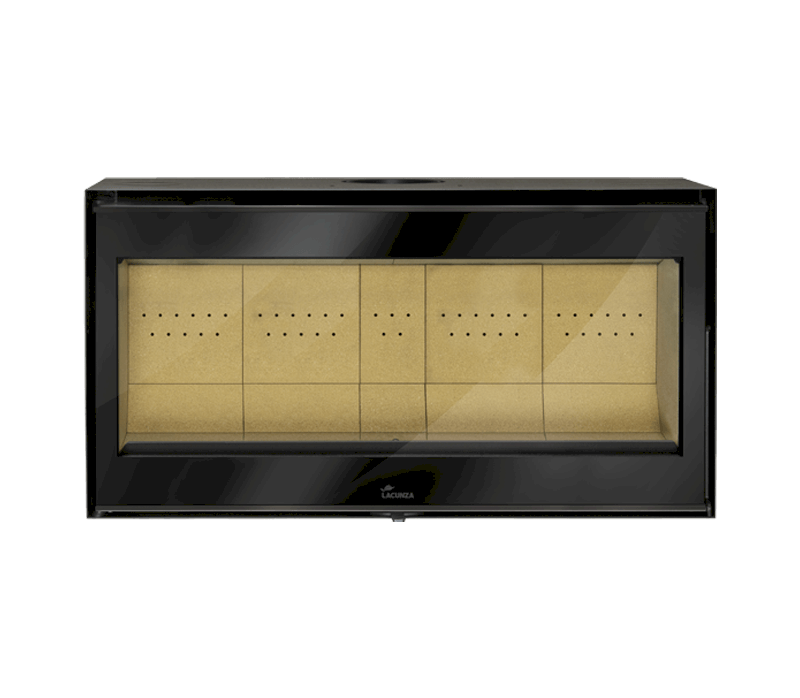

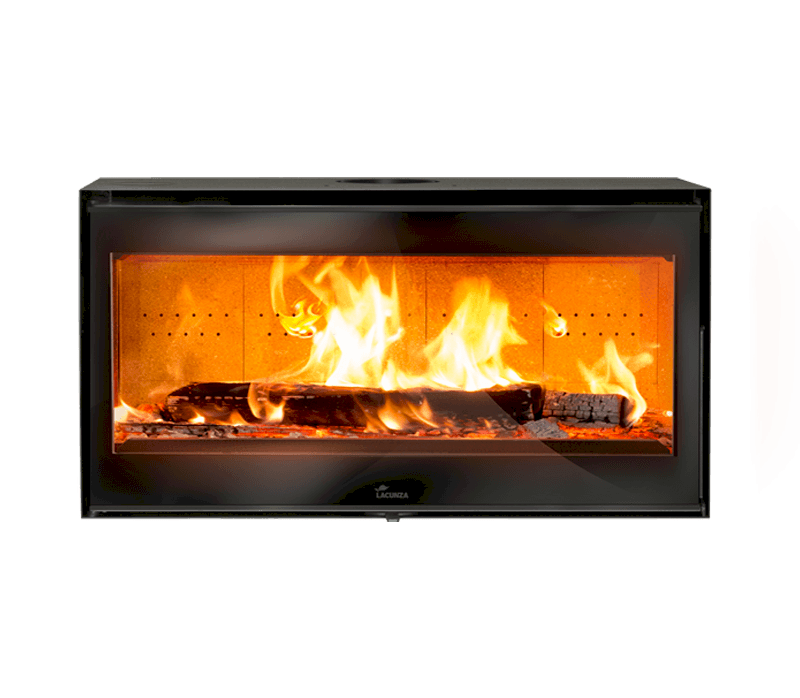

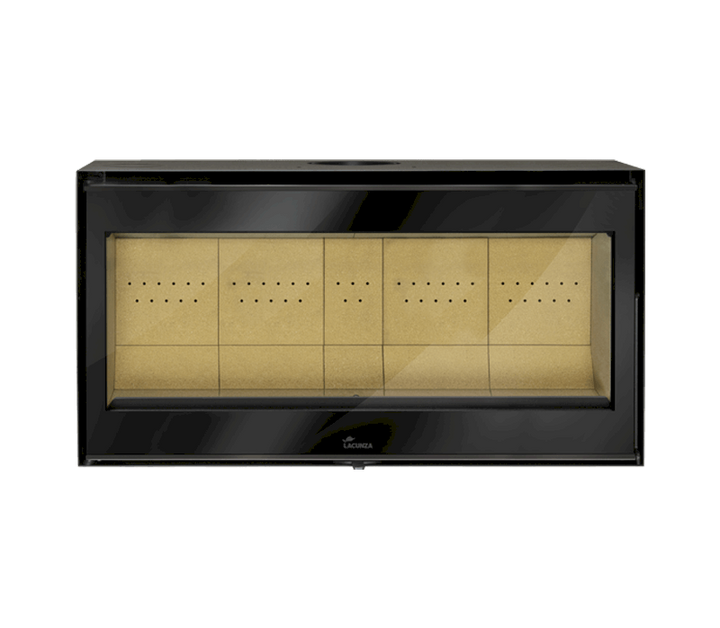

The Lacunza Adour 1000 is the widest front-view standard model in the Adour series. The 990 mm wide insert and the fireplace for wood logs up to 90 cm provide a clear panoramic view of the flames in a custom-built surround.
The model is available with a turbofan for active heat distribution or without a turbine and combines external air supply with double combustion, Easy Fire Control and Cleaning Access for servicing and cleaning.
The Adour 1000 requires careful installation planning. The manufacturer's system uses air openings below and above the insert to transfer heat out of the surround, while the external air supply and Ø150 mm flue connection need to be planned before the installation is enclosed.
Installation and safety clearances
The Adour 1000 must be installed in accordance with the Lacunza manual and applicable Swedish regulations. The current manual specifies particular clearances for the wide 1000 model: 750 mm above, 1,500 mm in front, and 250 mm to the sides and behind to combustible materials. Also ensure that the support surface can withstand the combined weight of the insert and the surround.
Surround and airflow
Build in the insert with the prescribed convection openings; Lacunza specifies at least 1,000 cm² of air intake below and 1,250 cm² of hot air outlet above. Keep the openings clear and plan the external combustion air and chimney connection before closing the surround. On the model with a turbine, the electrical connection and fan service must also be accessible.
Choice of fan version
The version with a turbine fan provides active air circulation and can be controlled with Silence Mode. Choose the version without a turbine if you do not want the fan-controlled system. Planning of the convection openings is required regardless of the version.
Burning and maintenance
Use dry, untreated wood and follow the manual's instructions for wood quantity and air regulation. Allow the insert to cool before cleaning the glass, firebox, and ash compartment. Regularly check the deflectors, seals, smoke paths, and air intakes, and maintain access for chimney sweeping.
